I'm rebuilding the carb on my W4 but the diagram that came with the kit doesn't show all the parts. Does anyone know where I can find a diagram for it?

   / Zenith 1" diagram #2
Do you have the model number off the carb? I have some literature on them.

   / Zenith 1" diagram #3
I found the repair manual for it. It cover Zenith and Marvel Sheblar carbs used on tractors. I will get it to you tomorrow.

   / Zenith 1" diagram #4

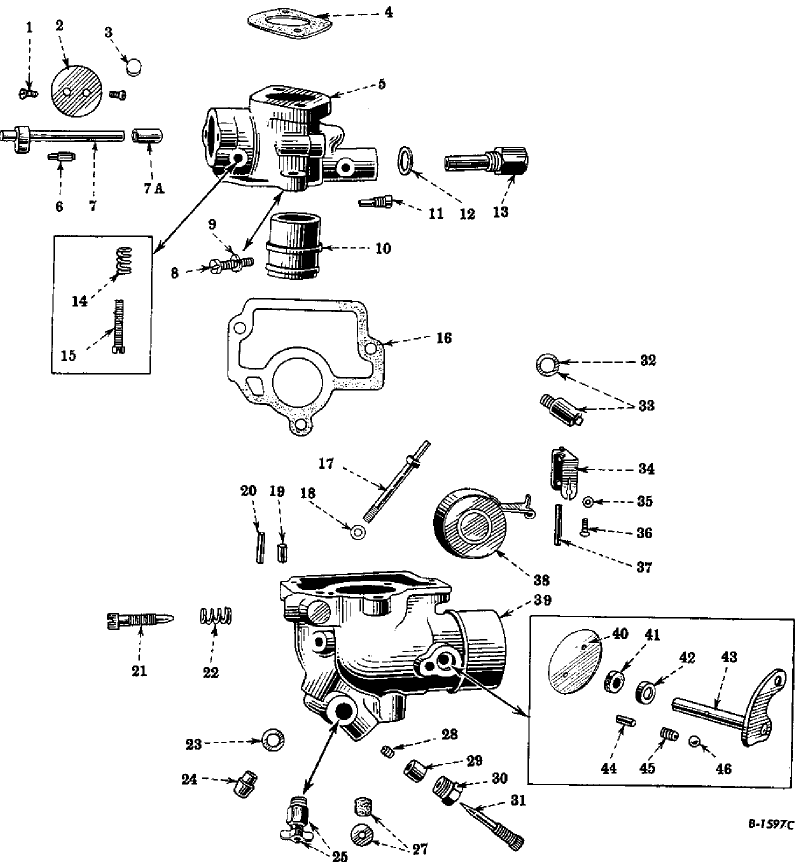

Here is an exploded view of an H carb.

Farmall H carb.gif

   / Zenith 1" diagram
  • Thread Starter
#5
Thanks DJ. That should be all I need to get it back together. Much appreciated

   / Zenith 1" diagram #6
DanB53 said:
Thanks DJ. That should be all I need to get it back together. Much appreciated

Does that meen it will be redy to start? Just in time for Thanks Givin' weekend.
