Iseki TA417 Manual?

[robhely]

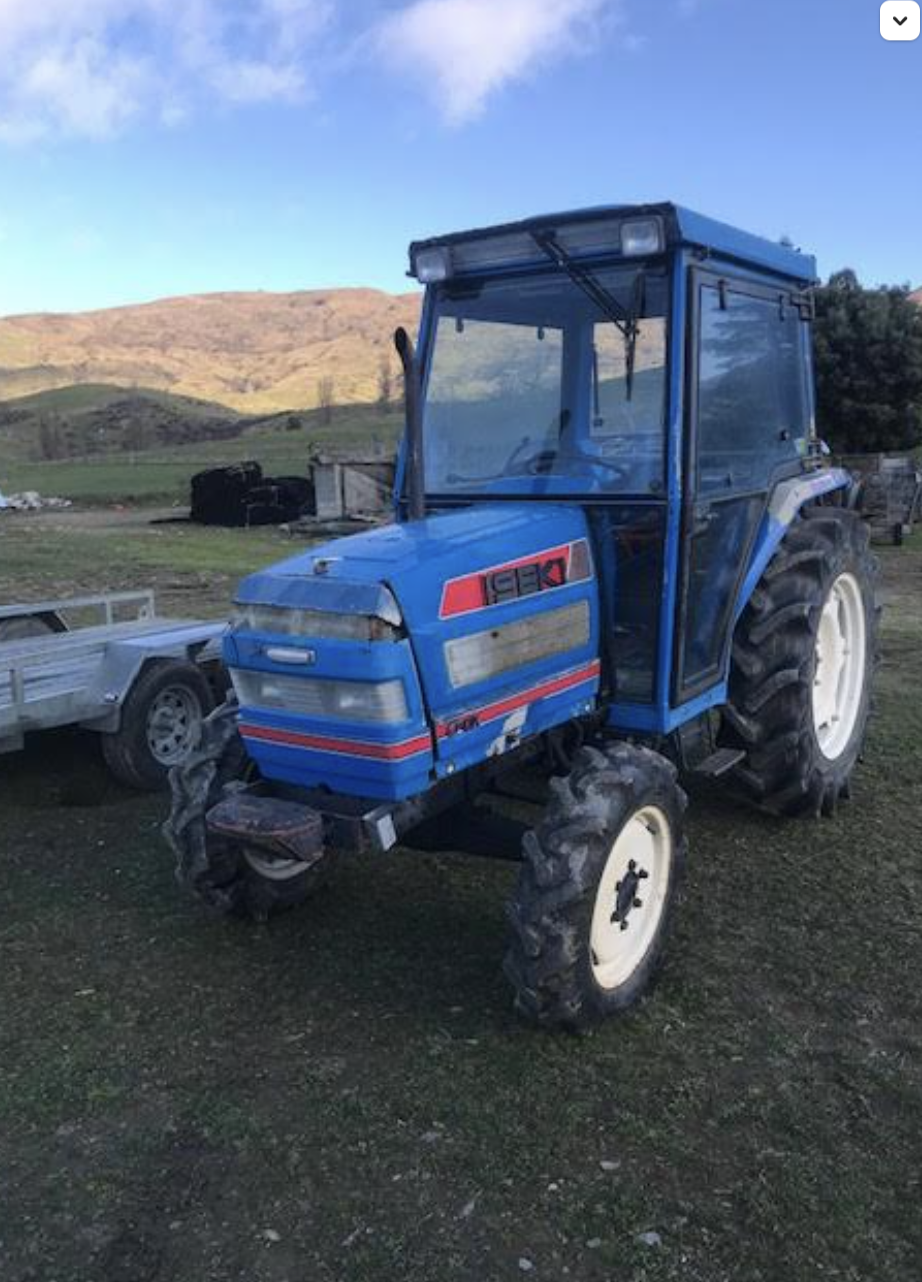

Hi All, I'm trying to find a manual in english for an

Iseki TA417. All labelling on the tractor is in Japanese and whilst I've translated some of it and got the main controls sorted out, I can't figure out the controls for attachments on the three point linkage.

If anyone knows where I might be able to purchase a translated version of the manual (preferably with diagrams), that would be greatly appreciated.



[bmaverick]

Hi All, I'm trying to find a manual in english for an

Iseki TA417. All labelling on the tractor is in Japanese and whilst I've translated some of it and got the main controls sorted out, I can't figure out the controls for attachments on the three point linkage.

If anyone knows where I might be able to purchase a translated version of the manual (preferably with diagrams), that would be greatly appreciated.

Why not just read it in English for the engine operation.

https://www.enginesplus.co.uk/wp-co...-Instruction-Manual-In-Line-Pump-IDE-6051.pdf

https://dealers.doosanportablepower.com/emea/documents/Service/01_Portable%20Compressors/Engine%20Manuals/17_Isuzu/J%20SERIES%20TECHNICIAN%20GUIDE.pdf



[robhely]

Why not just read it in English for the engine operation.

https://www.enginesplus.co.uk/wp-co...-Instruction-Manual-In-Line-Pump-IDE-6051.pdf

https://dealers.doosanportablepower.com/emea/documents/Service/01_Portable%20Compressors/Engine%20Manuals/17_Isuzu/J%20SERIES%20TECHNICIAN%20GUIDE.pdf

Thanks, so they run a rebranded Isuzu engine in the Iseki tractor? This is great for the engine, but it would be good to have some info on operation of the external controls for attachments on the three point linkage.



[bmaverick]

Thanks, so they run a rebranded Isuzu engine in the Iseki tractor? This is great for the engine, but it would be good to have some info on operation of the external controls for attachments on the three point linkage.

I tried a few metadata searches on the web, nothing turned up for your explicit model. I bet it's in an OPS book for several models. If you know of an ebay link to the exact booklet online, I could look at the publication number and try again.

Metadata searches work so much better than regular search engines leading a person down rabbit holes and FAKE manual websites. I don't get why those are out there. Just don't fall for the stupid tricks.



[Quarryscapes]

Have you tried something like google lens to translate the labels with your phone?

There's a good chance it's made from most of the same bits as the TA525/530 whose owener manual can be downloaded from Iseki UK dropbox: TA525-530-537-538-545



[robhely]

I tried a few metadata searches on the web, nothing turned up for your explicit model. I bet it's in an OPS book for several models. If you know of an ebay link to the exact booklet online, I could look at the publication number and try again.

Metadata searches work so much better than regular search engines leading a person down rabbit holes and FAKE manual websites. I don't get why those are out there. Just don't fall for the stupid tricks.

Thanks again, I didn't try an metadata search. I'd be happy to pay for the manual if I could find it available, but the only thing I could find on ebay was for the "BOLENS ISEKI Tractor Models TA525F TA530 Farm Owner MANUAL". Not sure what the similarities and differences between the 400 and 500s are.



[Quarryscapes]

I have a TA525F if you want pics of anything



[robhely]

Have you tried something like google lens to translate the labels with your phone?

There's a good chance it's made from most of the same bits as the TA525/530 whose owener manual can be downloaded from Iseki UK dropbox: TA525-530-537-538-545

Thanks so much, I'll have a good read over this and see if I can find info on the controls I can't figure out.



[robhely]

Have you tried something like google lens to translate the labels with your phone?

There's a good chance it's made from most of the same bits as the TA525/530 whose owener manual can be downloaded from Iseki UK dropbox: TA525-530-537-538-545

Lots of similarities in the manuals, we've learnt a lot.

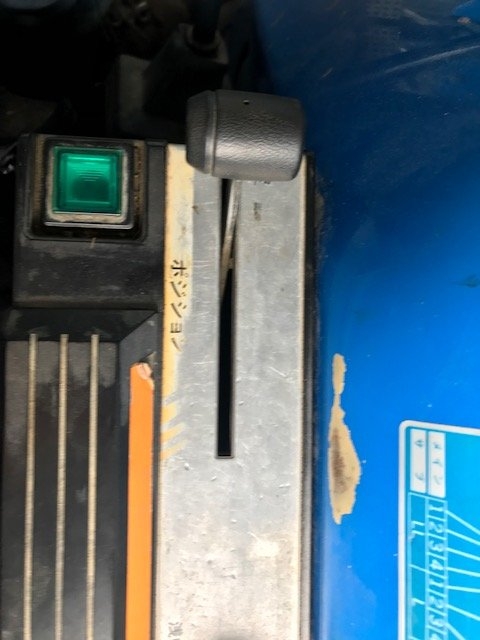

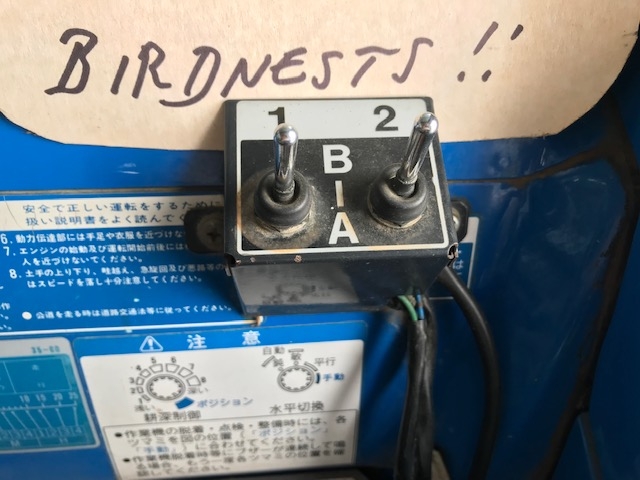

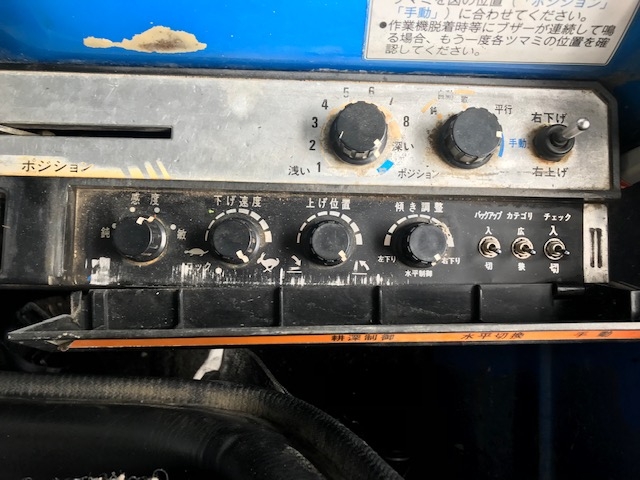

Still a bit confused by the controls in the attached pics. The controls I think relate to the two rear mounting arms. Both arms raise and lower with the lever shown once the green button is pressed and the toggle switch at the aft end adjusts the RH arm using a separate hydraulic ram which is brilliant for lateral levelling. I’m assuming all the other knobs relate to automatic control of the height??? Why so many?



[Quarryscapes]

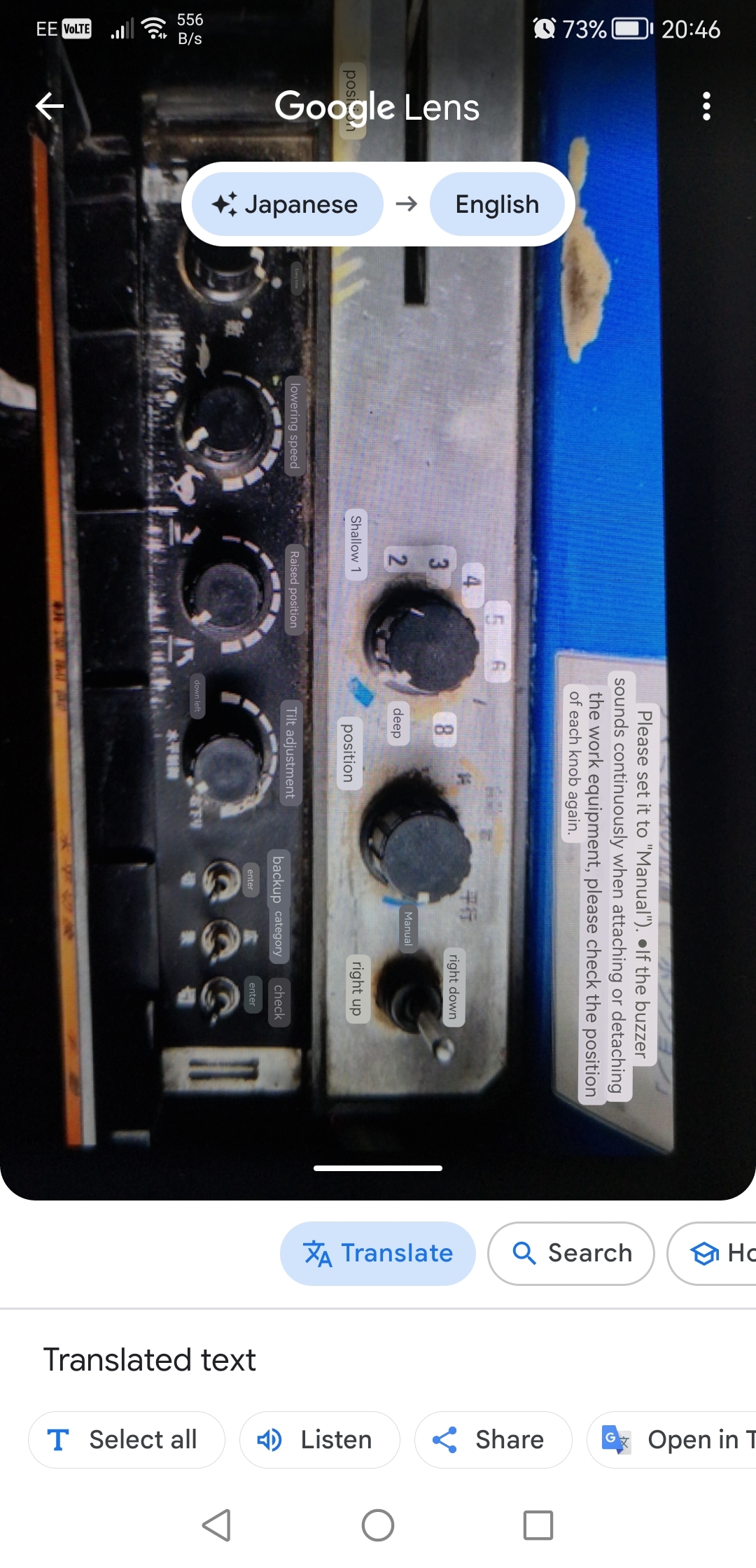

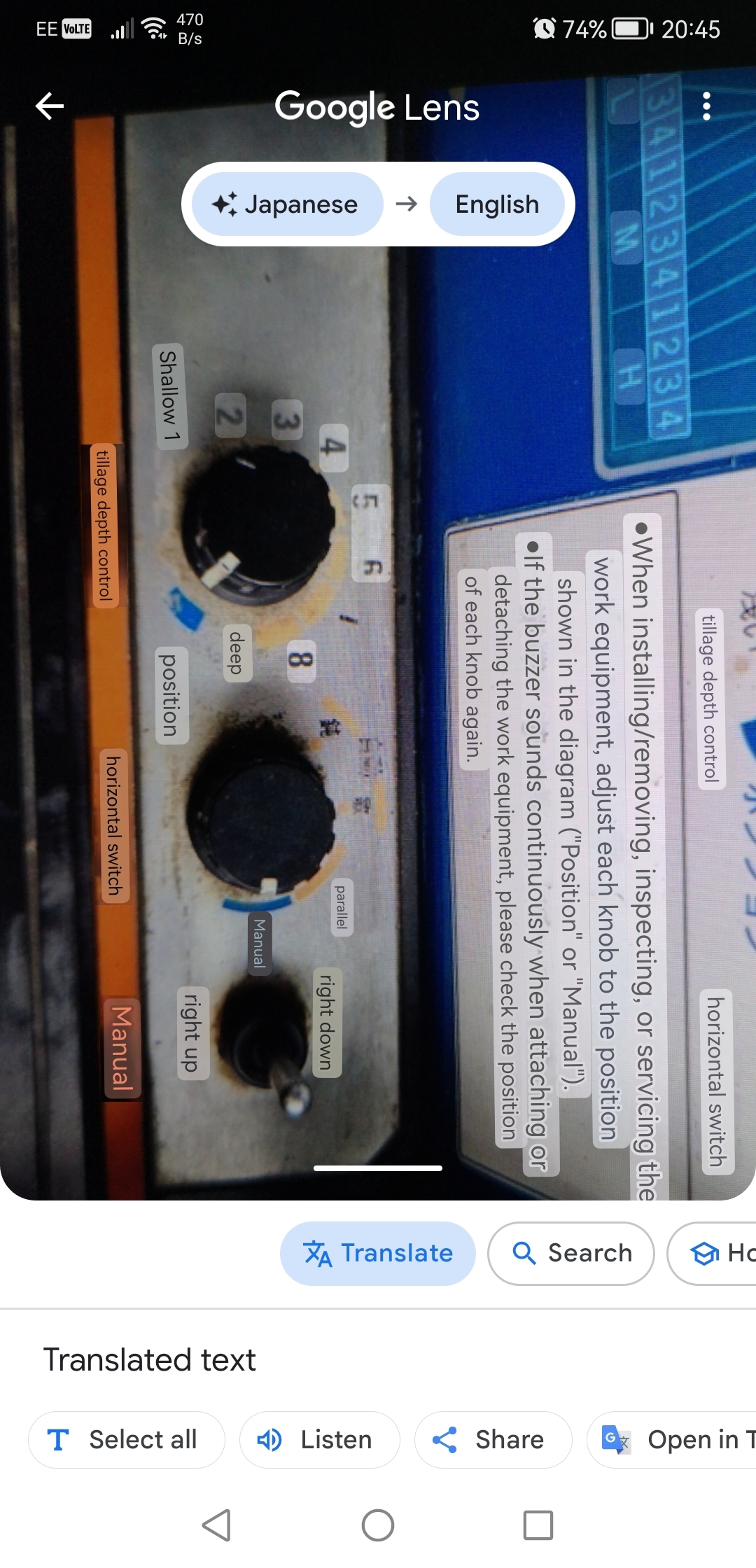

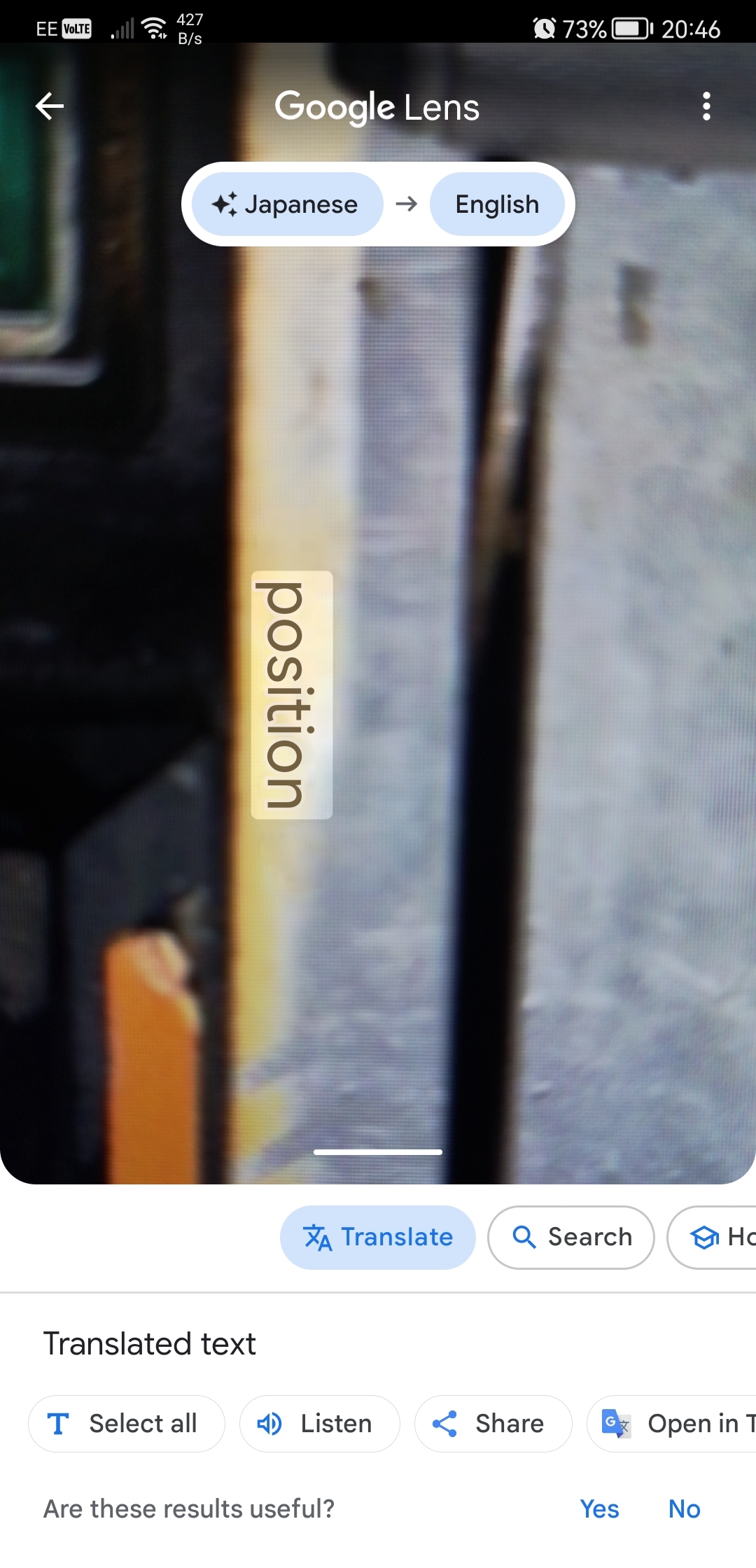

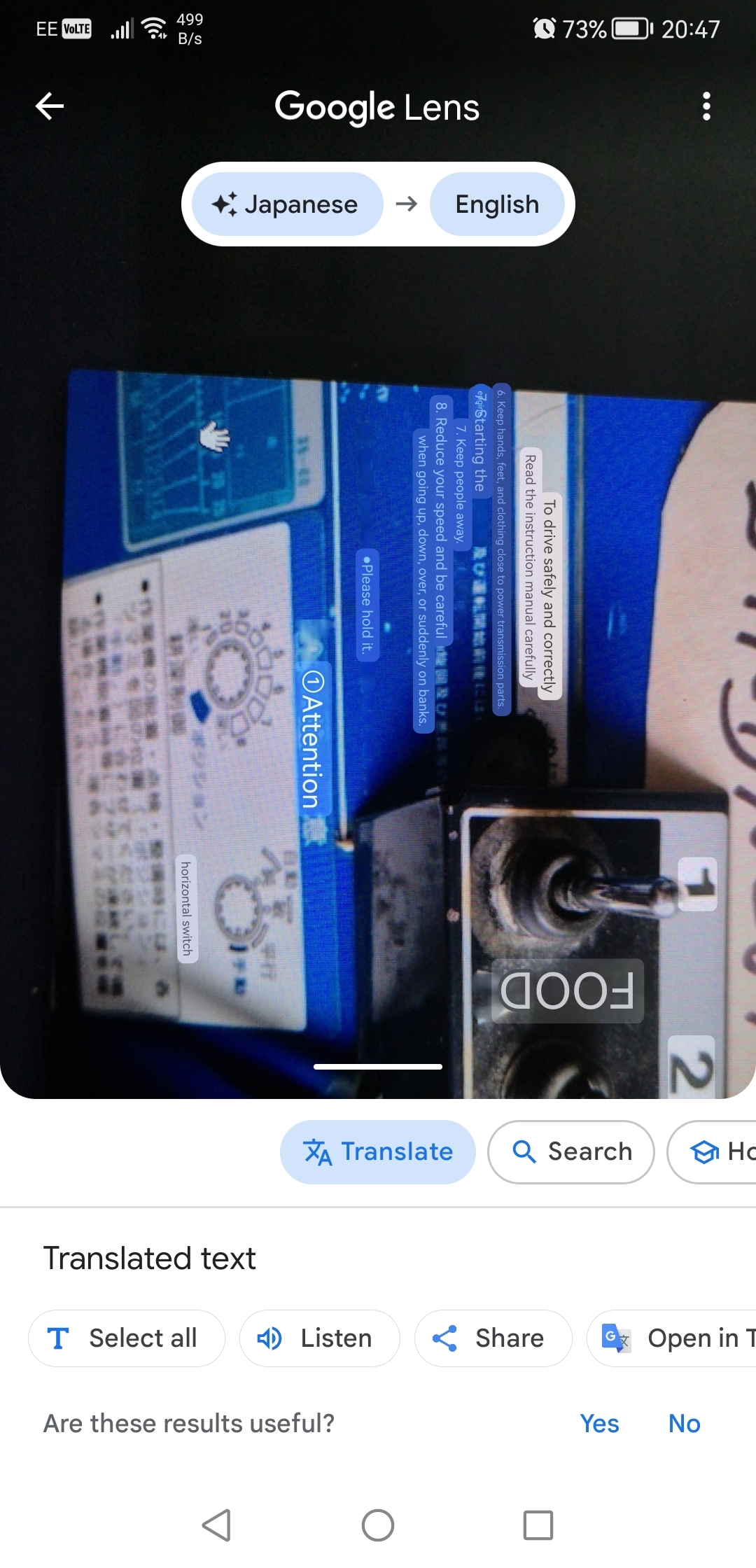

This is what google lens comes up with
