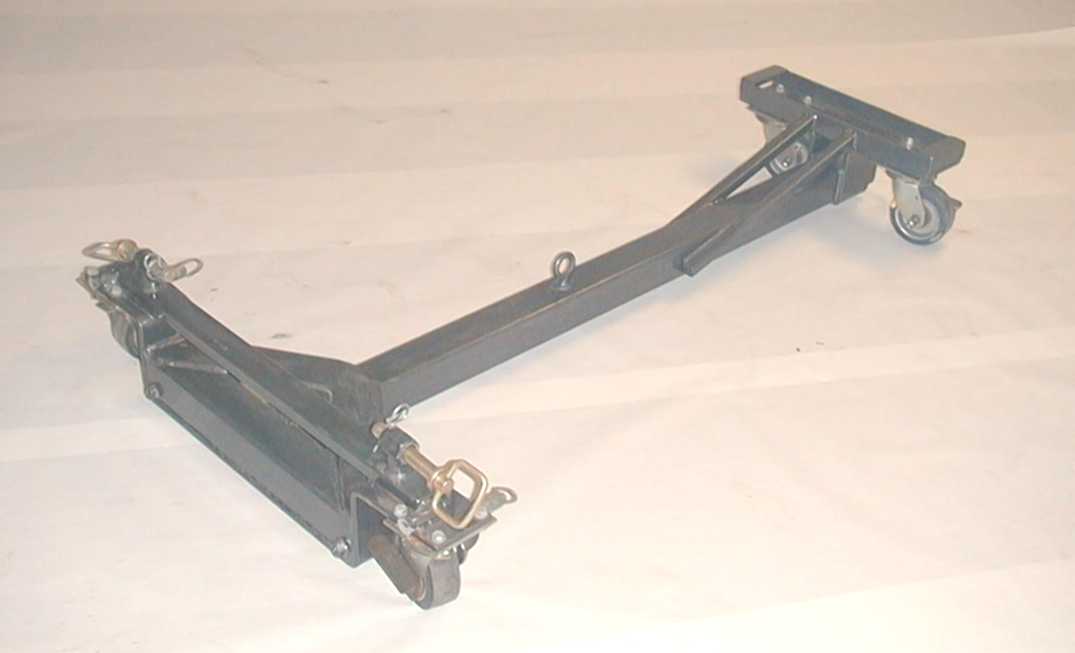

Here are a few picts of the dolley I made for my 4672 BH. When the BH is removed it takes up too much floor space,and in the winter I put tractor behind my two veh.. Have to pull truck out before using the tractor for snow, but it keeps everything out of the elements.
The dolley is made from scrap metal and the wheels also came from a junk yard.

Sorry about the number of pictures but sometimes the extras help someone see the details so they can make their own.


Doug T B1700 TLB


Attachments

  • 5-87958-dolly2.jpg
    24.6 KB · Views: 236
   / Backhoe Dolley
  • Thread Starter
#2
OP
T

therrien

Silver Member
Joined
Oct 23, 2001
Messages
141
Location
Salem New Hampshire
Tractor
Kubota B1700 TLB Now LX2610 ROPS

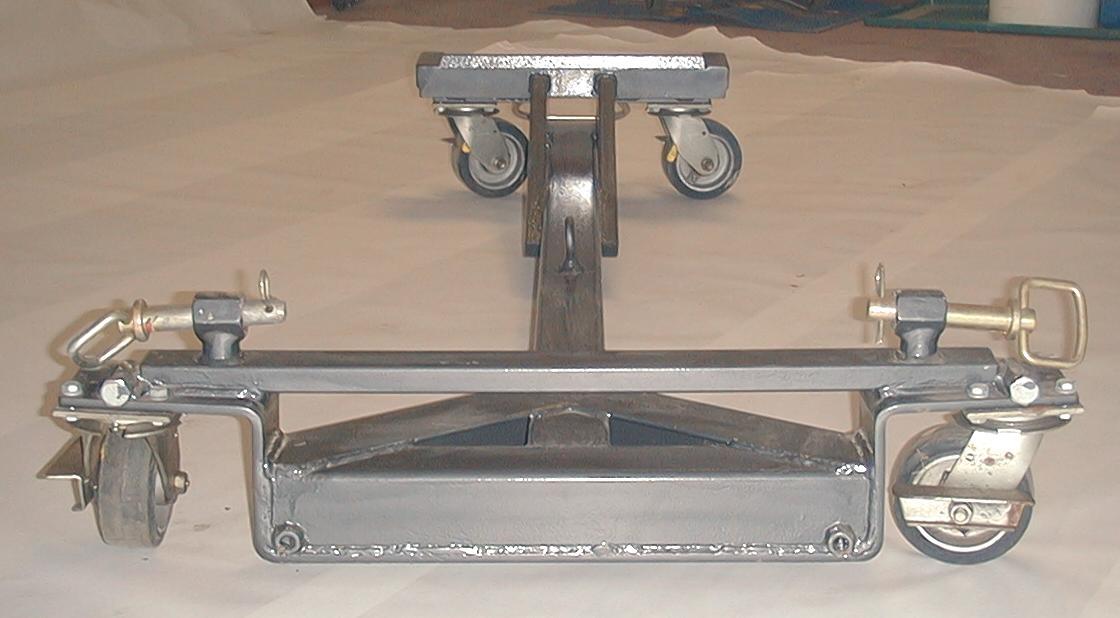

Picture 2
I'll try to make them smaller. Rookie

Doug T B1700 TLB


Attachments

  • 5-87961-dolly3.jpg
    63.1 KB · Views: 184
   / Backhoe Dolley
  • Thread Starter
#3
OP
T

therrien

Silver Member
Joined
Oct 23, 2001
Messages
141
Location
Salem New Hampshire
Tractor
Kubota B1700 TLB Now LX2610 ROPS

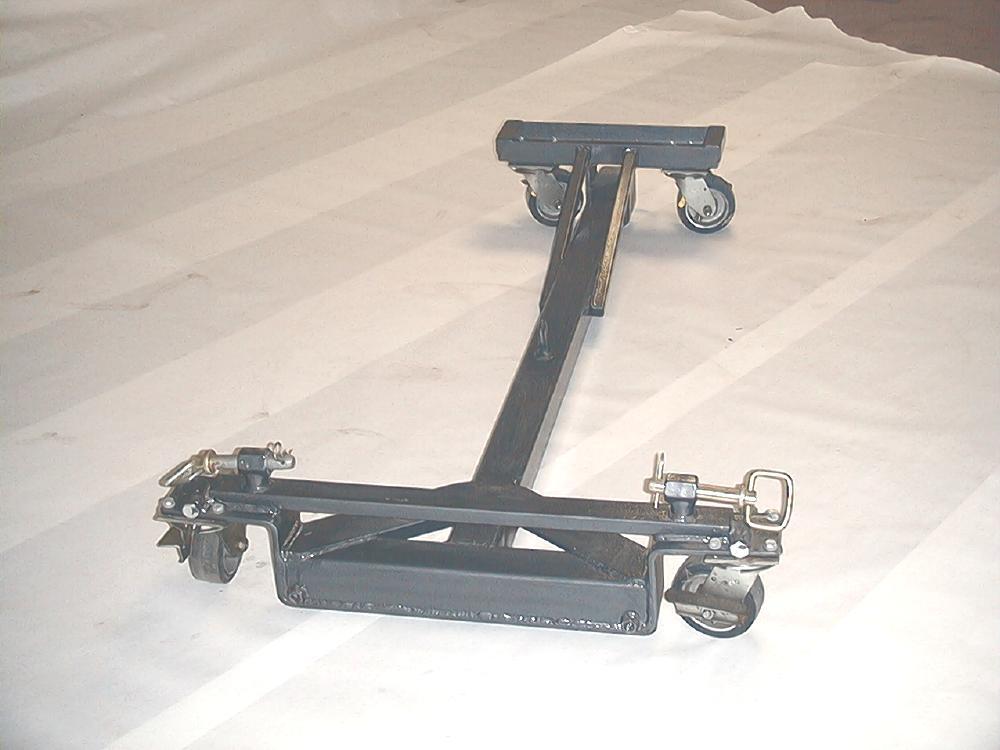

picture 3

Doug T B1700 TLB


Attachments

  • 5-87962-dolly4.jpg
    70.6 KB · Views: 209
   / Backhoe Dolley
  • Thread Starter
#4
OP
T

therrien

Silver Member
Joined
Oct 23, 2001
Messages
141
Location
Salem New Hampshire
Tractor
Kubota B1700 TLB Now LX2610 ROPS

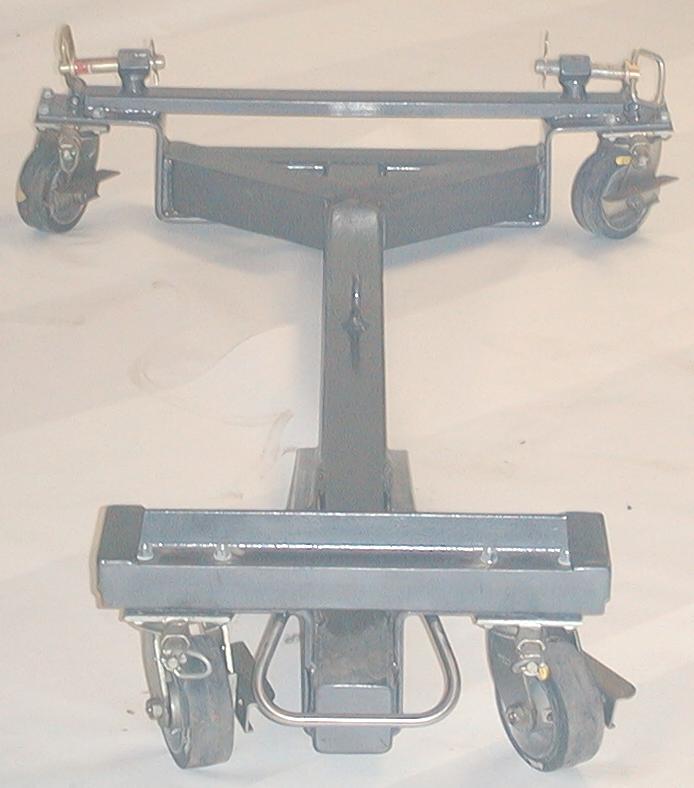

picture 4

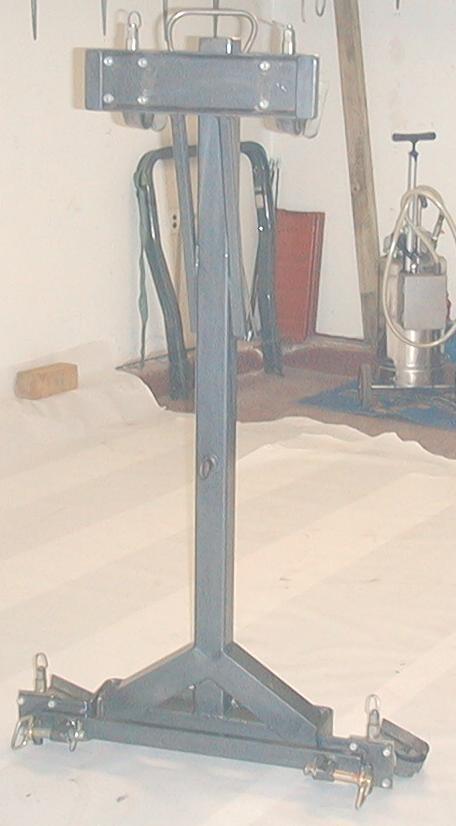

When not being used it can stand on end to save space.

Doug T B1700 TLB


Attachments

  • 5-87964-dolly5.jpg
    36.8 KB · Views: 155
   / Backhoe Dolley
  • Thread Starter
#5
OP
T

therrien

Silver Member
Joined
Oct 23, 2001
Messages
141
Location
Salem New Hampshire
Tractor
Kubota B1700 TLB Now LX2610 ROPS
picture 5

Doug T B1700 TLB


Attachments

  • 5-87966-dolly6.jpg
    48.2 KB · Views: 154
   / Backhoe Dolley
  • Thread Starter
#6
OP
T

therrien

Silver Member
Joined
Oct 23, 2001
Messages
141
Location
Salem New Hampshire
Tractor
Kubota B1700 TLB Now LX2610 ROPS

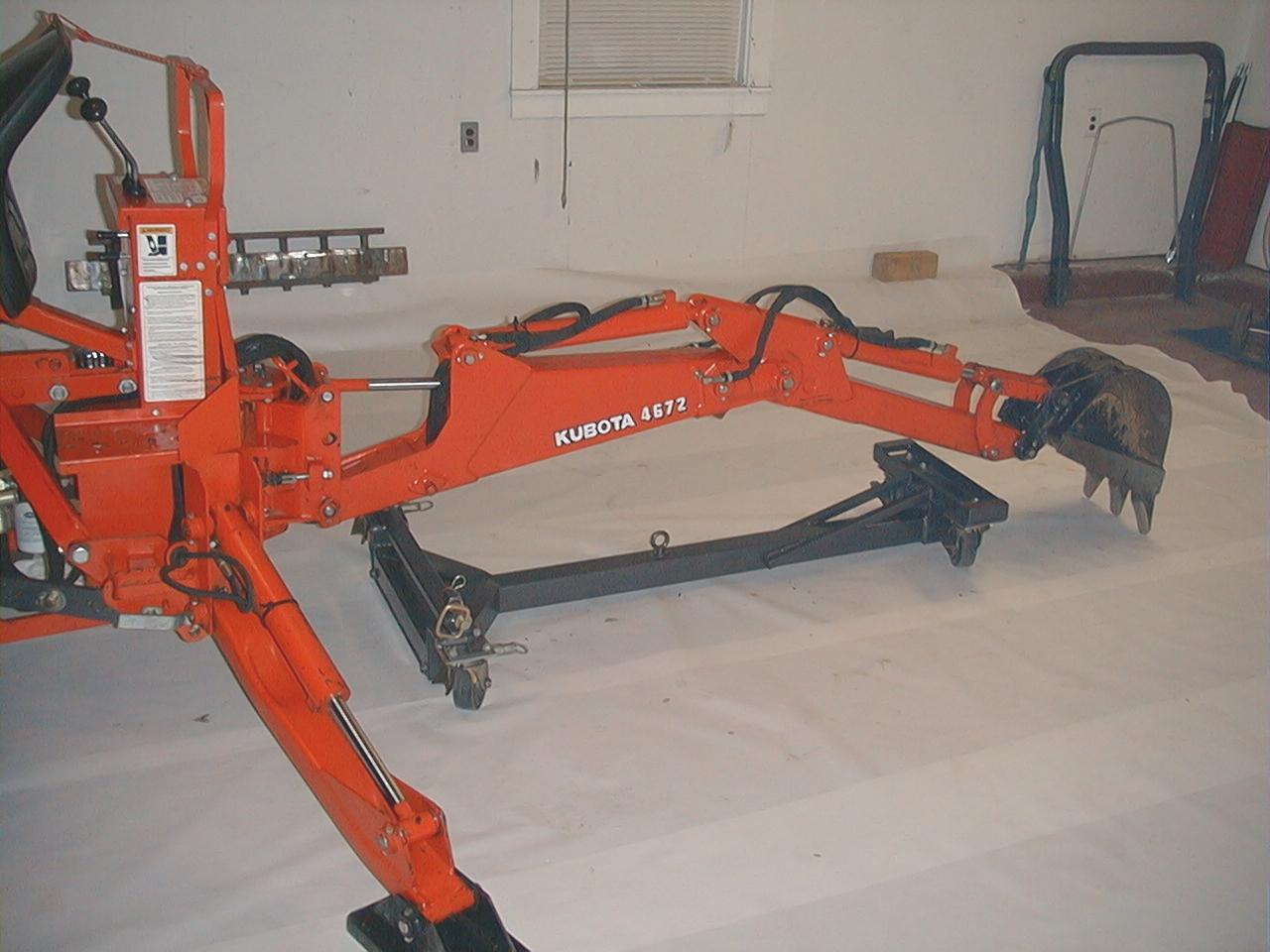

picture 6
Dolley reduces storage space quit abit.

Doug T B1700 TLB


Attachments

  • 5-87967-dolly7.jpg
    108.3 KB · Views: 178
   / Backhoe Dolley
  • Thread Starter
#7
OP
T

therrien

Silver Member
Joined
Oct 23, 2001
Messages
141
Location
Salem New Hampshire
Tractor
Kubota B1700 TLB Now LX2610 ROPS
picture 7

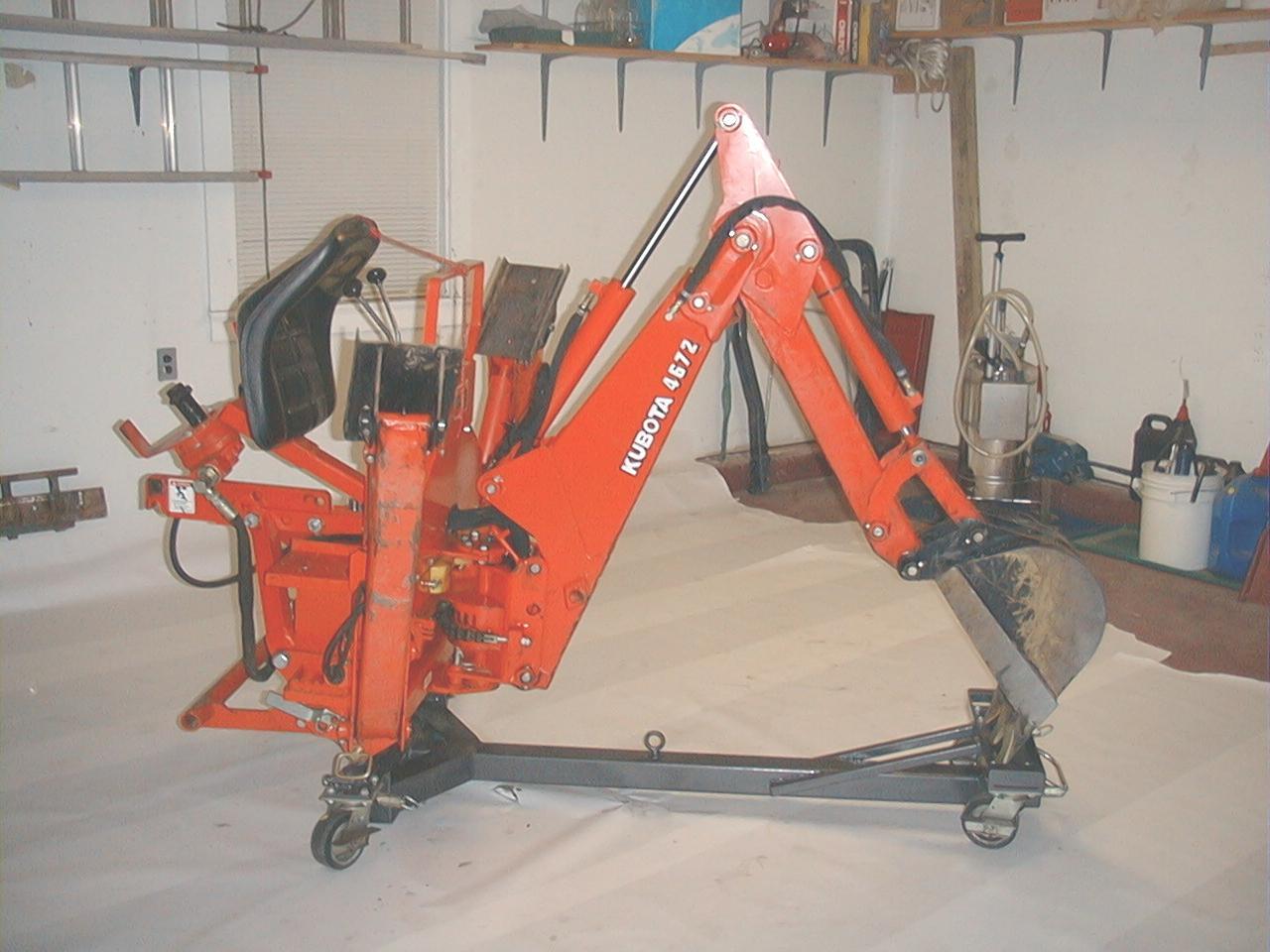

Here is the BH on dolley

Doug T B1700 TLB


Attachments

  • 5-87968-dolly8.jpg
    122.2 KB · Views: 280
   / Backhoe Dolley
  • Thread Starter
#8
OP
T

therrien

Silver Member
Joined
Oct 23, 2001
Messages
141
Location
Salem New Hampshire
Tractor
Kubota B1700 TLB Now LX2610 ROPS

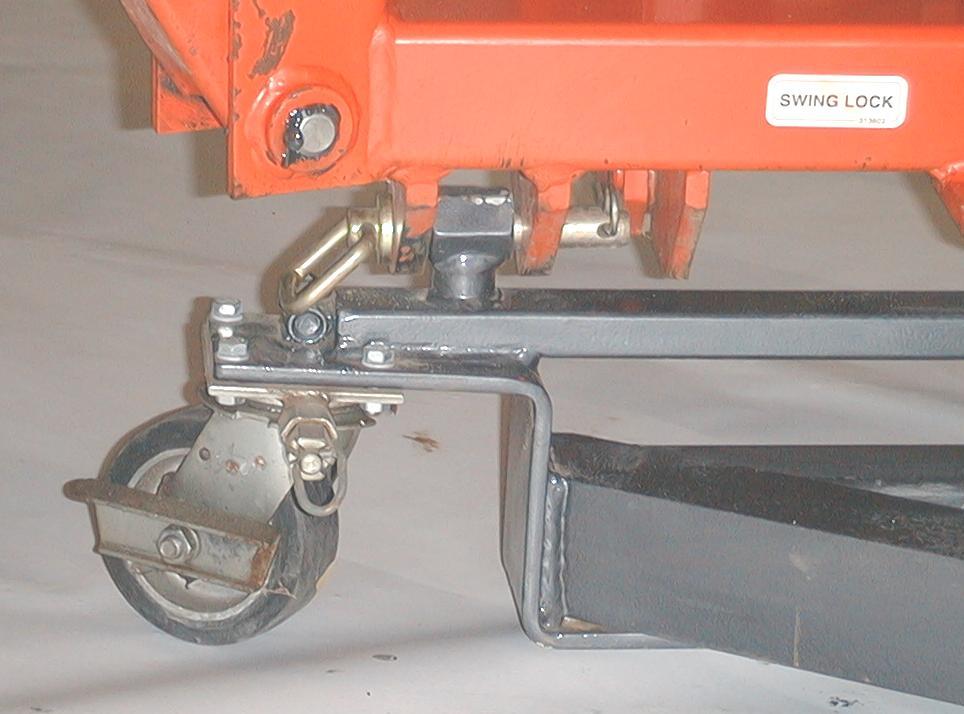

This is how the BH is attached to the dolly.

Doug T B1700 TLB


Attachments

  • 5-87969-dolly9.jpg
    71.3 KB · Views: 167
   / Backhoe Dolley
  • Thread Starter
#9
OP
T

therrien

Silver Member
Joined
Oct 23, 2001
Messages
141
Location
Salem New Hampshire
Tractor
Kubota B1700 TLB Now LX2610 ROPS
picture 9

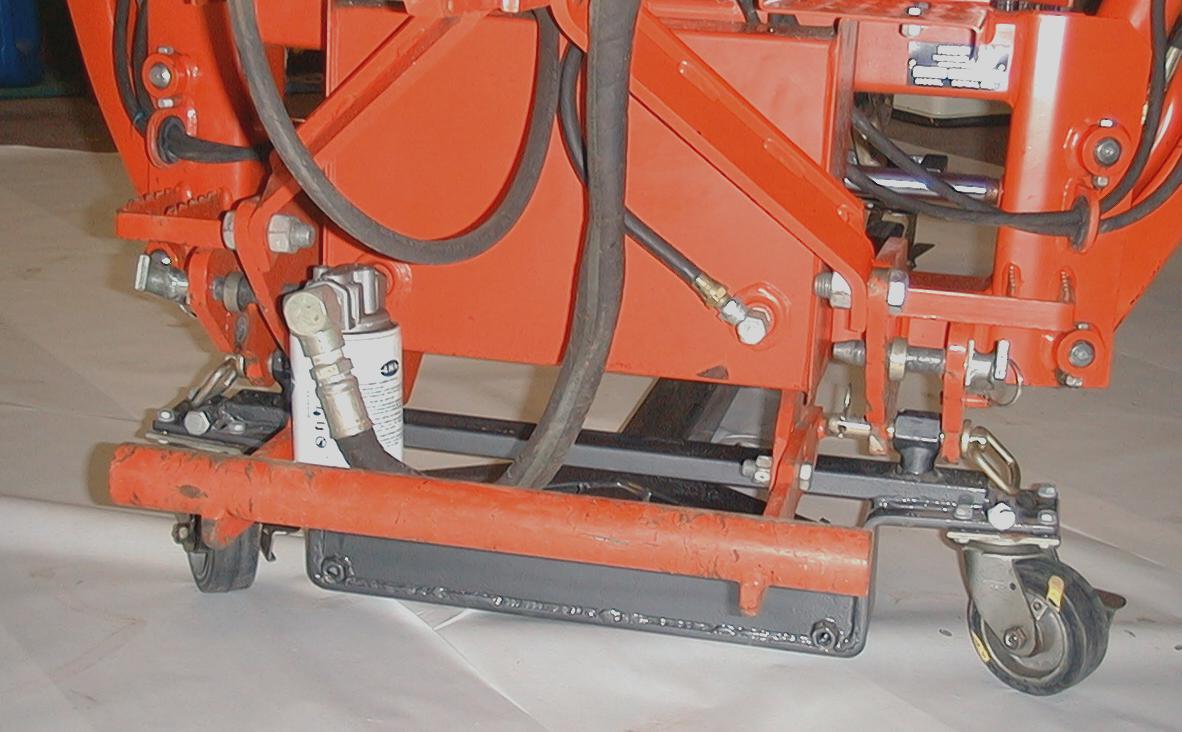

This is a view from the invisible tractor.
When the BH is on the dolly, I can stand on the round safety bar on bottom and jump or I can sit in the BH's seat and bounce, with no instibility on the hoe. At 250 pounds thats pretty good. Side stability,(me standing on the step to get on the hoe) is not a problem either.

Doug T B1700 TLB


Attachments

  • 5-87973-dolly10.jpg
    106.8 KB · Views: 168
   / Backhoe Dolley
  • Thread Starter
#10
OP
T

therrien

Silver Member
Joined
Oct 23, 2001
Messages
141
Location
Salem New Hampshire
Tractor
Kubota B1700 TLB Now LX2610 ROPS
Last one!

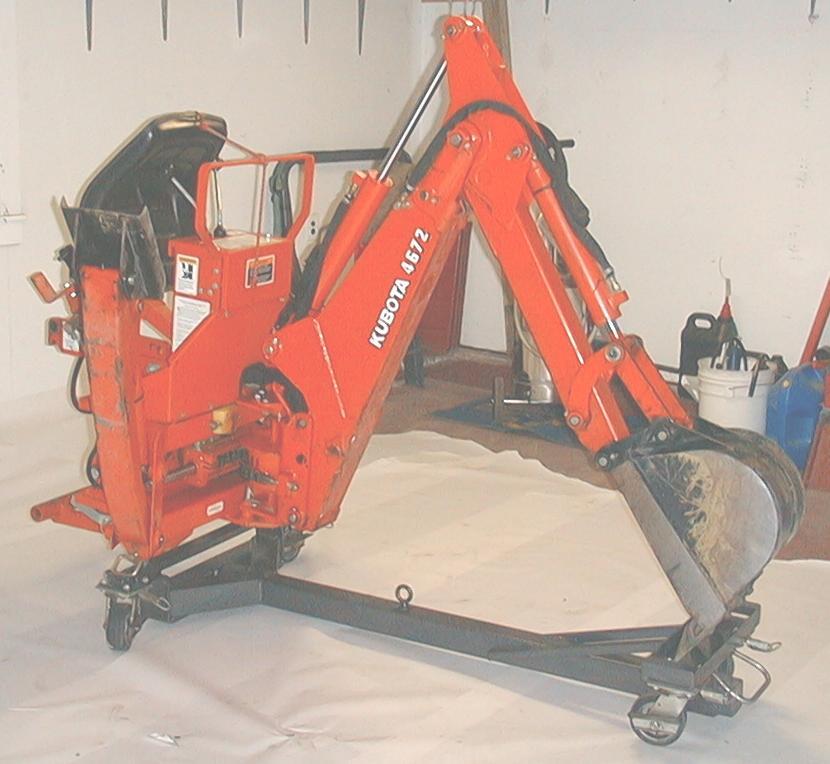

The whole setup ready to be put in the corner.

Doug T B1700 TLB


Attachments

  • 5-87975-dolly11.jpg
    70 KB · Views: 198
