Mice Damage 7205 Cub Cadet. Breather Hose Hookup Question

   #1

tom63

New member
Joined
Feb 8, 2009
Messages
17
Tractor
Cub Cadet 7205

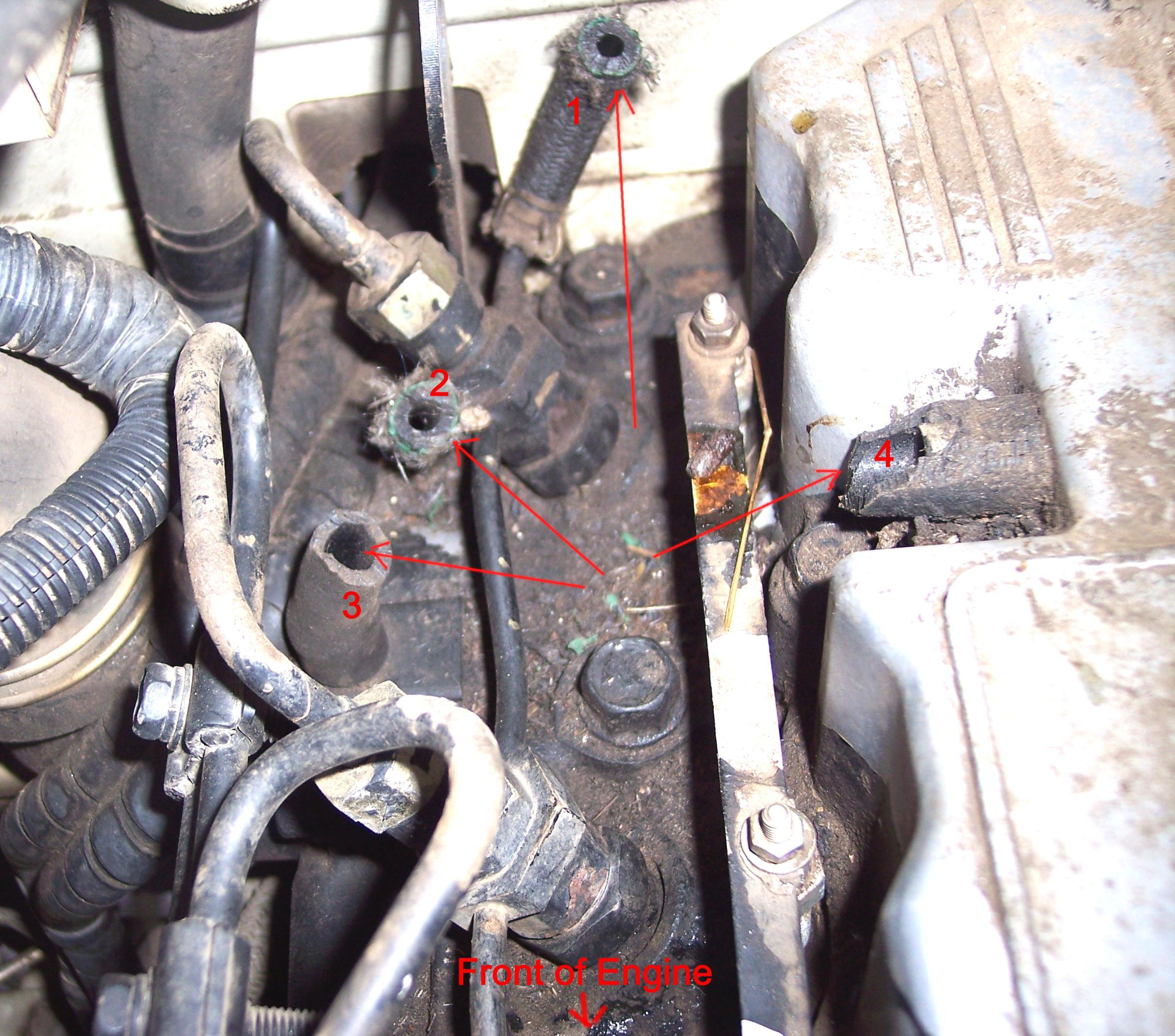

Mice ate some of my rubber hoses in the engine compartment! I see 4 open ended hoses. One is the breather hose to the Valve cover. Can anyone tell me what attaches to what or find a diagram of the correct routing?


Attachments

  • 7205 Engine.JPG
    7205 Engine.JPG
    3.2 MB · Views: 38
   #2

Cub 7275

New member
Joined
Aug 10, 2020
Messages
15
Tractor
Ingersoll 4120
I've looked up and purchased parts from these guys: Parts Lookup - Weingartz

Does your Cub have the 3 cyl diesel? If so I can get a picture of that engine in the 7275 if it would help.


  • Thread Starter
#3
OP
T

tom63

New member
Joined
Feb 8, 2009
Messages
17
Tractor
Cub Cadet 7205
Thanks for the reply. Yes, my cub has the Mitsubishi 1.1L 3-cyl diesel engine. Probably similar or the same as the 7275. A picture would be great! I'll look at the Weingartz site also. Thanks again.

   #4

ChasHM

New member
Joined
Jan 21, 2017
Messages
5
Location
Wingdale NY
Tractor
Cub Cadet 7305

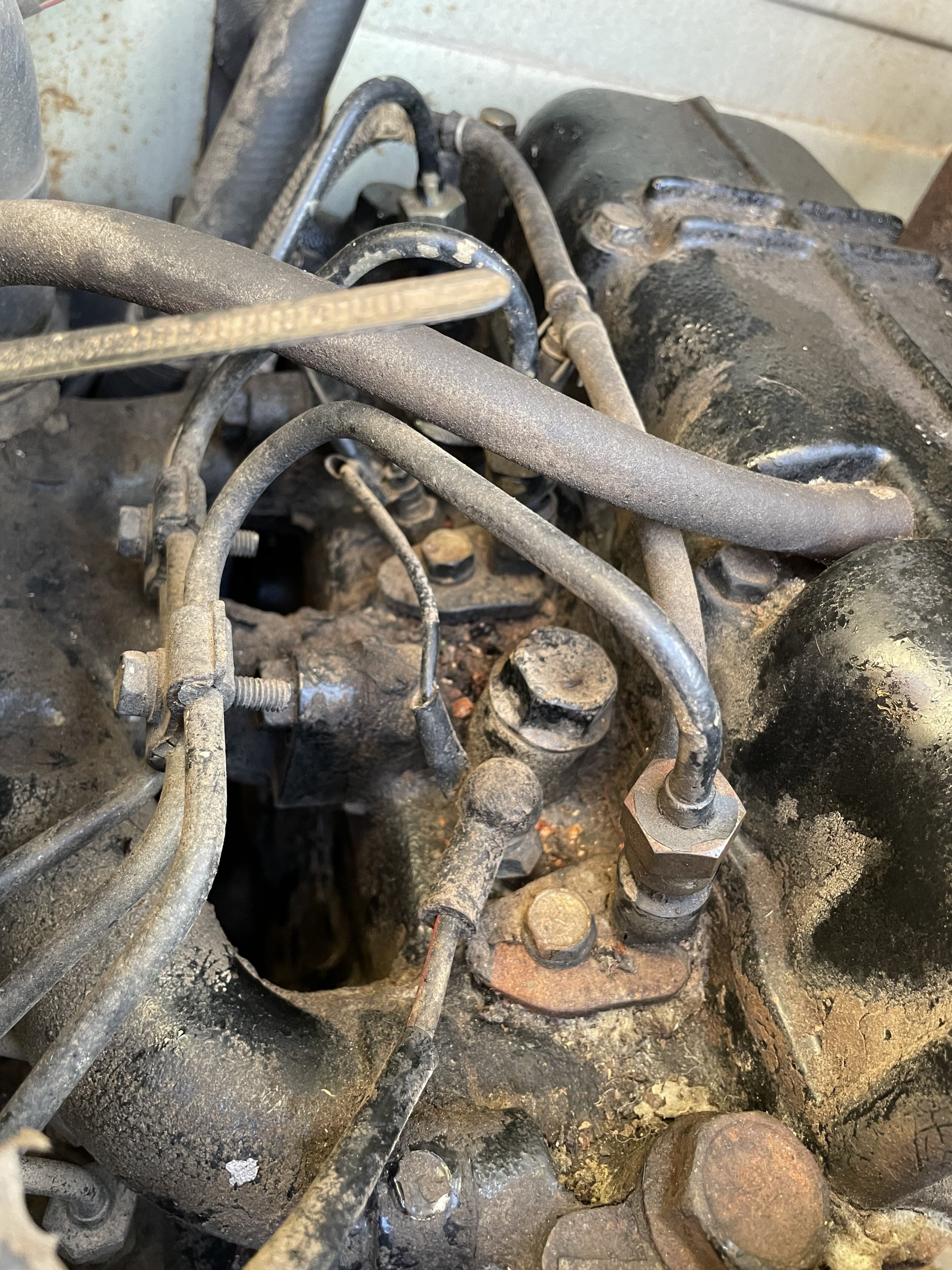

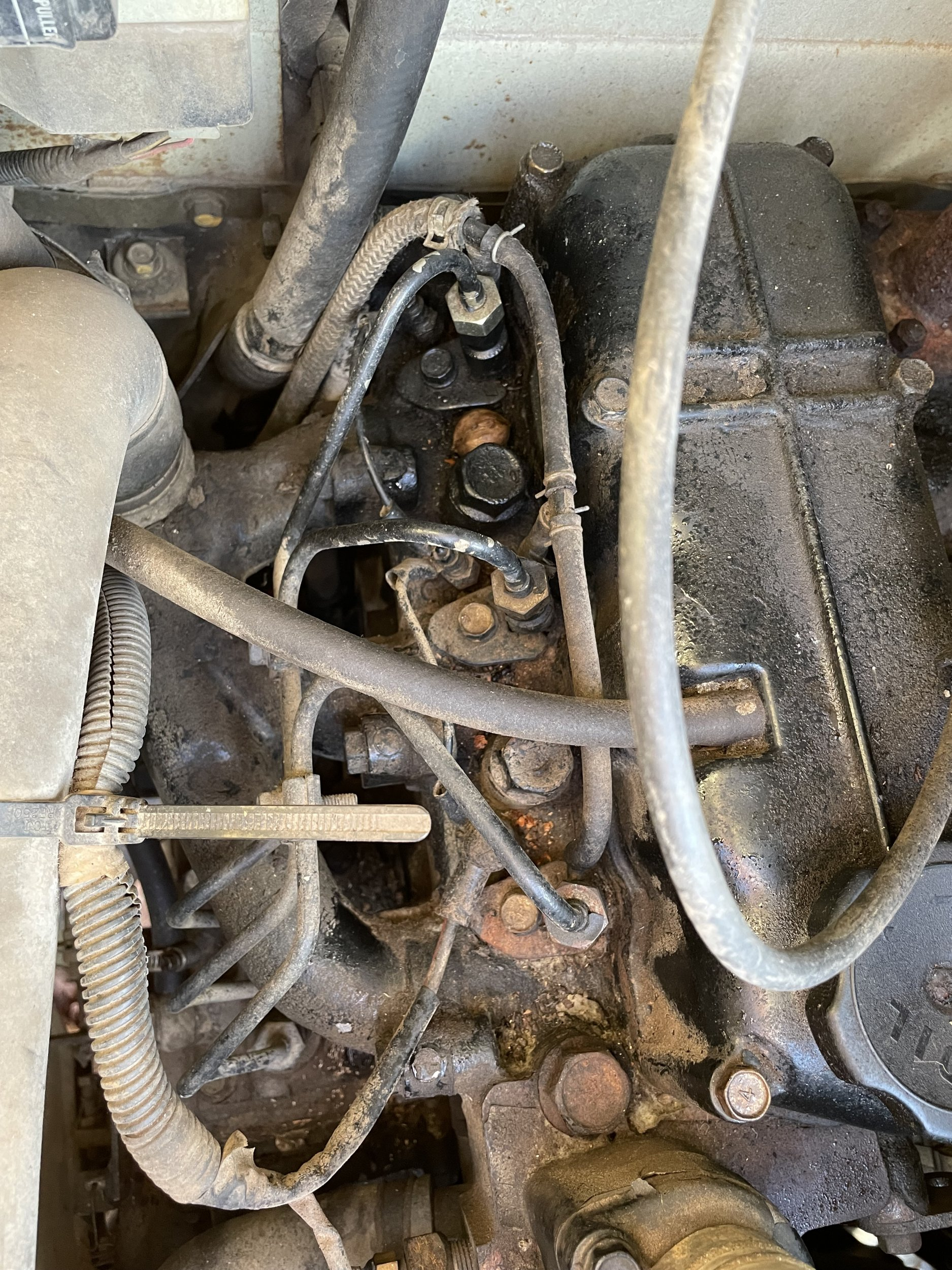

Here's a couple of pix from my 7305.

Looking at your picture, The breather on the valve cover is #4, and goes to #3, which should be the intake manifold.
#1 and #2 - This is the return line from the injectors. On my tractor this is plumbed with small tubing between the injectors and the the fabric-covered stuff from the back injector to the return line to the fuel tank.

None of these hoses are made-to-shape. Just go buy fuel hose rated for diesel of the right diameter at your local auto parts place.





  • Thread Starter
#5
OP
T

tom63

New member
Joined
Feb 8, 2009
Messages
17
Tractor
Cub Cadet 7205
Thanks ChasHM. Your pictures are a great help. So basically I need to repair the hose between 1 and 2 and replace the hose between 3 and 4. I think I can handle that! Thanks again for taking the time to take the photos and reply. I looked all over the Net and came up with nothing!

   #6

Cub 7275

New member
Joined
Aug 10, 2020
Messages
15
Tractor
Ingersoll 4120
The pictures I took of the 7275 are identical to ChasHM's picts.

I've found the exploded parts views on that Weingartz site helpful, though sometimes it takes a few tries to get to the right diagram. They have the prices as well which is useful when shopping around.


  • Thread Starter
#7
OP
T

tom63

New member
Joined
Feb 8, 2009
Messages
17
Tractor
Cub Cadet 7205
I've found the exploded parts views on that Weingartz site helpful, though sometimes it takes a few tries to get to the right diagram. They have the prices as well which is useful when shopping around.
I bookmarked that Weingartz site. Nice, clear diagrams. Thanks!
