$130 Subcompact grapple project

   / $130 Subcompact grapple project #1

James Eric

Silver Member
Joined
Dec 28, 2009
Messages
103

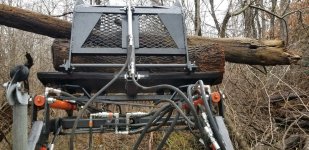

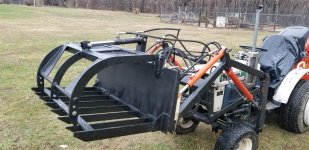

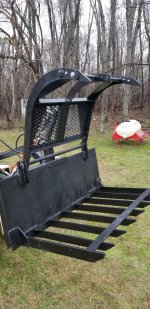

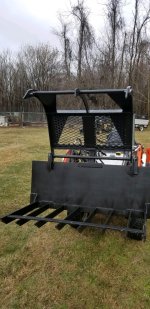

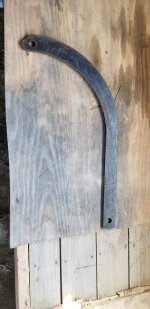

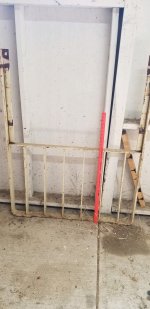

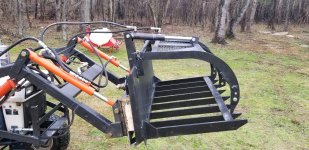

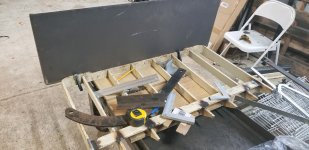

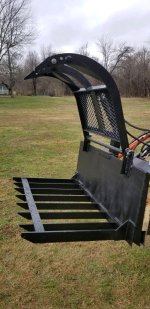

I started with the forklift backstop that had for about 5 years. I found the thumb metal in a used tractor yard. They gave them to me for free. The cylinder is from Surplus Center. The most money was spent on the quick attach plate, $78. I already had the hoses but I spent $10 on fittings at a local hydraulics repair shop. I had fun building it and works great.

Specs:
219 pounds
33 opening
40 wide at the base
28 thumb
25 deep

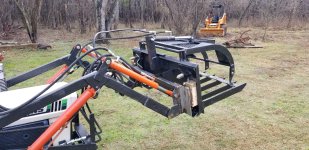

I built it handle and move fallen trees and brush on my property. That same week I added the quick attach and a tooth bar to the tractor.

84D86AAF-E7FD-4836-981C-A043E7328ECE.jpeg1720653C-9976-4854-B215-6A18C00F103F.jpeg8DB4C02A-8EB1-4E85-BAC1-2ADAE00F8B7F.jpeg837E5ACD-6612-471B-A55A-7781E636C235.jpeg7F1771D4-1C64-4D00-ACD7-5A28134C018A.jpeg1D6839D0-447F-4FDE-AB9C-8FA61888723B.jpeg28B119E3-1B7C-424C-817C-6D63F07251F4.jpeg8FA897DC-A105-4C94-9816-A5F9D3546B95.jpeg6694B18B-3DD9-4D15-BD37-B066D4C902E8.jpeg8DA56953-84FC-434E-9FEB-B5BFE3C9A274.jpegD22CCA42-2E57-4BFE-91A4-7CA10F00FEA9.jpeg

   / $130 Subcompact grapple project #2
Nice project, one that I'd eventually like to accomplish.
LOL, probably have all elements on hand but just missing the time even being retired.

   / $130 Subcompact grapple project #3
I like it! I already have a new 3/8" thick quick attach plate, some steel but would need to buy the tines.
Then of course there is the matter of the third function remote...lol
The only thing I would add on yours is some more triangle pieces, one for each tine and maybe a bit taller and rounded if you have the capability to round them (torch or plasma cutter)
Thanks for sharing

   / $130 Subcompact grapple project
  • Thread Starter
#4
i plan to add more gussets in the spring. But for now, I have other projects to complete before spring. I do not have a plasma cutting so finding the tines was a lucky break.
