200cx mount geometry

[project_X]

Hi all, I happen to be an Orange tractor owner that needs a loader. Since my tractor is a vintage 1980s L235dt, I needed to fab my own mounts. I came across a cheap 200cx with 2305 mounts.
Could someone measure the outside width of the vertical arms of the mounts and the height to the ground to the top round mount feature.
Thanks,
Rob



[beenthere]

You have found a Deere FEL and looking for info to mount it to an Orange tractor, it appears. Should be a good fit if you can get the mounts right.



[project_X]

Depending on the height the mounts need to be, I may actually be reasonably easy to fab the mounts. I will put a thread together on the build once I get going.



[project_X]

If someone could make this measurement, it would be a big help.

Could someone measure the outside width of the vertical arms of the mounts and the height to the ground to the top round mount feature? As well as distance from the back of the mast to the tractor front most point

Thanks,
Rob



[Henri88]

Rob if I can find some free time today I will try to get you this info but first I need to make sure I understand what you need. You want outside width from one vertical arm to the other arm? The other measurement I think I understand.



[project_X]

Rob if I can find some free time today I will try to get you this info but first I need to make sure I understand what you need. You want outside width from one vertical arm to the other arm? The other measurement I think I understand.

Exactly
I want to be able to design a mount for my Kubota using the 2305 mounts I have and need the dimensions to ensure they are in the same spot as on a John Deere

Width of vertical arms
Top of uppermost round mounting feature.
Bottom of horizontal tube
And distance from front of tractor.

Thank you,
Rob



[Henri88]

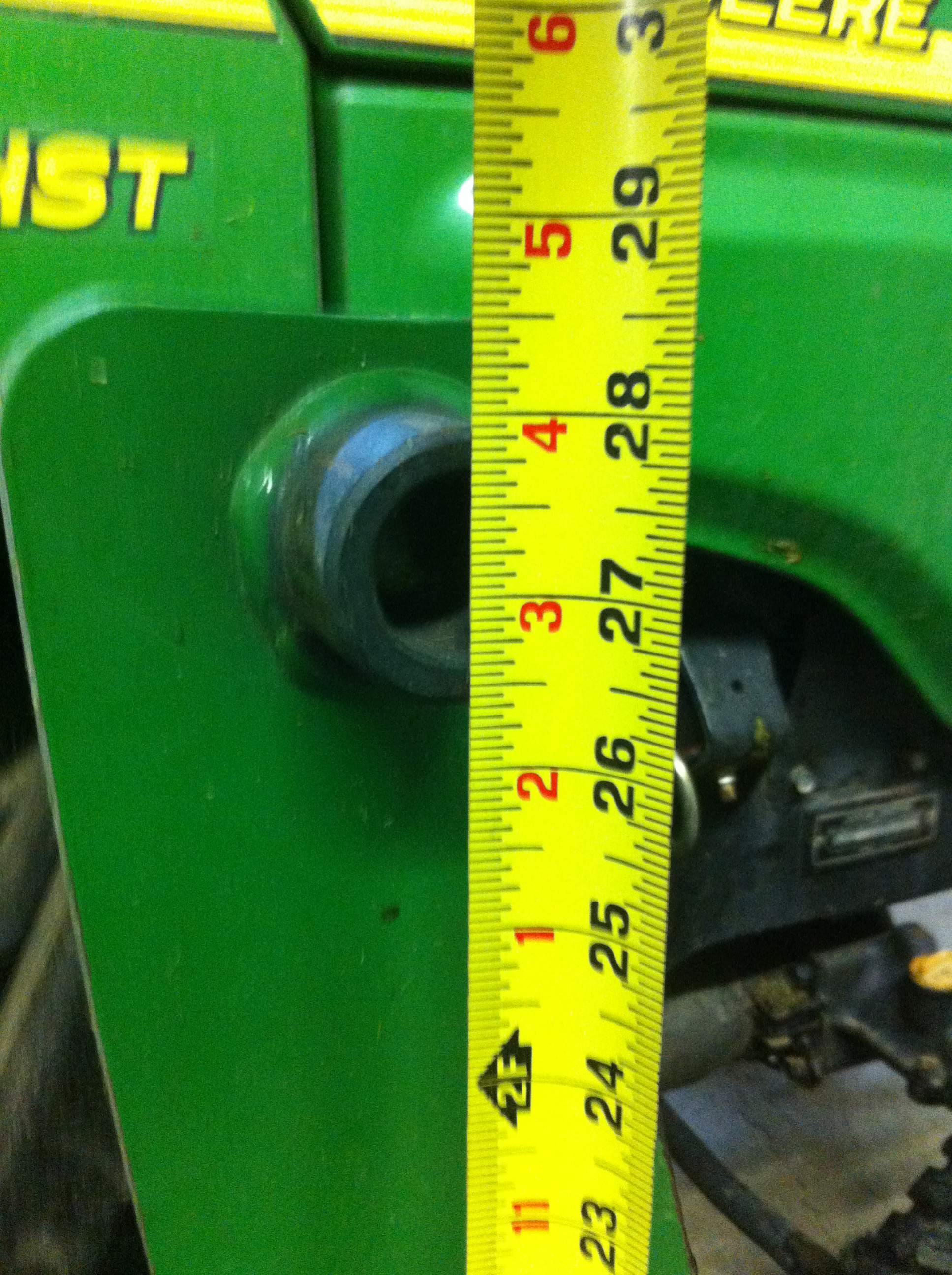

Overall width is the same as the width of the loader arms 43''. Top of uppermost round mounting is 28'' to the ground. Bottom of horizontal tube to the ground 12''. Distance from front of vertical arm to the front of the bumper 29''. Hope this will help. Henri



[project_X]

That is great, thank you



[project_X]

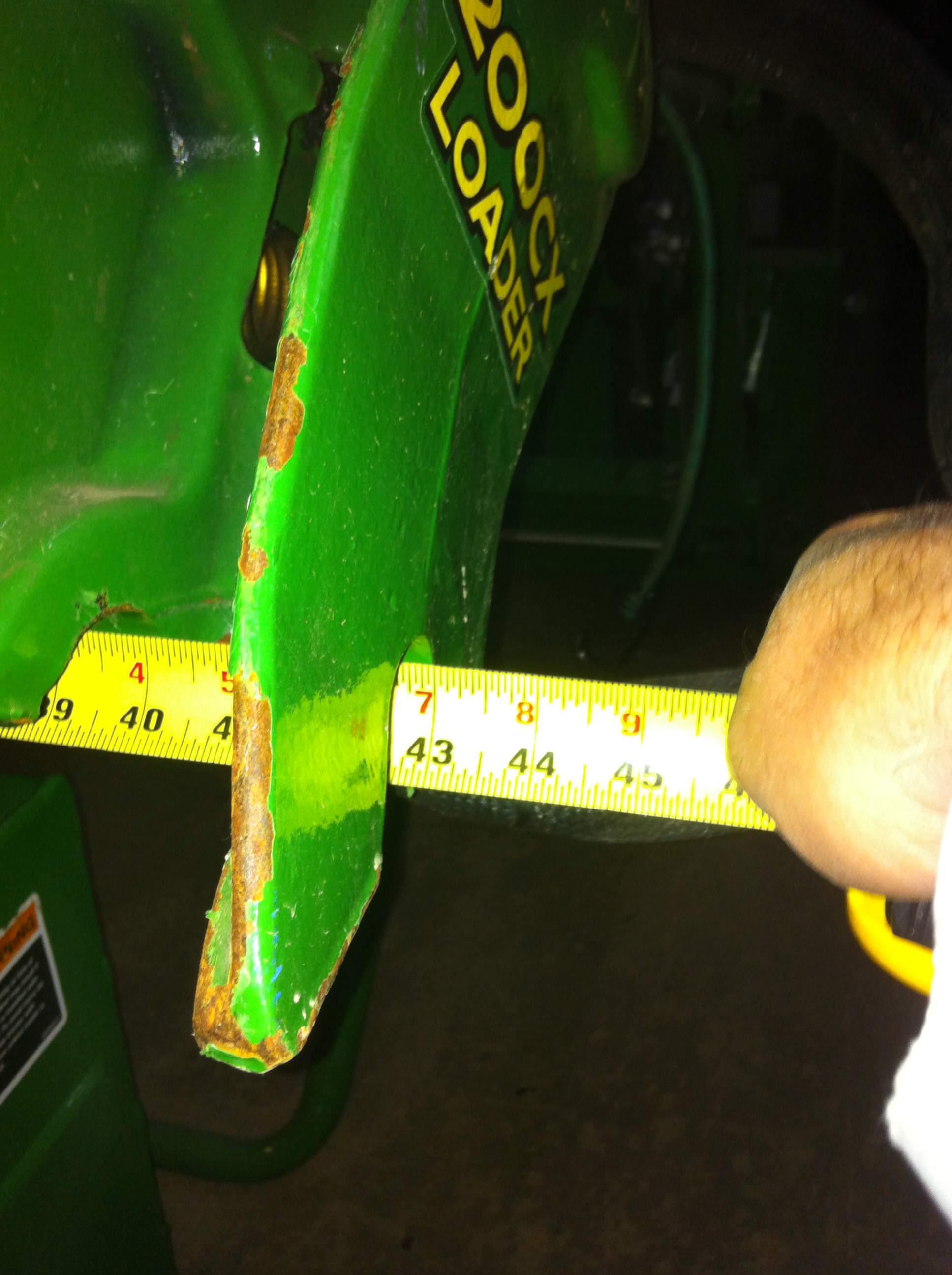

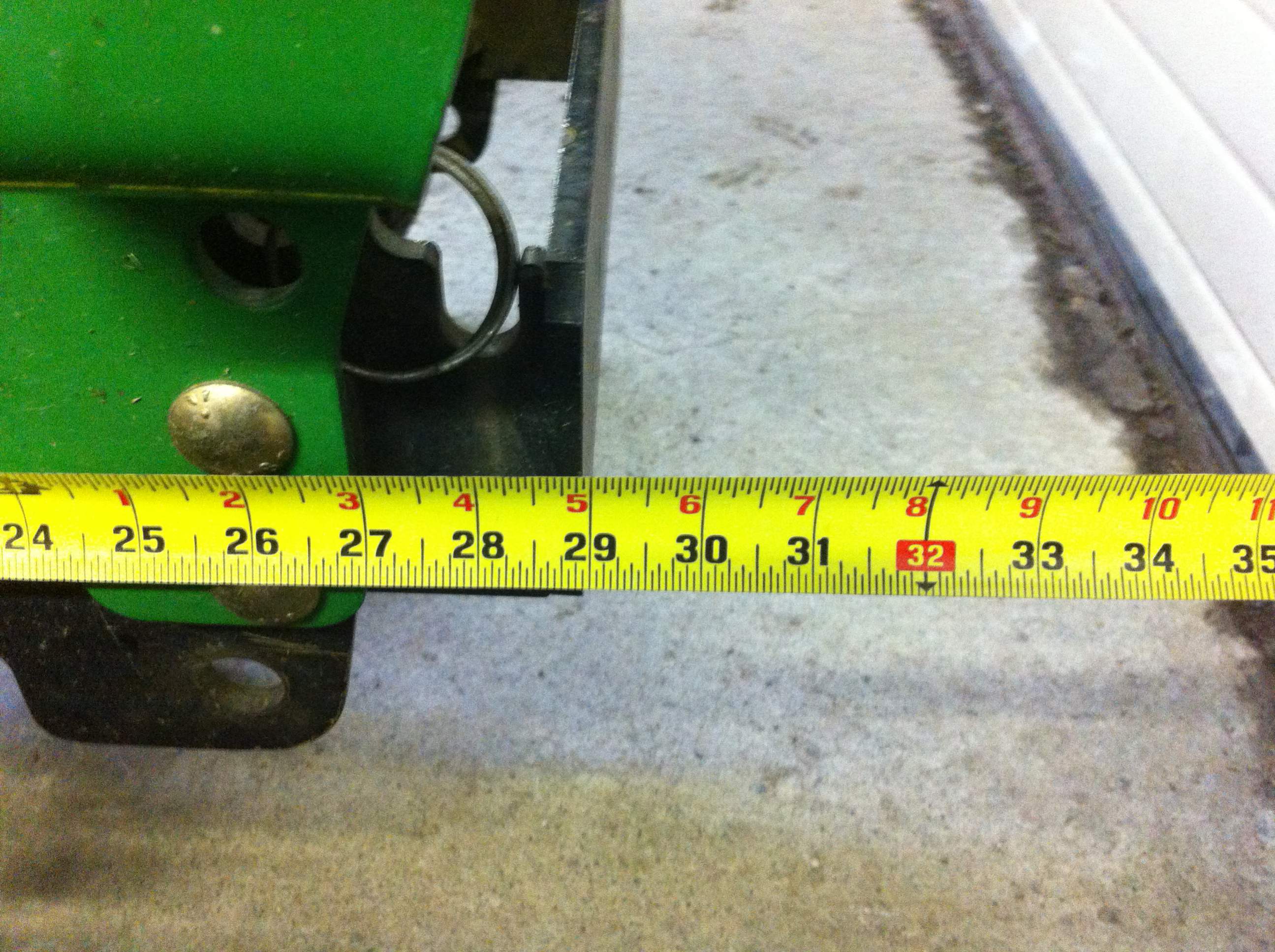

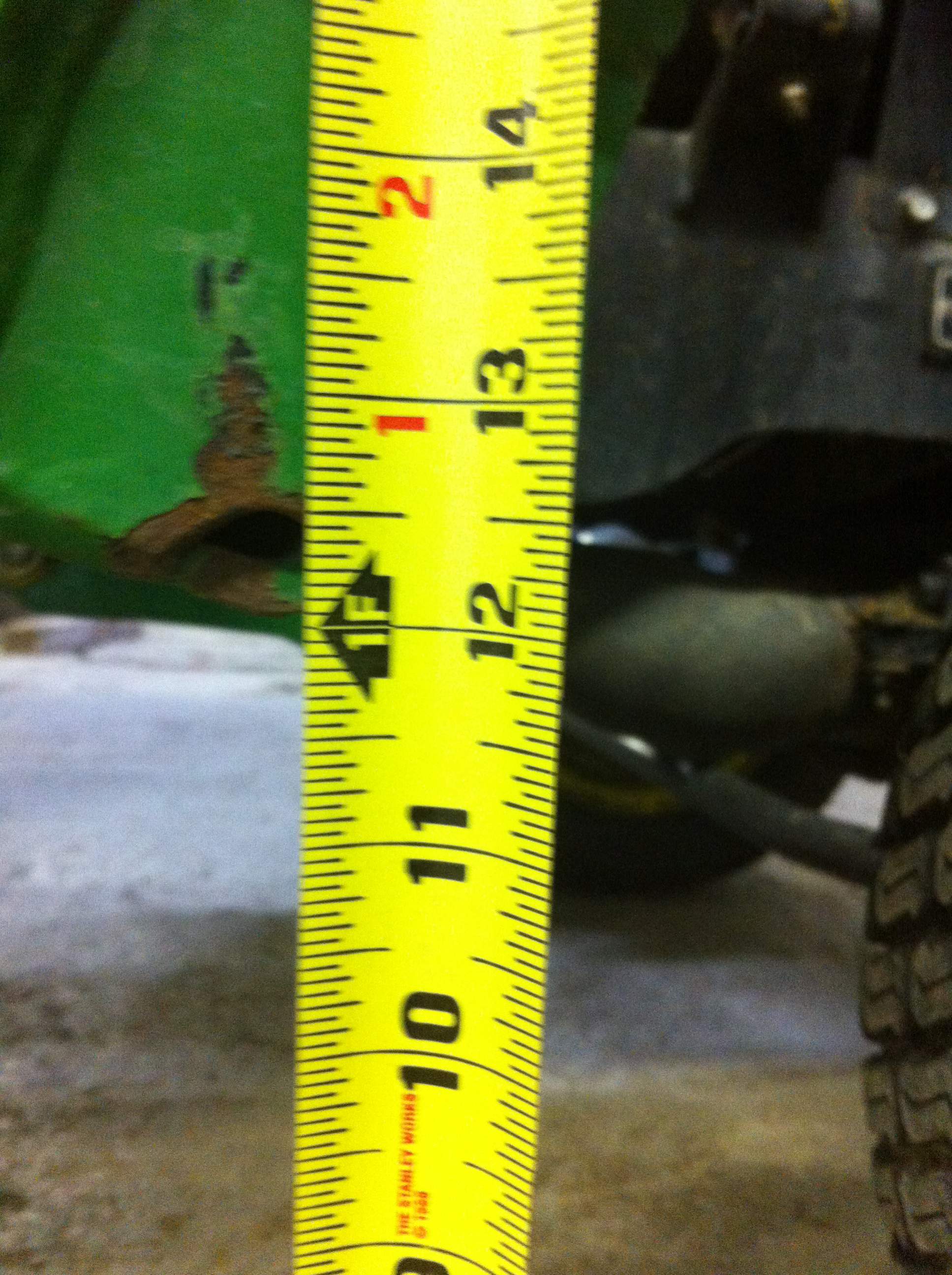

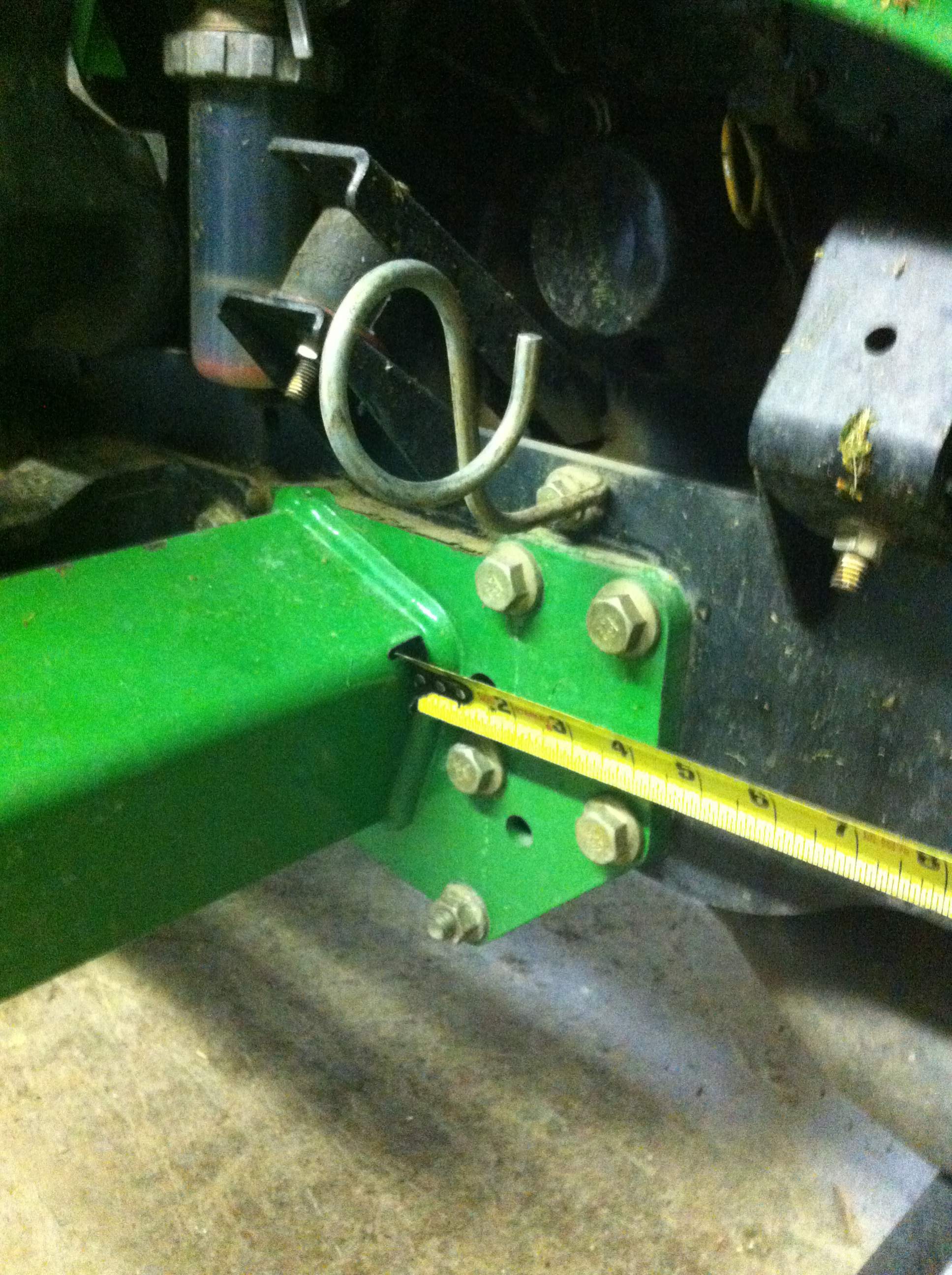

Overall width is the same as the width of the loader arms 43''. View attachment 393864 Top of uppermost round mounting is 28'' to the ground. View attachment 393868 Bottom of horizontal tube to the ground 12''. View attachment 393871 Distance from front of vertical arm to the front of the bumper 29''. View attachment 393874 View attachment 393875 Hope this will help. Henri

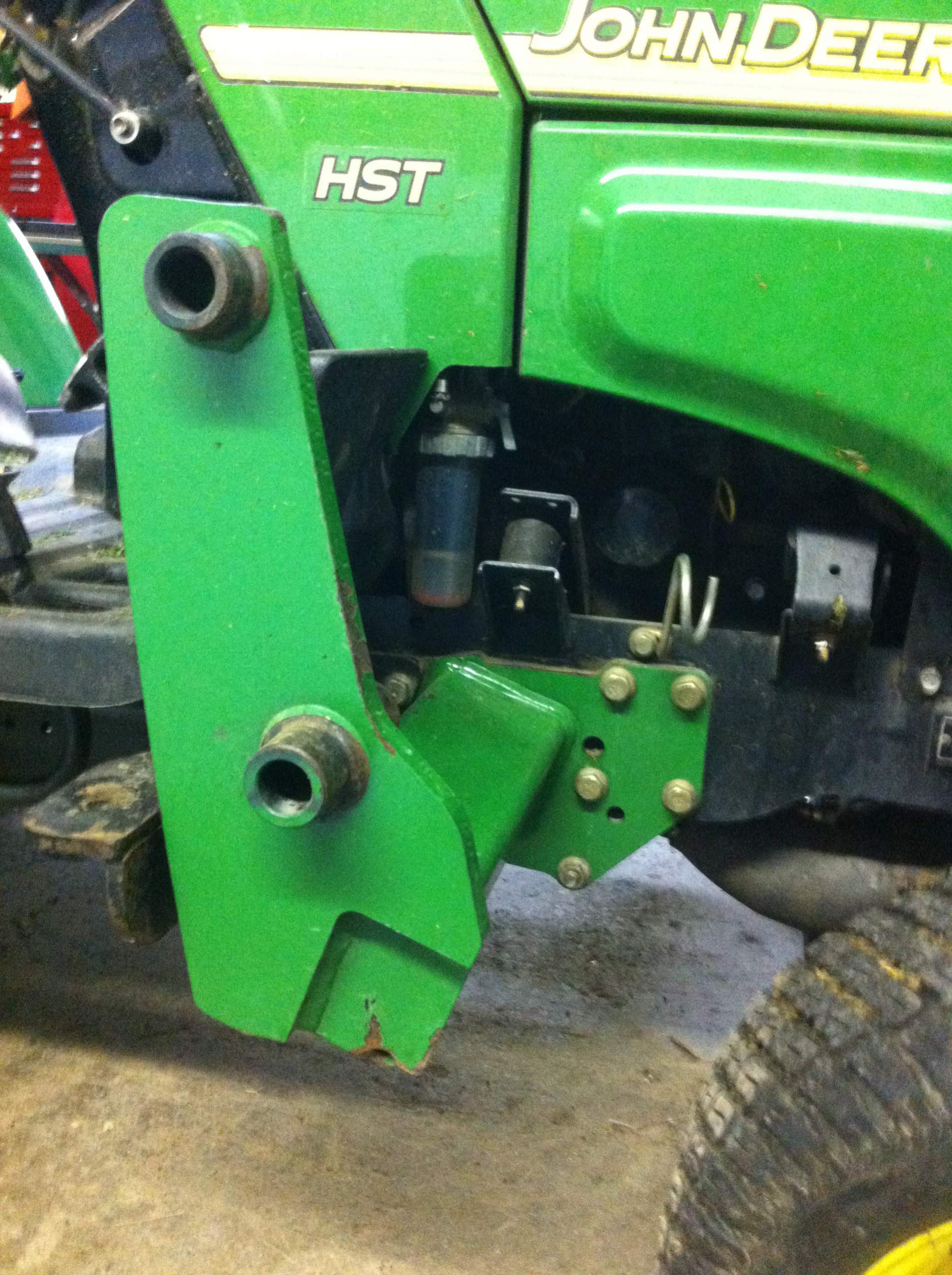

View attachment 393876

Henri, Out of curiosity, what model of tractor do you have?

Thanks,
Rob



[Henri88]

2305, it's in my signature. :thumbsup:
