4300 Wiring Diagram

   / 4300 Wiring Diagram #1

liledoun

Member
Joined
Jul 12, 2002
Messages
41
Location
Northwest Piedmont North Carolina
Tractor
JD 4300
I am looking for a wiring diagram for my JD 4300. I want to find out what the "Aux" switch position does and how to use it, and/or find a way to get an ON voltage output for such things a radio and a sprayer pump, Cellphone, etc.

I also want to know the layout of the "fuse-Relay" panel that has all the connections.

I will appreciate any comments and experience.

Thanks,

Jim

   / 4300 Wiring Diagram #2

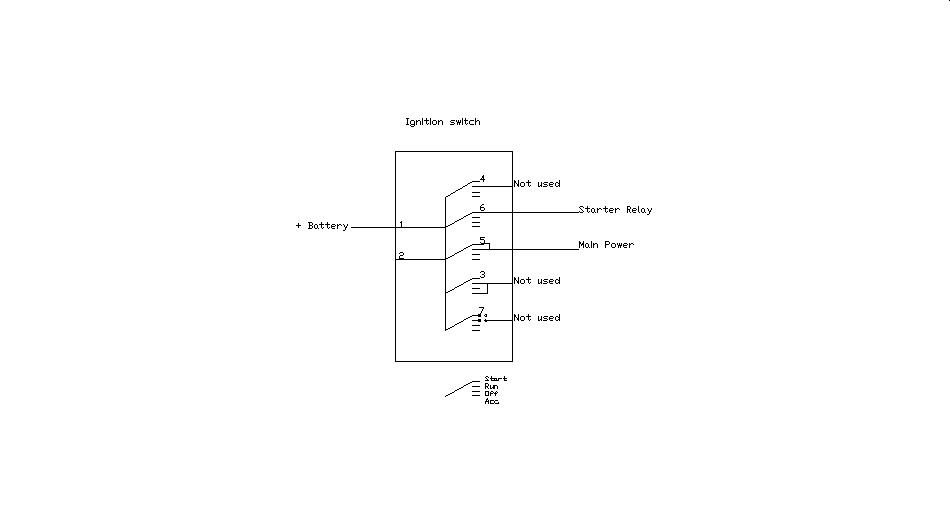

I've attached a drawing of the ignition switch. If you have any questions let me know.

Branch


Attachments

  • 10-179157-Ignition.jpg
    16.3 KB · Views: 1,857
