I can work in the dark now!

[hutchman]

With days getting short, I had to do something to claw back some working time!

I followed in the footsteps of dragoneggs excellent LED install on his ROPS:
http://www.tractorbynet.com/forums/build-yourself/299015-led-light-install-but-look-2.html

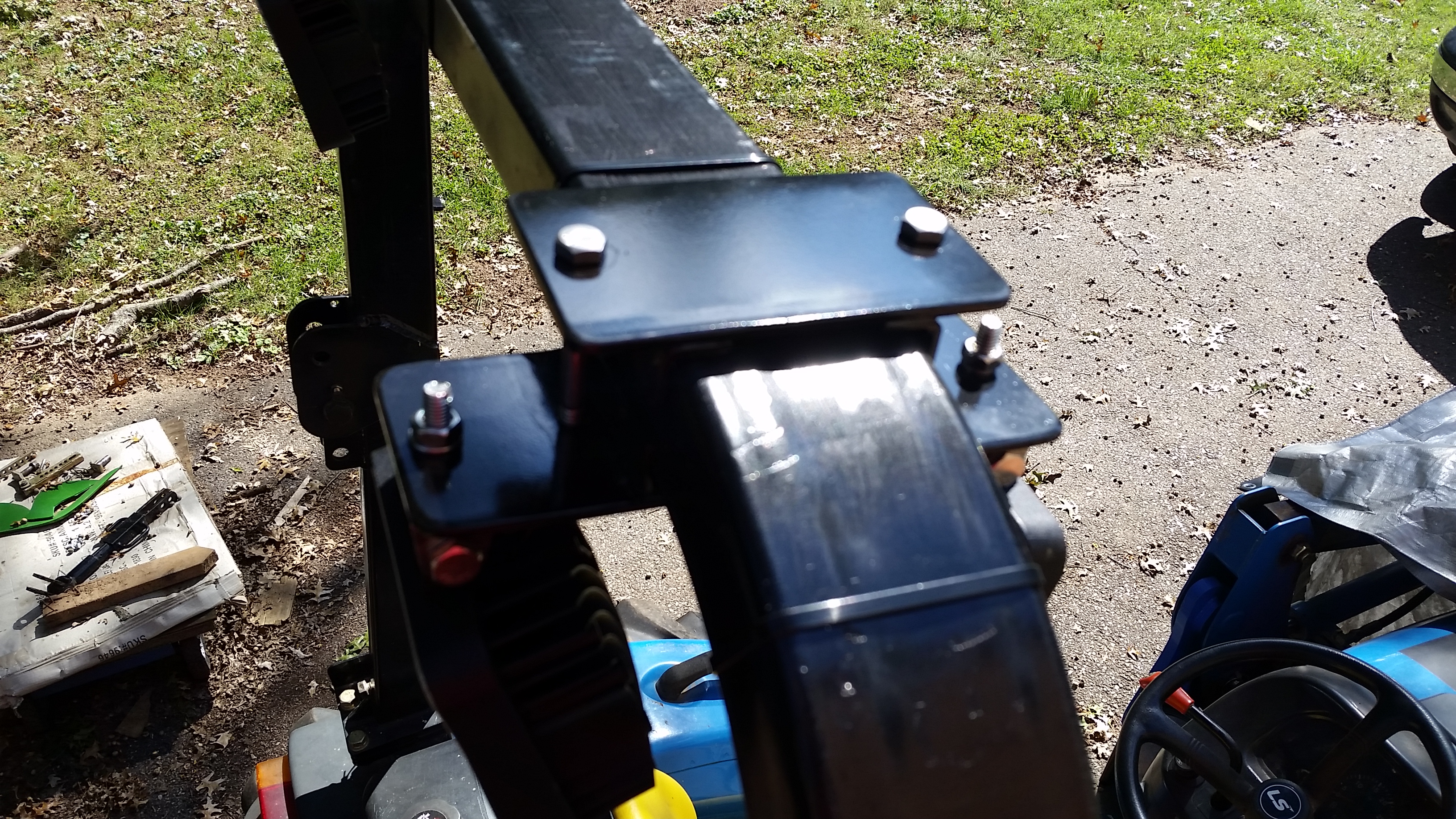

... but I didn't use any high speed space age materials like he did ... I went old school and fabed up some brackets that clamp to the ROPS:

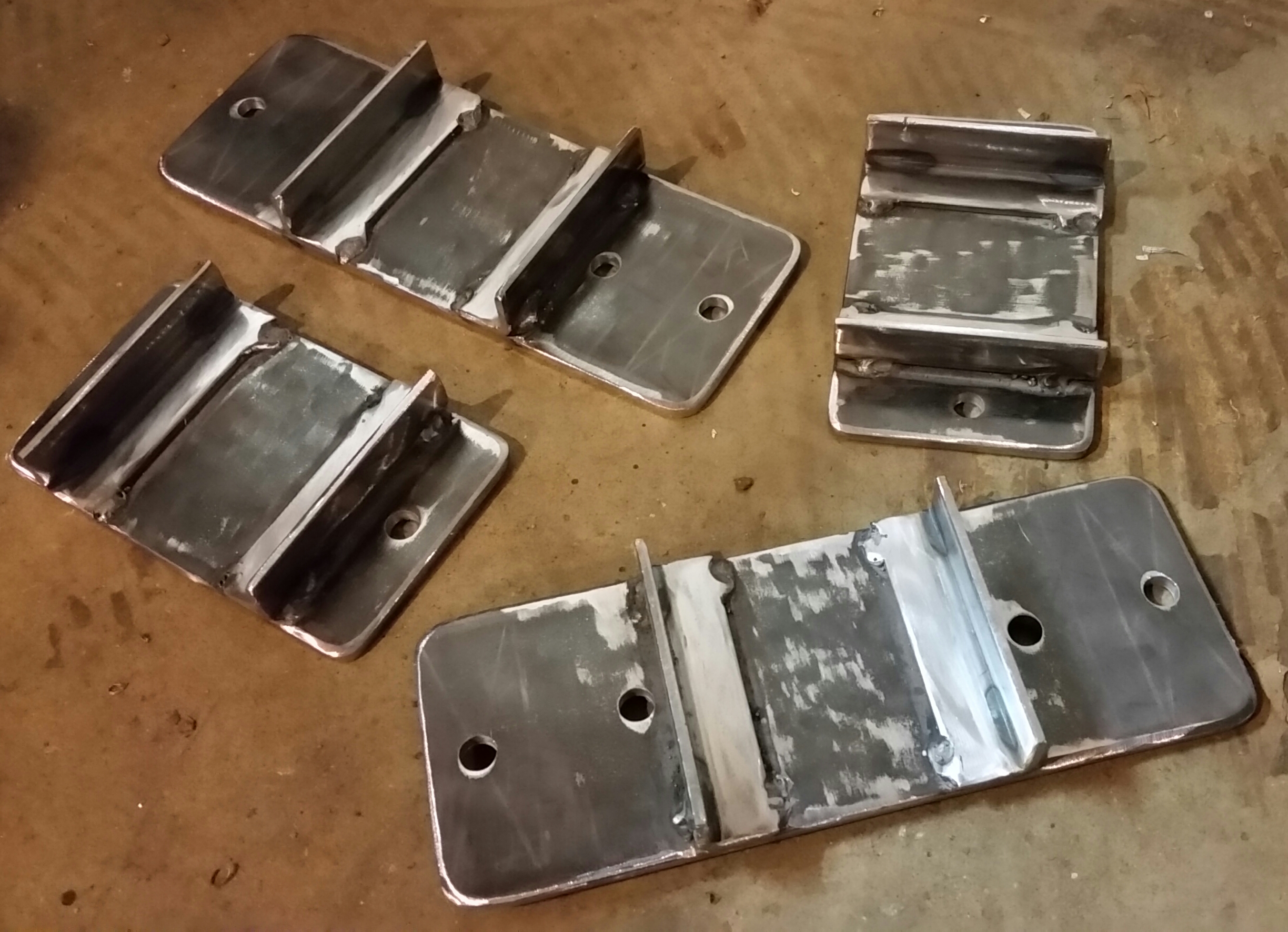

Raw:


I did use the same Tuff LED lights that he used from the same Amazon link:
Amazon.com: TUFF LED LIGHTS 4 Inch Square 27watt LED Work Lamp Light 155 Lumen, Off Road, Atv, Utv, Polaris Ranger (pack of 4 ): Automotive

The lumen specs are kind of weird ... some say 1500, 1950, 2150 etc. for the same product depending on where you look. Here's why:

"How bright are our lights?

Each light has itç—´ own measurement of lumens which is a term used to describe the intensity of a light or its ç”°andle power. While this term once had an association to a real world measurement, similar to å¡—orse power, itç—´ a defined unit of measurement now but has no relation to a real world quantity. Each product page has these specs listed for your reference. But sometimes itç—´ hard to picture what 1,000 lumens would look like in comparison to 10,000 lumens. For an average 60W home light bulb you get around 600 to 900 lumens. Enough light to read a book even if the light source is several feet away but home light bulbs are designed for light disbursement. Our LED lights are designed to maximize light output. Therefore, our 1,000 lumen spot lights will shine at least 80 meters into the night. LED lighting allows us to design products that can maximize light output while preserving the inherent power saving qualities of Light Emitting Diodes (LEDs)."

FAQ - Tuff LED Lights


After painting (out of focus - sorry):

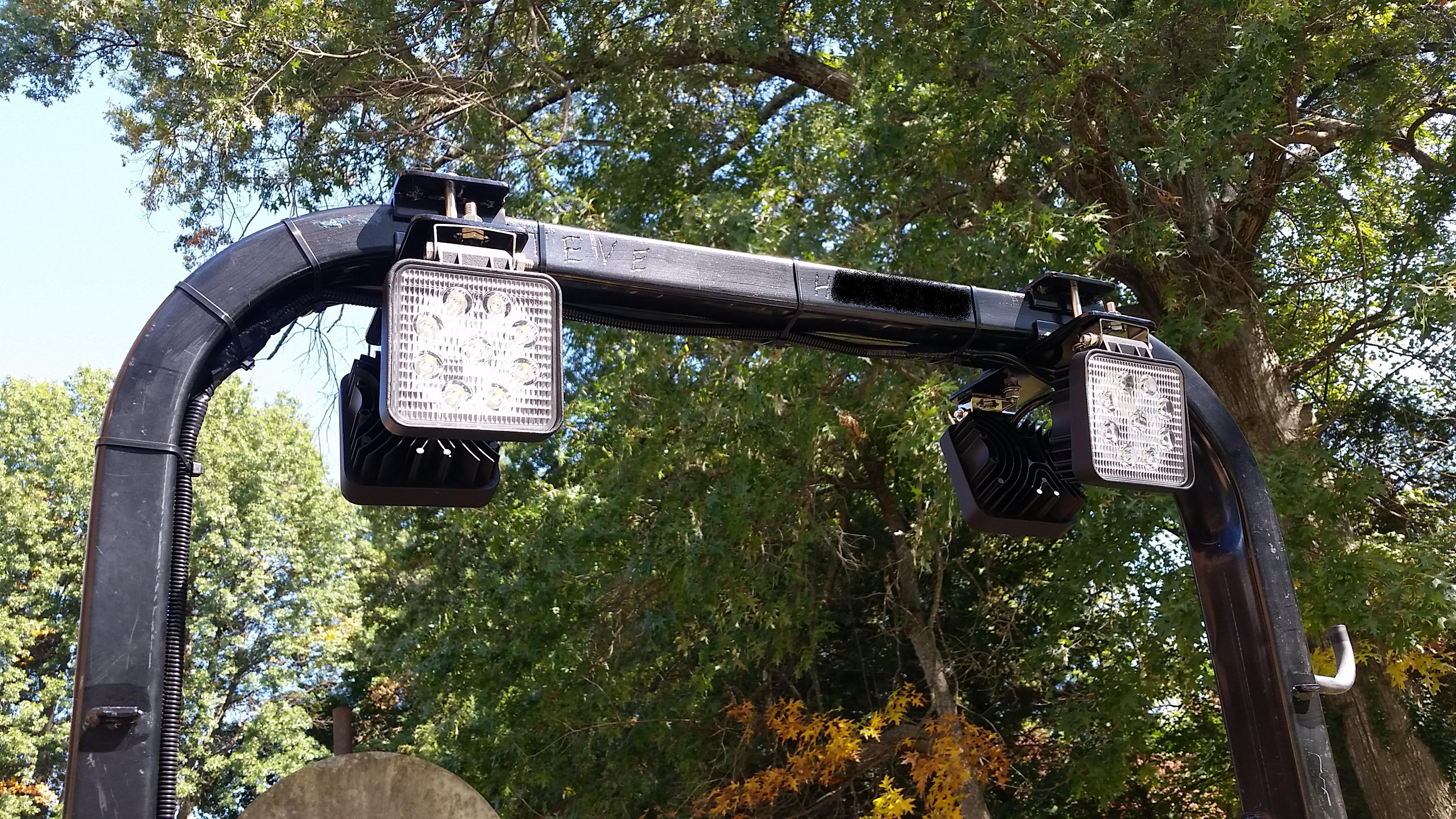

Lights installed on ROPs:

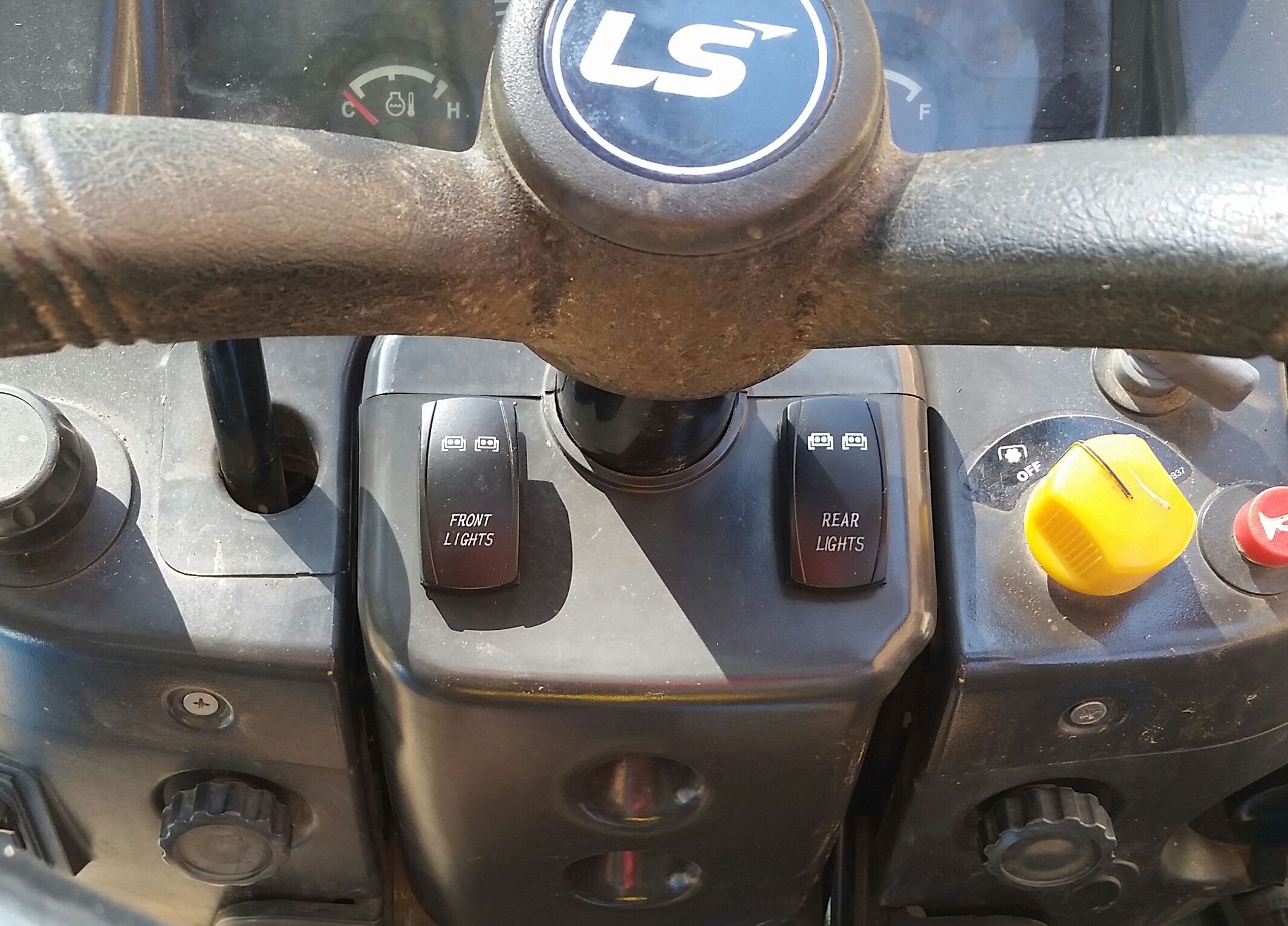

There are a ton of these switches on Amazon that are back lit in different LED colors and are etched with various graphics and text. I found some that said "front lights" and "rear lights". When the switch is on, the bottom and top LED's are on and illuminate the text or graphics. Here's a shot of my dash lit up with the LED's off so just the text is illuminated in blue LED (which looks white in the photo):
View attachment 485392

Example of the kind of switches with text/graphics you can find:
Amazon.com: MICTUNING Momentary LASER Rocker Switch WINCH IN/OUT, On-Off-On, 2 Amp 12V LED Light, 7pin, BLUE: Automotive

One challenge was the dash of my tractor is curved .... no flat spots to put the switches! So I used the flat spots on the plastic around the tilt steering. I needed to adjust my tilt steering lock (wasn't holding wheel where I wanted it very well - which was fun) anyway so it was a win win!

Here's a shot of the switches installed (in daylight):


The results ... here is a shot of the original tractor lights on High Beam only (the before shot):
View attachment 485393

... and now with just the front LED's turned on and the High Beams turned off (the after shot):
View attachment 485394

The LEDs light up all around the tractor too! This was a very helpful mod! Hope it helps inspire you to do something similar if you need to "extend" your working hours!
