Folks, I have a Bobcat B200 which I bought used. I believe it was a repo machine, since it has had a JCB ignition key since the time I bought it.
Recently the I have had multiple problems with the ignition switch and wiring harness (from years of being exposed to the elements) and currently the machine will not start (no power reaching fuel shutoff valve or starter.
I bought a replacement JCB ignition switch, but the replacement has spade terminals on the back where the current one has screws. I thought it would at least come with a diagram showing the identification of the pins, but nope. So far I am not finding any pin-out info on this switch using my google fu...

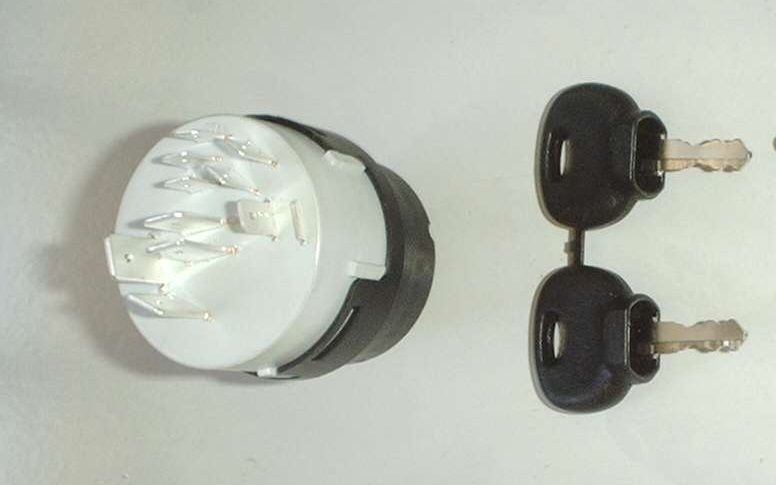

Here is what the switch looks like:
The spade lugs look to be 1/4 and 3/8 sizes.
If anyone can help with a pinout diagram, it would be appreciated.
