Front-End Loader Diagram

[angiepie]

I am looking for a diagram for a front end loader. It is a model # LA1001 for a Kubota M4700.
Thanks.



[gtrippleb]

Not sure if this is what you are looking for or not:
Kubota LA1001, LA1251, LA1002, Loader service
or
Cramies Manuals

You can get a parts breakdown of your tractor here:
Kubota M4700 Parts



[angiepie]

Not sure if this is what you are looking for or not:
Kubota LA1001, LA1251, LA1002, Loader service
or
Cramies Manuals

You can get a parts breakdown of your tractor here:
Kubota M4700 Parts

Thank you for your quick response.
I was actually hoping to find a diagram online because my husband is repairing it as we speak and is needing the diagram in front of him.



[dex3361]

What part is he repairing it may be a generic aspect.



[dex3361]

For your future use go to this parts supplier and they will send you a link to a PDF and it is a free parts breakdown of your Kubota tractor and equipment.
Tractor Smart
Click on the manuals button and then choose your tractor and fill out all of the equipment that you have as well.



[angiepie]

What part is he repairing it may be a generic aspect.

He blew out two hoses that go out from the hydraulic control box & switched them around just to make it back home to lift the loader & he lost track of what order the hoses go in because several weeks went by before he made it to the parts store. He is just looking for a diagram for the hydraulic schematic. So, the hoses are basically out of order & he doesn't know what order to put them back in.

Thank you so much for your help, I went on that website you gave me & filled out the info.



[dex3361]

Has he figured them out yet?



[angiepie]

Has he figured them out yet?

No sir, he hasn't.



[gilstro]

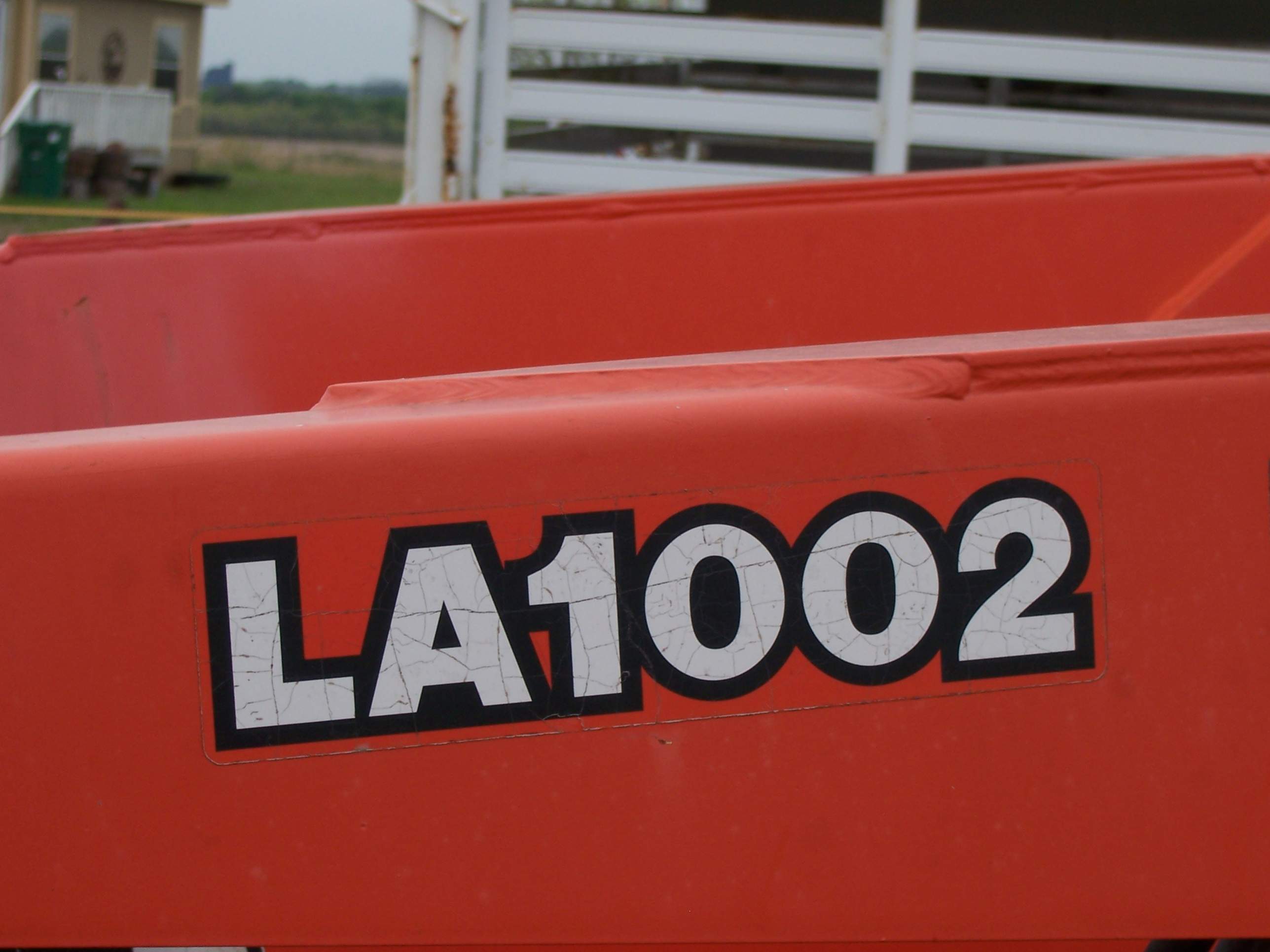

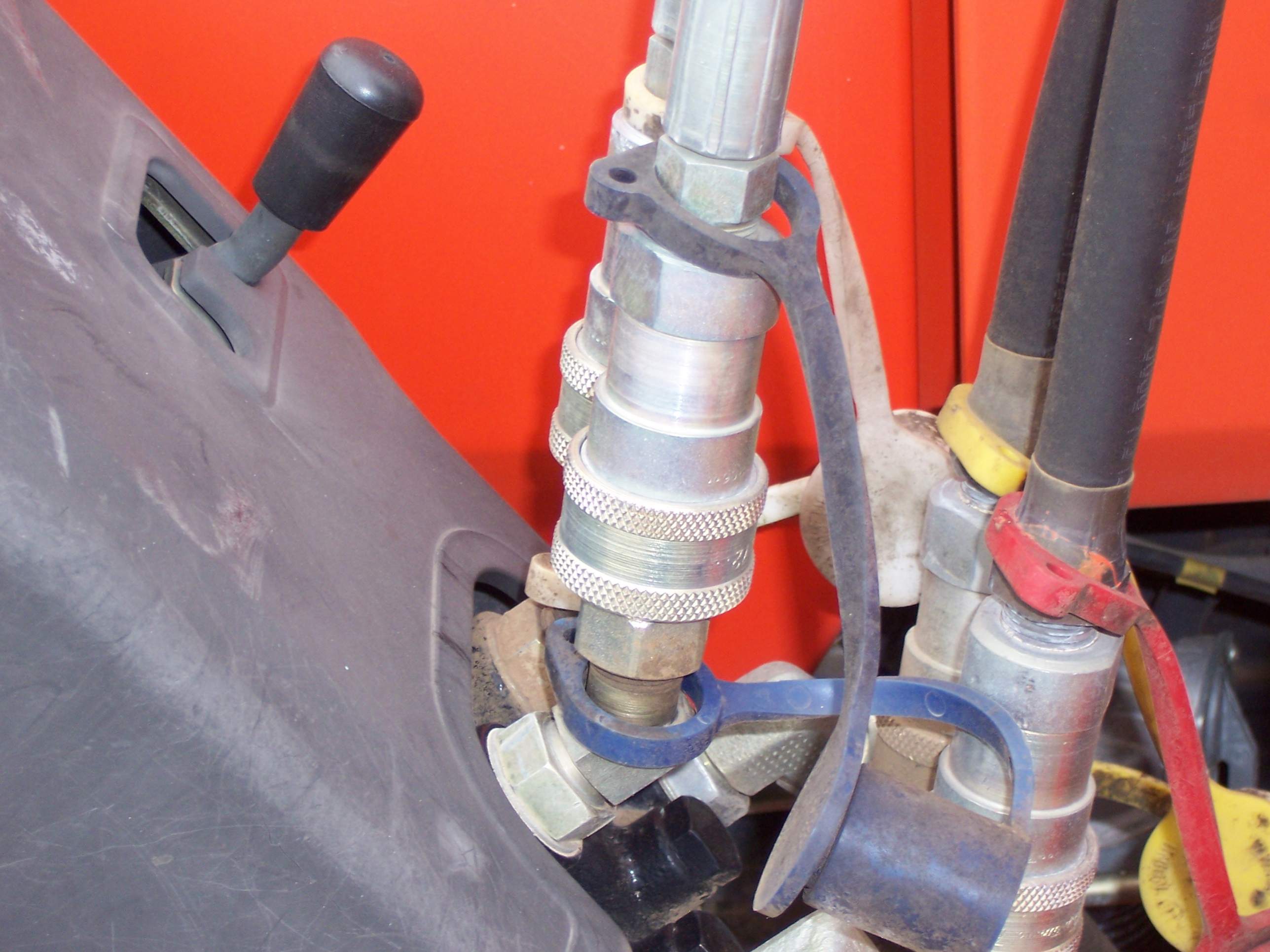

Ihave a m4800 ican take a pic and post it would that help



[gilstro]

I hope this helps
