Hoe and toter
- Thread starter cleatus
- Start date
- Views: 7326
RonMar
Elite Member
Whee did you get your hoe plans from?
Here's a link if the forum will alow it to post as this is the 5 try after typing. Sometimes it don't like me.
Free Plans Database
Sorry about the spaces. Only way I could get the link to post.
Remember I said loosely based.
Free Plans Database
Sorry about the spaces. Only way I could get the link to post.
Remember I said loosely based.
RonMar
Elite Member

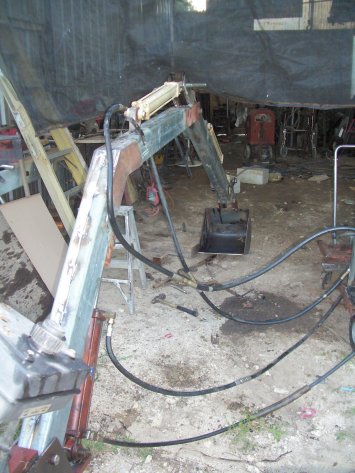

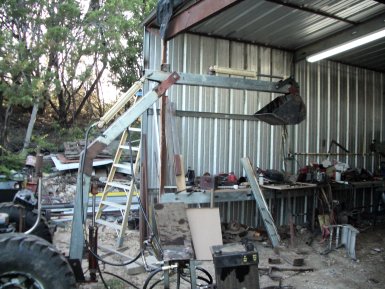

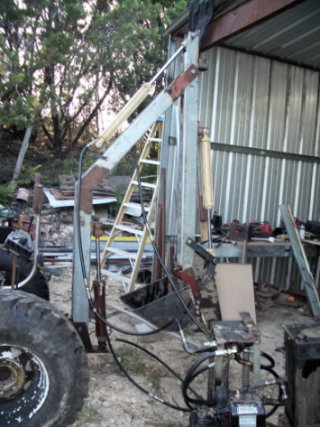

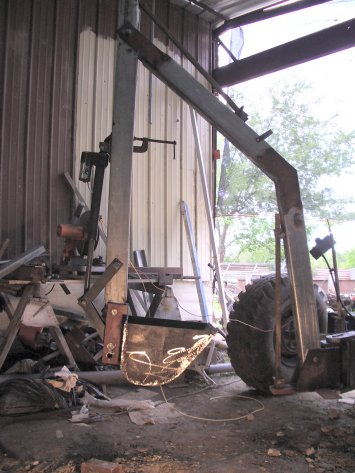

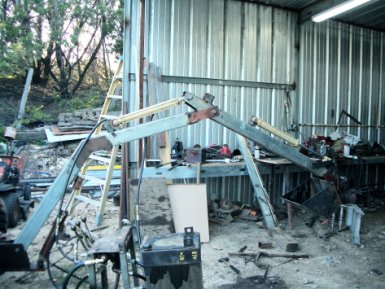

Looking good. I took a look at those plans and loaded the dimensions into autocad this evening to see how I liked the plan and also to see how difficult it would be to adapt it to a frame mount for my tractor(don't want to pay $3.5K+ for a hoe) One think I don't like are the cylinder tabs in the middle of the boom sidewall. The tabs have a pretty good footprint at 1" X 3", but it is placing a lot of side or shear load on that quarter inch tube wall. If I build it, I think I would add triangular side plates that come up alongside the tabs and use a longer pin that engages all three tabs. This will spread the load to the stronger side walls. Back at the bend in the main boom, I think I would incorporate a larger triangular or diamond shaped plate on both sides that did this as well as gussetted/reenforced that welded joint. I see you added side reenforcement plates over that welded bend. I also see that you went with a shorter boom lift cylinder and moved the attachment down below the bend. I think that will put more stress on that bend joint. Did you do this because you already had the cylinder, or for some other reason? Unless you are trying to pull stumps straight up, I guess all that bend has to really do is lift the dipper and bucket and maybe break a bit of soil upward at the near end of the ditch. That different leverage point closer to the boom pivot point may lower your available boom lifting force.
With a frame mount, I think I can incorporate a lifting mechanism for transport using my 3PH lift arms. I have nearly 5.5GPM available from my pump so that is a little over 5 seconds to fully extend a 3" X 16" cylinder under light load.
DId you make any mods to the swing cylinder configuration from the plans? Playing around with the dimensions given for the pivot and cylinder mounting brackets, it looks as if it will be able to swing quite a ways to the left(80-90 degrees) when the cylinder retracts, but only about 54-55 degrees to the right before the cylinder rod starts to interfere with the pivot point.
Please keep the pics comming, I am very interested how it works out for you.
With a frame mount, I think I can incorporate a lifting mechanism for transport using my 3PH lift arms. I have nearly 5.5GPM available from my pump so that is a little over 5 seconds to fully extend a 3" X 16" cylinder under light load.
DId you make any mods to the swing cylinder configuration from the plans? Playing around with the dimensions given for the pivot and cylinder mounting brackets, it looks as if it will be able to swing quite a ways to the left(80-90 degrees) when the cylinder retracts, but only about 54-55 degrees to the right before the cylinder rod starts to interfere with the pivot point.
Please keep the pics comming, I am very interested how it works out for you.
dtd24
Gold Member
Wow, huh!!! Thats a neat website. It's funny alot of those have some old dates to them. Good Luck!
Ron, I very loosely followed those plans as the only thing I've bought was steel for the bucket. The swing pivot plates are 1" thick with all pins except for cylinders being 1 1/8" and 3/8" inside gusset plates in booms. I am using 3/8" gussets also at cylinder tabs also as I had the same concerneds as of strenth. I found out that the swing was limited to one side and am working that out now in my mind as the only engineering training i have is sdadetree.

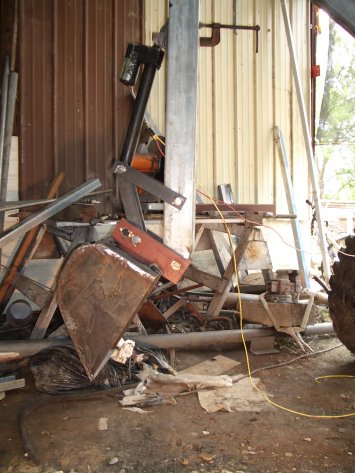

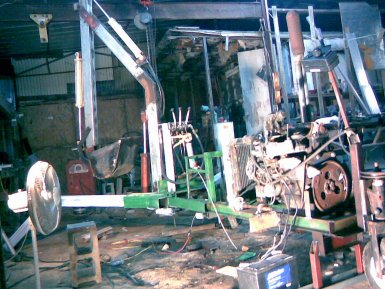

At this time I see this changing to subframe mount to first mount on my VAC Case
More to come..
At this time I see this changing to subframe mount to first mount on my VAC Case
More to come..
Nat
Platinum Member
Cletus, you said to notice the clean cuts with your skillsaw and I did. They look good to me. Are you using an abrasive blade or one of the "cold cut" blades? I use a A/C torch and a DeWalt chop saw, but want a "cold cut". I was just wondering which you use. later, Nat
