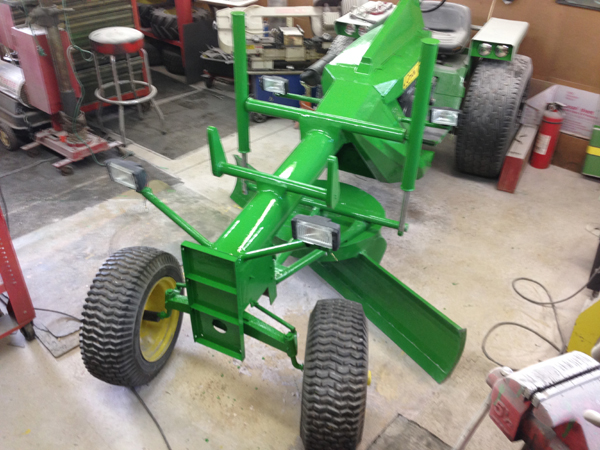

Mini Road Grader / Garden tractor Project

[Waldon52]

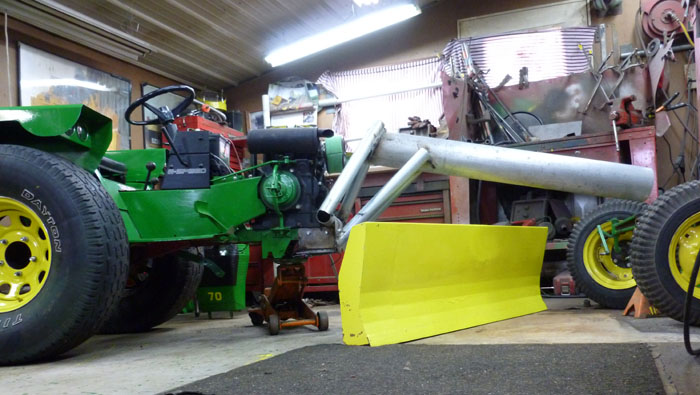

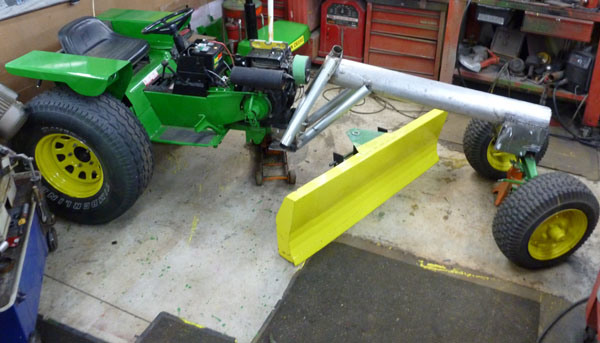

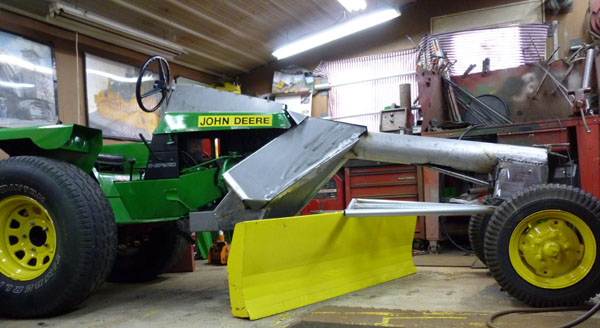

Todays picture shows the front tube section now bolted to the rear frame . Now I will design the parts to attach the front axle to the frame.



[Renze]

The municipality in the town i work, hires a local contractor with an extended NH with belly mounted grader and a rotavator on the back to chop up berms and grass grown ridges. Seems to me like an effective setup for sand road and roadside maintenance, we hardly have gravel roads here so they dont need the weight to cut hard packed gravel anyways..

http://bosbolsward.nl/content/image/a551cdded8fcace3631b6bcc172942d8.jpg



[Waldon52]

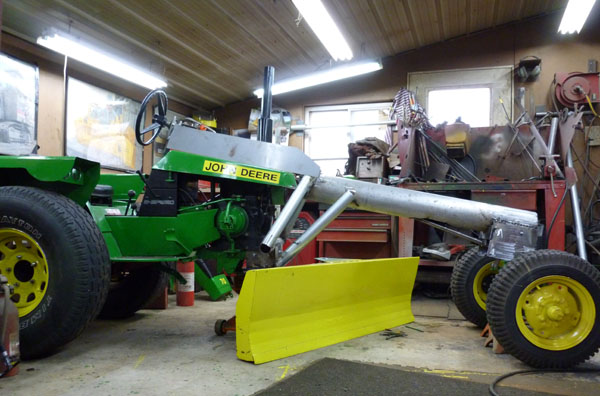

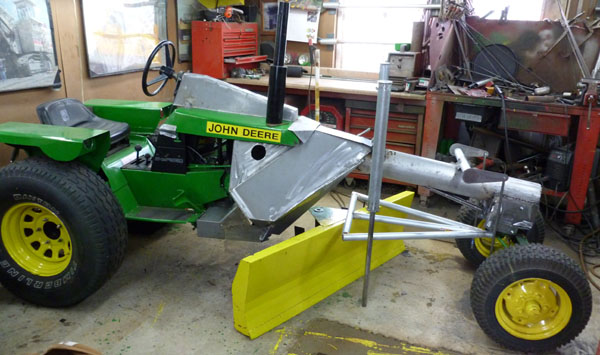

Todays progress pic shows the parts cut out and welded to connect the front axle . Next I will work on the steering and beef up the center of the frame more.



[Looking4new]

Are you going to put a turntable and side shift cylinders on it too? As well as the cylinders for crowning?



[Waldon52]

Not sure yet how I am going to do that .
Each day I just go out and do one part of it , not to the blade ideas yet.

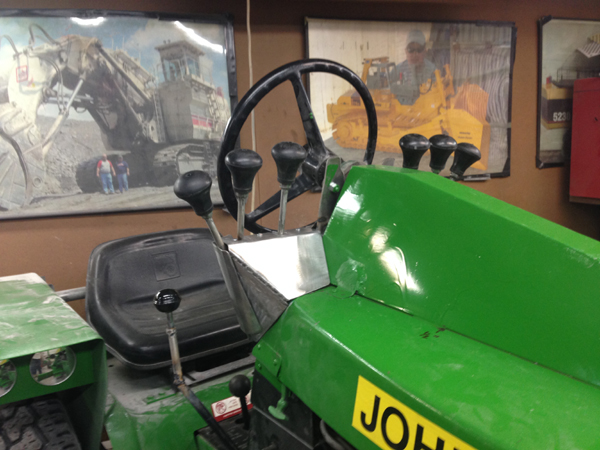

Yesterday I spent the whole day redesigning the steering system. I got it done last night and it steers great:cool2:
Now today I will get back to beefing up the center of the frame.
Here is a picture of one of my handbuilt steel models of a grader I built a few years ago.



[Waldon52]

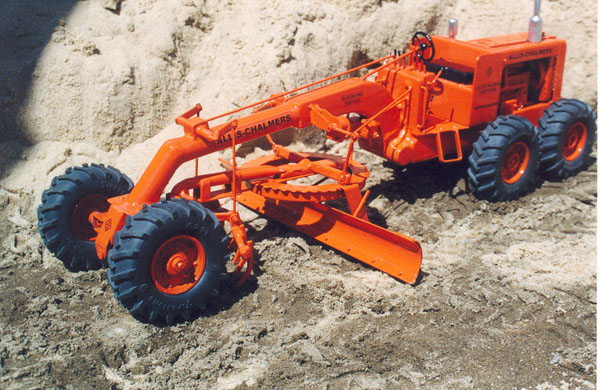

whoops , here is the all steel hand built grader model I made a few years ago.



[Waldon52]

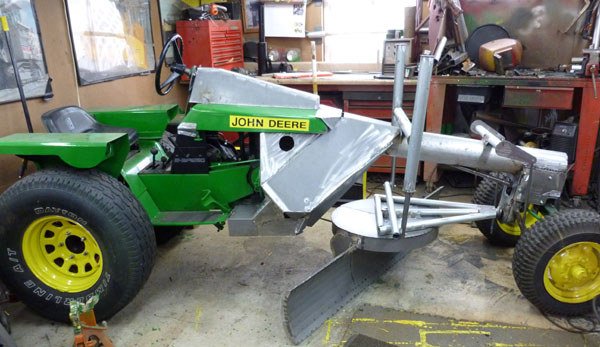

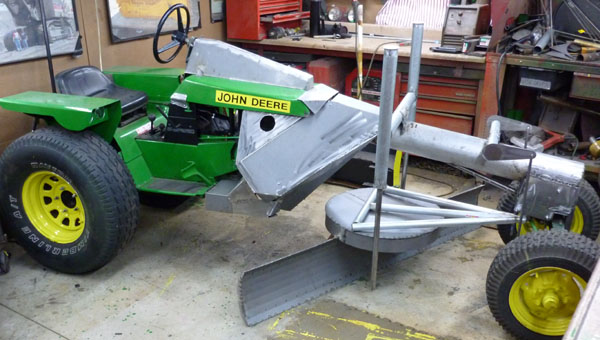

Today I beefed up the grader frame . I also got most of the deere herd and lined them up in my
backyard. :ashamed:



[Waldon52]

second view



[bakerg]

Just love your miniatures.:thumbsup:



[Green Power]

Great looking fleet Waldon!
