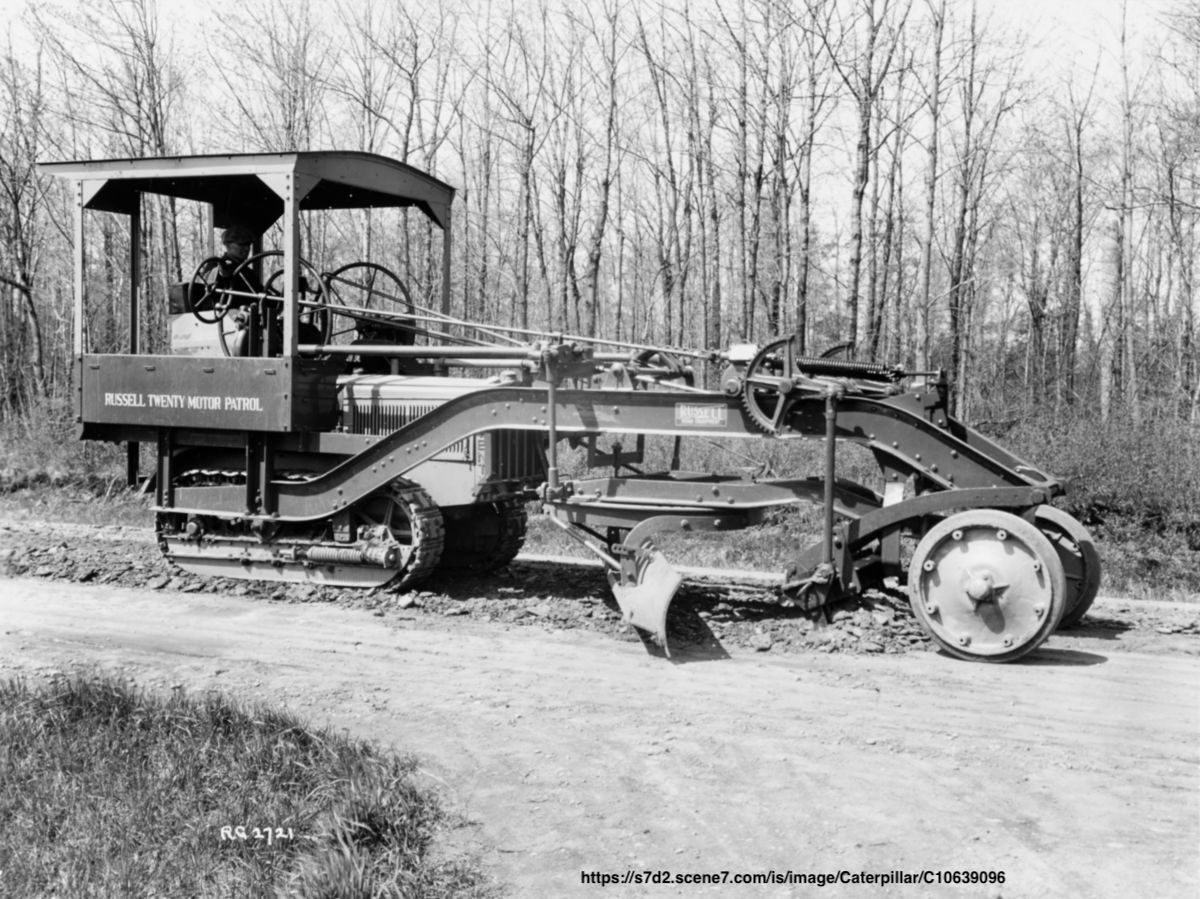

Tracked road grader

   #1

bcp

Super Star Member
Joined
Jul 8, 2009
Messages
10,769
Location
SW WA
Tractor
Kubota BX2360


Bruce

   #3

TractorGuy

Elite Member
Joined
Sep 15, 2013
Messages
4,106
Location
N. FL
Tractor
John Deere 4310 CUT, Ford New Holland 575E Industrial Backhoe, John Deere F725 Front Mount Mower
Interesting machine.

Doesn't look like it is grading much.

   #5

Diggin It

Super Member
Joined
Aug 12, 2018
Messages
9,403
Location
On A Hilltop
Tractor
LS MT125 TLBM
Two minutes searching tells me Russell Motor Patrol was the prototype for what we see today and was acquired by Caterpillar. The grader front end was added onto an AC tractor.

   #6

oosik

Super Star Member
Joined
Aug 22, 2012
Messages
14,440
Location
AMBER, WA
Tractor
2009 Kubota M6040
Wonder why he is ripping an otherwise pretty smooth road. Interesting machine.

   #7

Tinhack

Platinum Member
Joined
Jul 3, 2020
Messages
843
Location
Lytle, TX
Tractor
Ford 3910, John Deere 420C, Kubota G32XKS, IH 2606, Bad Boy Maverick-60"
That had to be a wicked machine to turn. I rented a Galion to do my driveway. Even that thing took about a quarter mile to turn. :eek:

And look at all the adjusting wheels! Ya gotta appreciate the hydraulics of todays machines. :thumbsup:

   #8

Tinhack

Platinum Member
Joined
Jul 3, 2020
Messages
843
Location
Lytle, TX
Tractor
Ford 3910, John Deere 420C, Kubota G32XKS, IH 2606, Bad Boy Maverick-60"
Wonder why he is ripping an otherwise pretty smooth road. Interesting machine.

It's probably NOT smooth. Looks like he's already been down that side once. I have to do the same thing with my driveway to get dirt/clay back where I want it. I usually have to wait for a light rain to soften it up. Or doze the wash-outs within a couple of days after a hard rain.

   #9

Egon

Epic Contributor
Joined
Aug 14, 2001
Messages
21,722
Location
Nova Scotia, Canada
Controls:
[video]https://www.google.ca/search?q=14+grader+controls&client=safari&hl=en-ca&source=lnms&tbm=isch&sa=X&ved=2ahUKEwiMn5uUmL7sAhWxnuAKHRwcBc0Q_AUoAXoECAwQA w&biw=1269&bih=830#imgrc=0ZanJAyAWcYi9M[/video]


ovrszd

Epic Contributor
Joined
May 27, 2006
Messages
28,917
Location
Missouri
Tractor
Kubota M9540, Ford 3910FWD, Ford 555A, JD2210
Where to start. :)

He's using the scarifier, which is buried to the beam, to rip up the roadbed so the blade can then be used to distribute the material. Most old machines carried a scarifier because the machine didn't have the ability to tear up a solid roadbed.

The operator has a steering wheel to make small direction changes or corrections while grading. If the task is to turn around, the steering wheel will be used along with track clutches that disengage one track so the dozer is also wanting to turn the same direction. Even then it will require a lot of space and many forward/backword moves to turn around.

The two large control wheels by the operator raise and lower each end of the cutting blade. The small control wheel to his right side is used to raise/lower the scarifier.

There is a lever in front of the operator that is used to release a latch pin which holds the cutting blade in an angled position. Once this pin is released ground pressure is used to change the angle of the blade. Then reset the latch pin to hold it there.

The blade table can be repositioned under the machine to do ditch work by mechanically removing fasteners and then using the machine to push the table to the position required.

The blade can also be unfastened from the table and shifted to either side for similar tasks as ditching or reaching far outside the track of the machine.

Pretty crude but considered a Cadillac in it's day!!! I started running a grader 32 years ago. A CAT 12 machine with mechanical blade controls. Compared to today's machine it was about as effective as dragging a chicken backwards down the road....

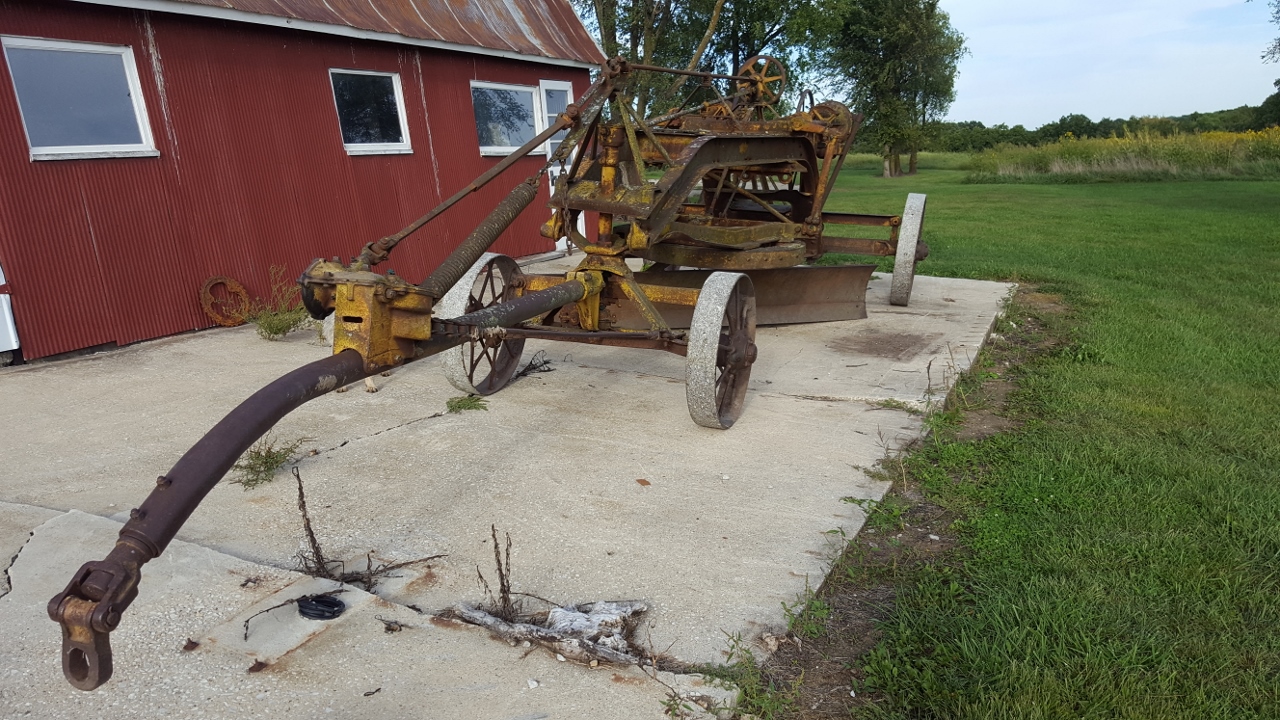

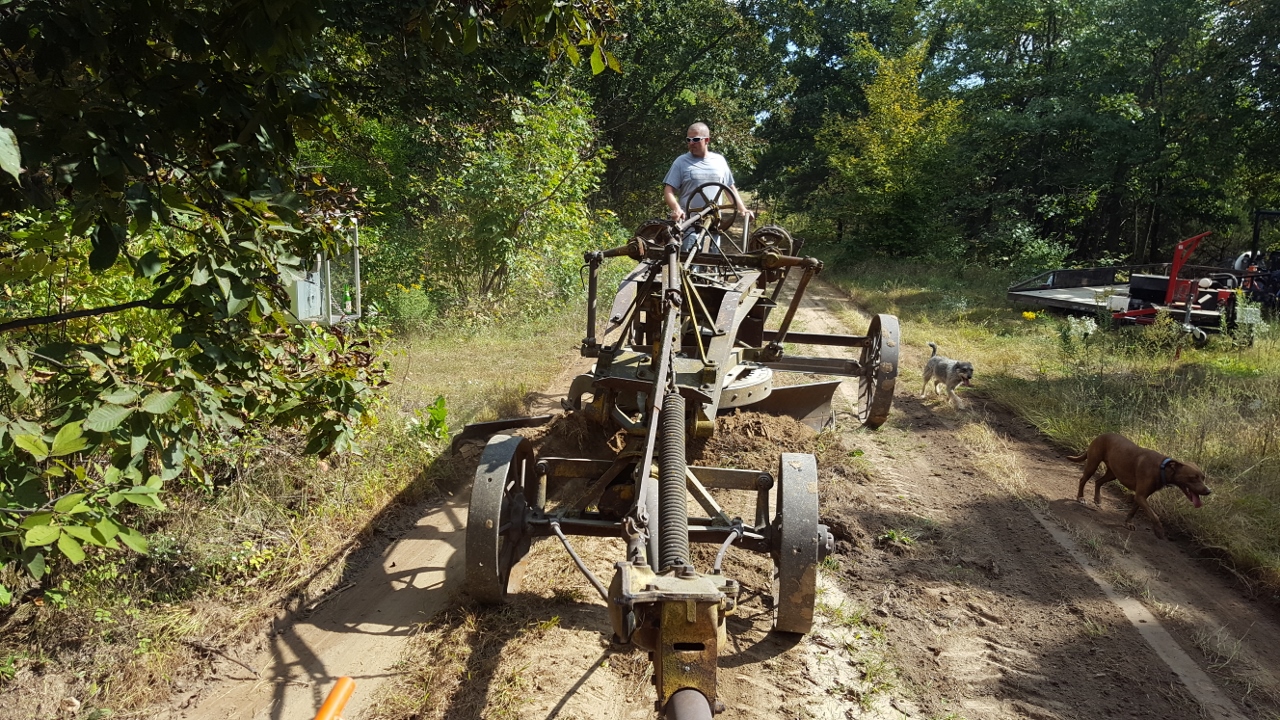

Here's a predecessor to the pictured grader above. This was pulled my a dozer. I bought it out of an iron scrap yard. It's a CAT Model 34. Same controls as mentioned about just different power source. I put my Son on it one day and pulled him around for a couple hours. He decided the men that ran these all day were very tough. :)
