Bridge for ATV

   / Bridge for ATV
  • Thread Starter
#101

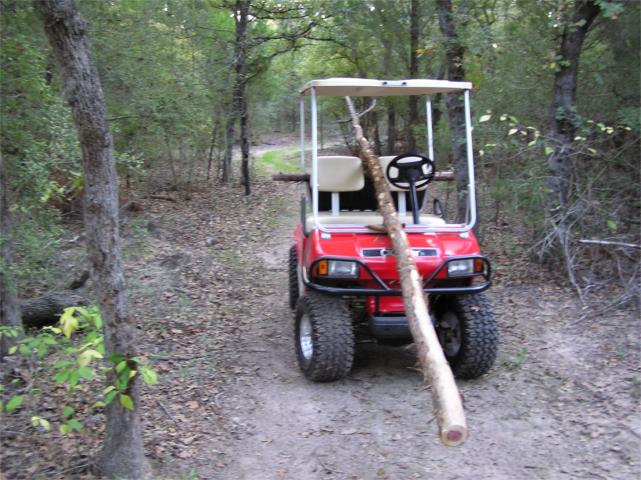

It was trimmed up and hauled to the bridge.


Attachments

  • 517985-railclubcar.jpg
    66.8 KB · Views: 504
   / Bridge for ATV
  • Thread Starter
#102

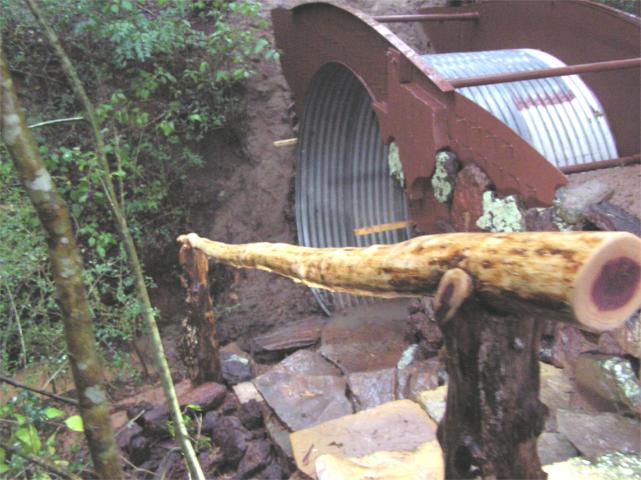

The tree was sanded and mounted on post on the side of the rock stairs.


Attachments

  • 517986-woodrail.jpg
    54.2 KB · Views: 1,028
   / Bridge for ATV
  • Thread Starter
#103

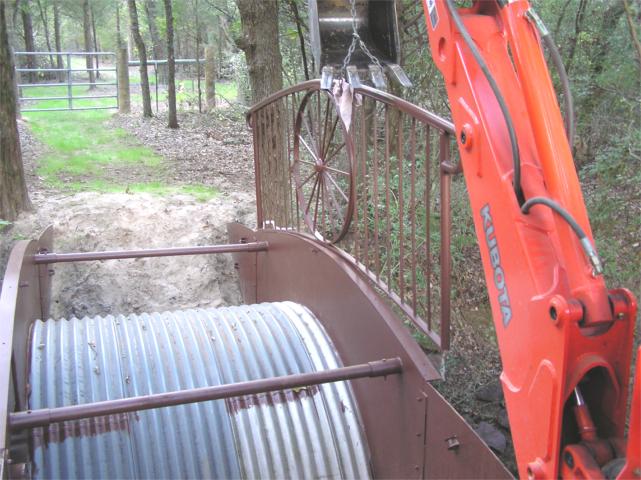

The wagon wheel rail was picked up with the backhoe and lowered to the bridge. There is a tree which we call the goat head tree, and it was keeping the rail from being level.


Attachments

  • 517987-tractorlowerrail.jpg
    61 KB · Views: 476
   / Bridge for ATV
  • Thread Starter
#104

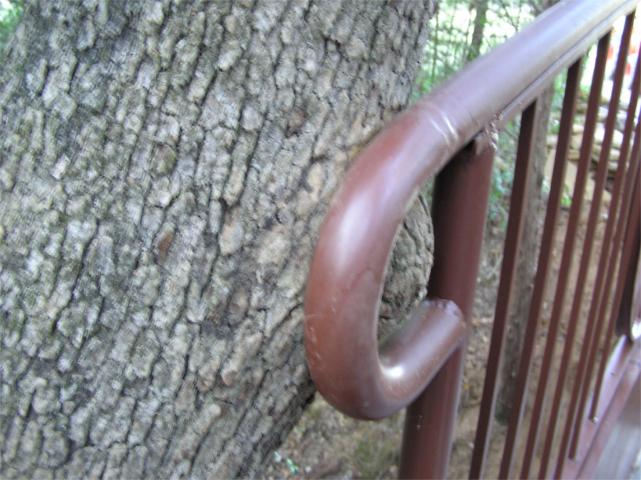

After failed attempts to move the culvert, the rail was mounted anyways and because the knob of the tree landed right in the middle of the rail end loop the level was only off by 3/4".


Attachments

  • 517988-treeknob.jpg
    55.6 KB · Views: 512
   / Bridge for ATV
  • Thread Starter
#105

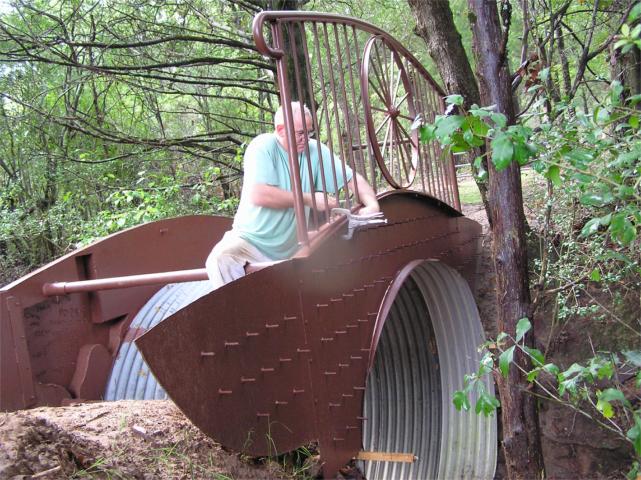

The rail was bolted to the base.


Attachments

  • 517989-bolton.jpg
    81.6 KB · Views: 472
   / Bridge for ATV
  • Thread Starter
#106

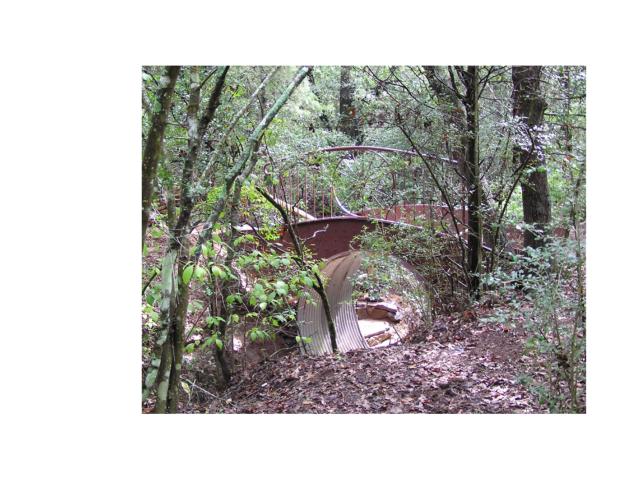

The other rail will have to wait till next week. This is the view from upstream. /forums/images/graemlins/smile.gif


Attachments

  • 517990-upstreamrail2.jpg
    59.8 KB · Views: 468
   / Bridge for ATV
  • Thread Starter
#107

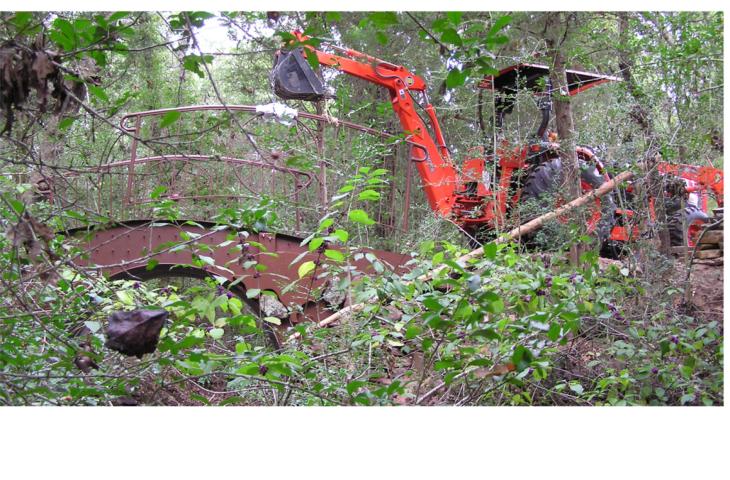

New week. The second rail is moved to be set in place with the BH.

(note- these are different photos from the ones in the meetings and get together section. The snake pictures are omitted here.) /forums/images/graemlins/smirk.gif


Attachments

  • 522022-3rail1one.jpg
    95.9 KB · Views: 370
   / Bridge for ATV
  • Thread Starter
#108

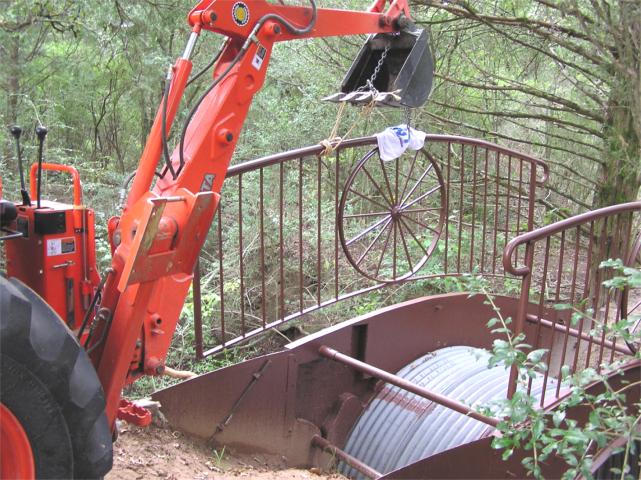

The rail is set in place.


Attachments

  • 522025-3rail2.jpg
    80.6 KB · Views: 370
   / Bridge for ATV
  • Thread Starter
#109

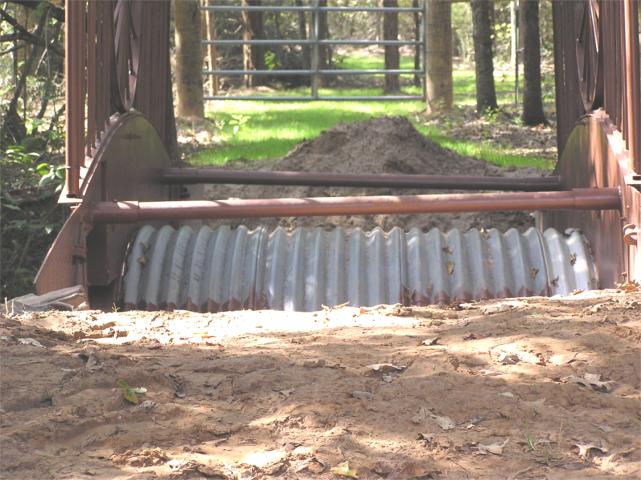

The level is checked, again, and the lower left side needs to be raised as this photo shows.


Attachments

  • 522029-3rail3.jpg
    62.9 KB · Views: 397
   / Bridge for ATV
  • Thread Starter
#110

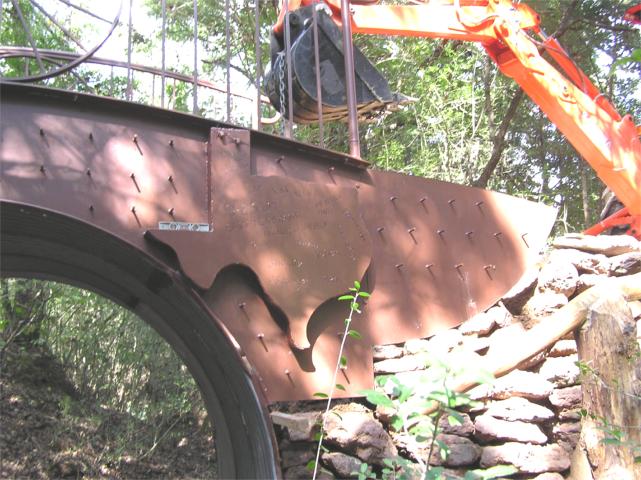

The BH is utilized again and the bridge is leveled.
The rock ends on three edges up to the base of the bridge need to be rebuilt - moved a foot out and up to the bridge base and wings. These rock footings were put in place before the metal bridge idea was formulated. The corner rocks are in the process of being dug out and re-stacked.


Attachments

  • 522034-3rail4.jpg
    68.9 KB · Views: 422
