This is how a rotor is balanced , with the knives/hammers attached .
YouTube - Baler Shredder Balancing.MOV
YouTube - Baler Shredder Balancing.MOV
Flail Mower Let's talk flail mowers
- Thread starter TNhobbyfarmer
- Start date
- Views: 3298738
IslandTractor
Super Star Member
- Joined
- Sep 15, 2005
- Messages
- 15,802
- Location
- Prudence Island, RI
- Tractor
- 2007 Kioti DK40se HST, Woods BH
The question is what is the advantage of such a system over one that is symmetrical and therefore inherently balanced.
IslandTractor
Super Star Member
- Joined
- Sep 15, 2005
- Messages
- 15,802
- Location
- Prudence Island, RI
- Tractor
- 2007 Kioti DK40se HST, Woods BH
Let's be kind to our unbalanced friends.
Eagleview
Veteran Member
We will have to wait for a manufacturer to chime in and explain , they are way smarter than me and they wouldn't go to all the trouble without a reason .
There are several different rotor designs , the Europeans seem to build them like mine . The Americans appear to build them with equal rows that may not need counterweights and then there is the Double helix type that is a screw type pattern that ensures only one hammer/knife set strikes at a time , reducing horsepower demands instead of having 7 sets striking at the same time zapping horsepower and using more fuel .
IslandTractor
Super Star Member
- Joined
- Sep 15, 2005
- Messages
- 15,802
- Location
- Prudence Island, RI
- Tractor
- 2007 Kioti DK40se HST, Woods BH
Caroni is an Italian brand so not all European flails are asymmetrical.
I replaced the knives on my ford flail mower last year. As I did I noticed what I thought was an unbalanced hack by a previous owner. So I removed the extra knife from the unbalanced row and the mower runs smoother than ever. YMMV
Eagleview
Veteran Member
Caroni use 4 different rotor configurations .
sodamo
Super Star Member
- Joined
- May 20, 2004
- Messages
- 15,822
- Location
- Big Island, HI
- Tractor
- LS XR4140H (Mine) BX2380 (wife’s)

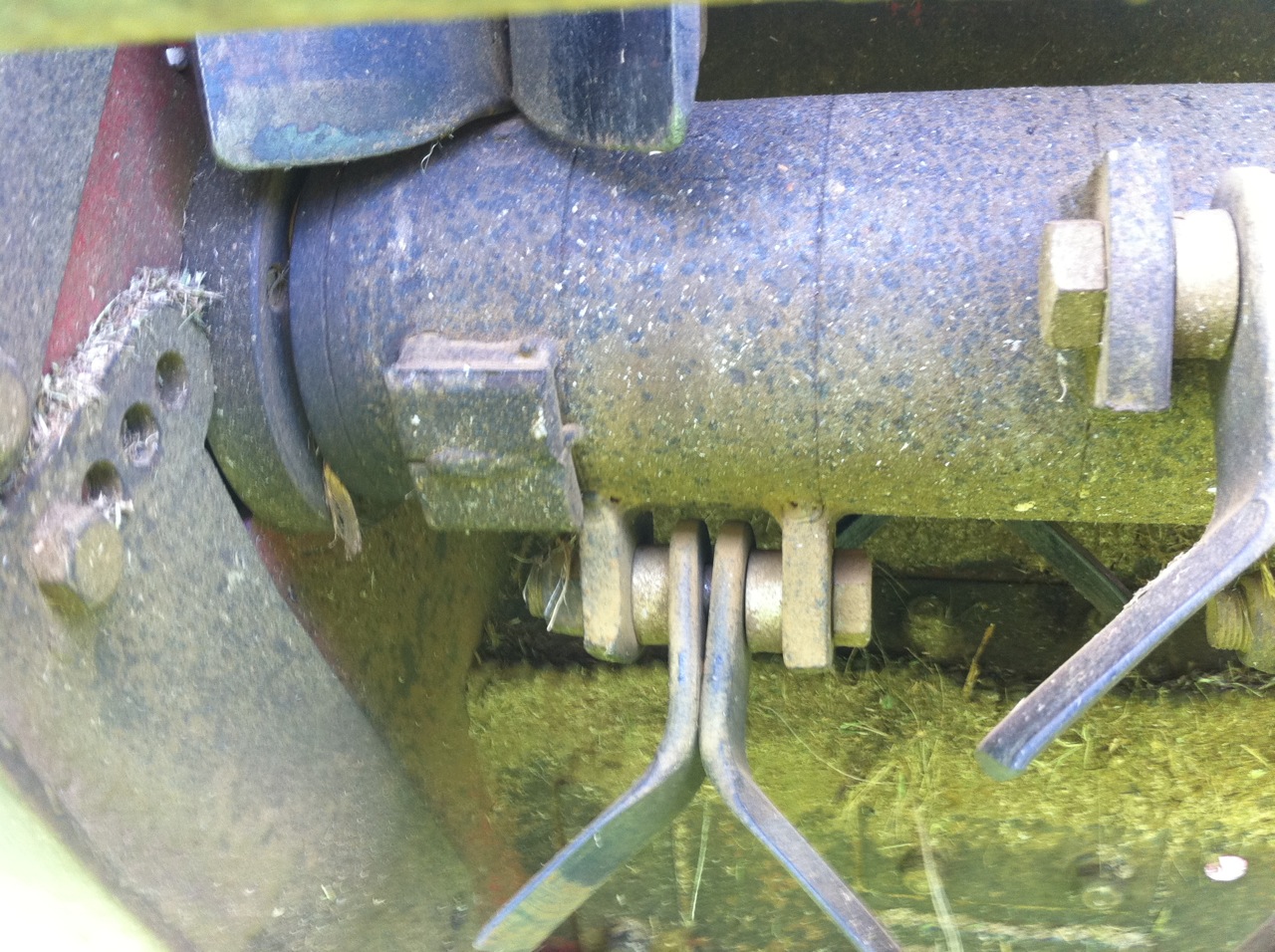

OK, I also got under mine a bit. Here are the pics.

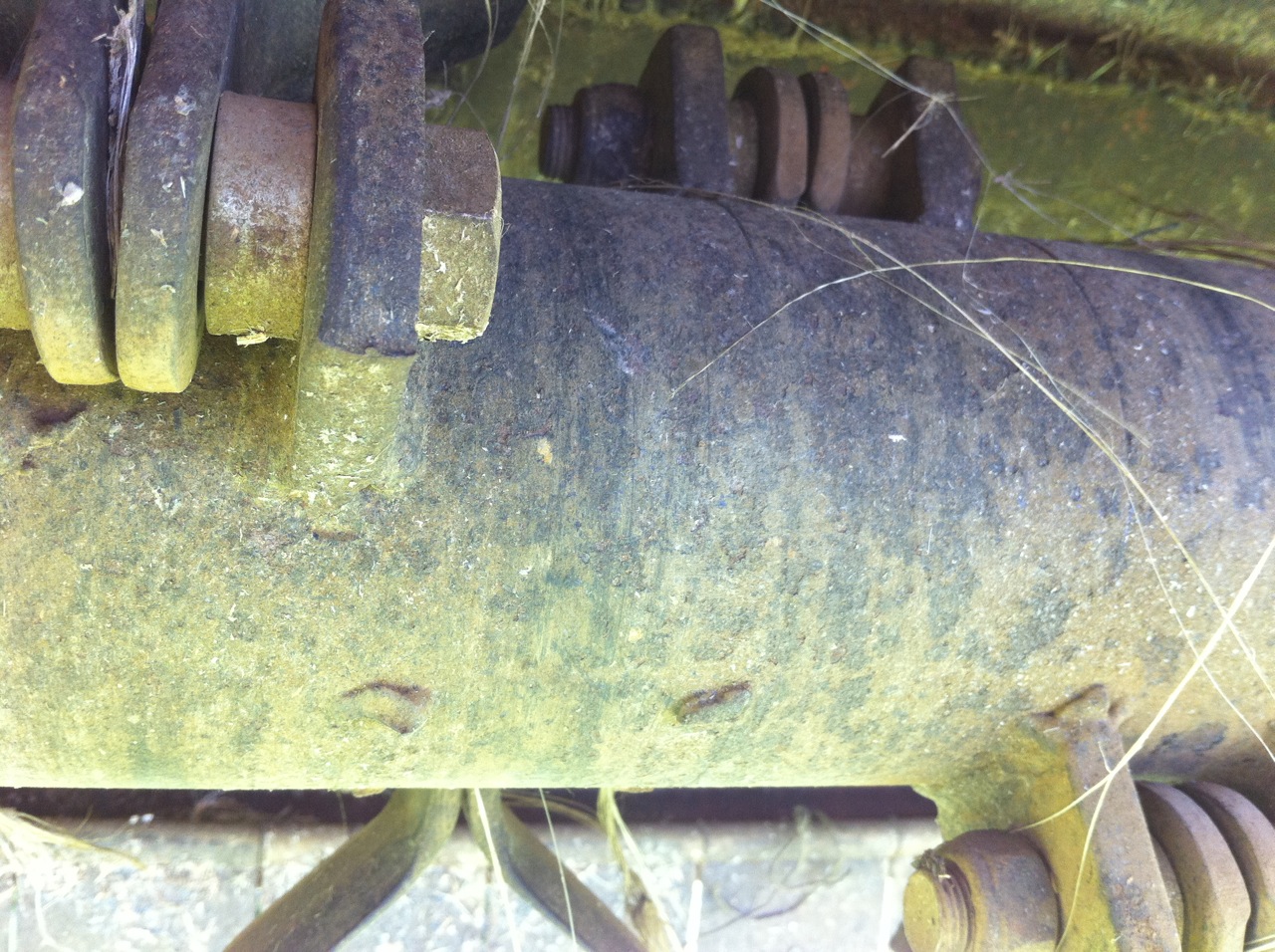

Appears to be some effort at balancing, 1- a small plate welded at one end of the shaft. 2 - 2 smallish beads about 1/3 distance the other end. Could be just sloppy welding, but the rest of the shaft is clean so these appear to be there on purpose.
As for knife weight... I don't have a scale, but I did fashion a "knife-edge" balance and my hammers are definitely heavier than the grass blades.

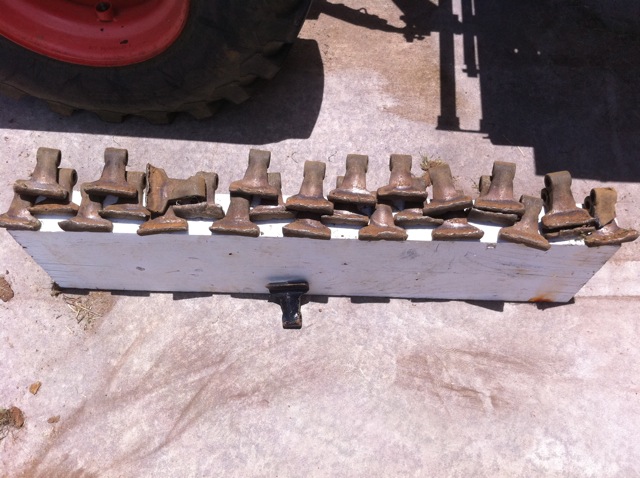

Overall, I consider mine to be quite tolerant. I really banged up my hammers before I replaced them. I only got a noticeable vibration if I severely damaged a hammer, note the one on top far right.
Appears to be some effort at balancing, 1- a small plate welded at one end of the shaft. 2 - 2 smallish beads about 1/3 distance the other end. Could be just sloppy welding, but the rest of the shaft is clean so these appear to be there on purpose.
As for knife weight... I don't have a scale, but I did fashion a "knife-edge" balance and my hammers are definitely heavier than the grass blades.
Overall, I consider mine to be quite tolerant. I really banged up my hammers before I replaced them. I only got a noticeable vibration if I severely damaged a hammer, note the one on top far right.
Attachments
Eagleview
Veteran Member
Thanks for going to the trouble , those small weights are what was put there at the factory to Dynamically balance the rotor with the knives they put on at that time . The replacement knives would be somewhere within the allowable weight specs so the mower should always run pretty good . The absence of any large counterweights is apparently because of the straight rows and even numbers of knives that are fitted . So I digress , some , flail mowers run straight rows of knives and some , run staggered which requires a counterweight and some run a double helix which run counterweights .
My Cabe's run a large one on each end , the Berti runs 3 smaller ones , one on each end and one in the middle and my FAE excavator mulcher runs 2 large ones on each end which is (i think) a double helix , they are all to compensate for the knife arrangement not only to take out any harmonics the rotors may have had at the factory .
My Cabe's run a large one on each end , the Berti runs 3 smaller ones , one on each end and one in the middle and my FAE excavator mulcher runs 2 large ones on each end which is (i think) a double helix , they are all to compensate for the knife arrangement not only to take out any harmonics the rotors may have had at the factory .
