The tractor has just over 900 hours on it. Only change recently is I put a 1/2 ton disc harrow on it. That's the heaviest I've ever carried on the TPH, but even with the extra length, well within the 2400 @ 24" rating for this tractor. I'll try to track/adjust that valve this weekend.
Three Point Hitch Pulsing
- Thread starter tinygiant
- Start date
- Views: 36143
jenkinsph
Super Star Member
With those hours and implement weight this would seem to be within the operating parameters of your tractor. Just be careful how you trouble shoot this so you don't get hurt. Note your starting points before changing settings and make small adjustments.
boggen
Elite Member
- Joined
- Feb 22, 2011
- Messages
- 3,789
- Location
- Trivoli, IL
- Tractor
- SSTT (Sideways Snake Tain Tractor) and STB (sideways train box) tractor, dirt harvester
www.jdparts.com
kinda middle and to the right, type in your model number and go from there.
it will give you "part diagrams" and part numbers. the diagrams may not be the best, but might help ya some.
a shop/service manual. should give you a much better exploded diagram of things. along with all the various specs / torque / tearing stuff apart / putting it back together steps.
kinda middle and to the right, type in your model number and go from there.
it will give you "part diagrams" and part numbers. the diagrams may not be the best, but might help ya some.
a shop/service manual. should give you a much better exploded diagram of things. along with all the various specs / torque / tearing stuff apart / putting it back together steps.

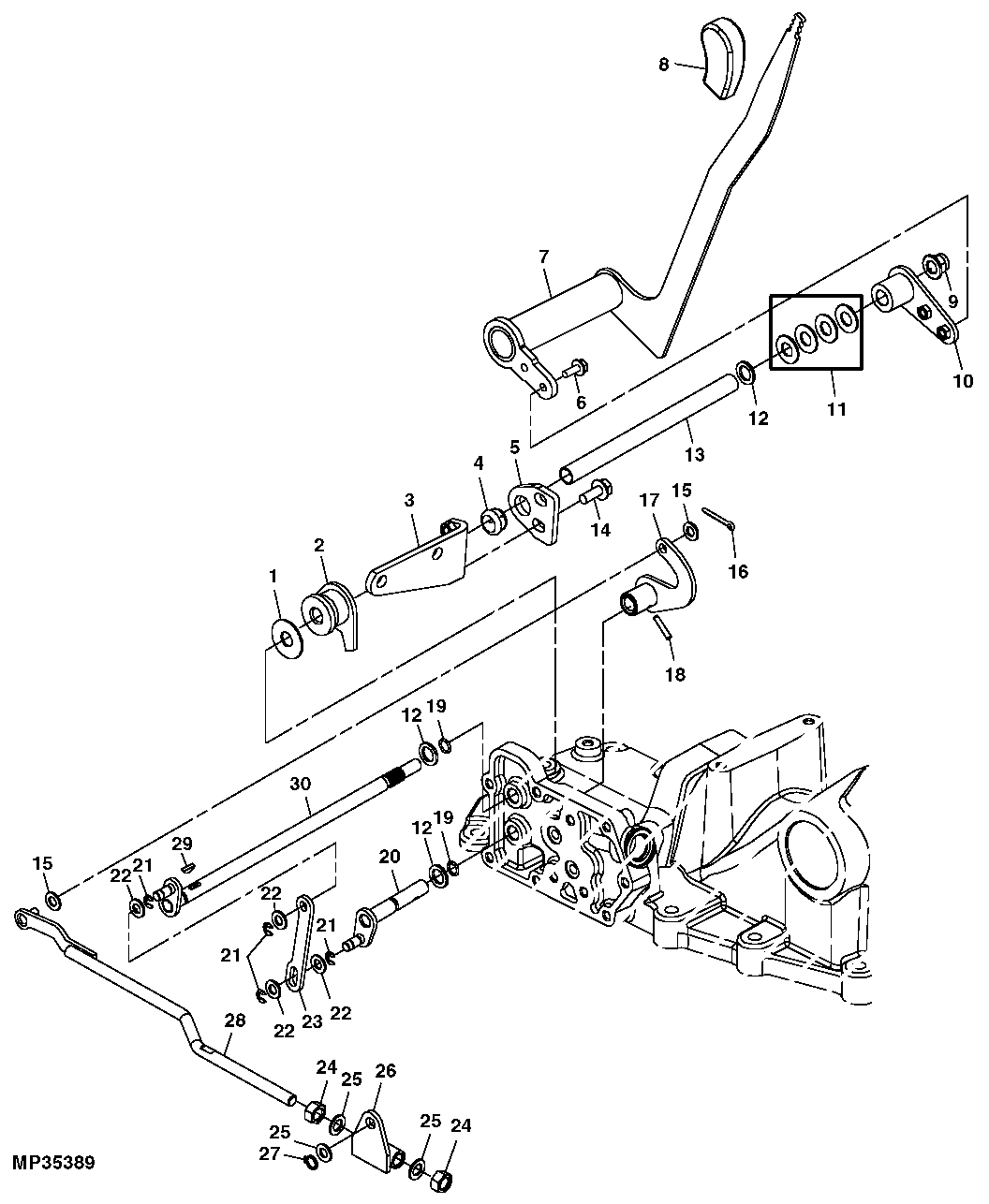

Using numbers off the attached image. The feedback rod (28) has no noticeable bending or other issues. I adjusted the location of the feedback rod by adjusting the nuts (24 x2) across the range of about an inch. This had no noticeable affect on the frequency of pulse. All this adjusted really did was change the height of the TPH lift arms compared to the setting of the control valve handle. The plate (26) is attached to the left TPH lift arm and provides the lift arm location to the feedback rod (28), which transfer that to the level (17). Allowing 26 to move forward lowers the attachment, but does not change the pulsating. Moving 26 backward raises the attachment, but does not change the pulsating. Moving the lever (17) toward the front of the tractor causes the TPH to rise, which is the exact same effect as allowing 26 to move toward the rear of the tractor.
What else can I try to adjust to see if an adjustment is the only issue before I have to tear into the rockshaft valve (something I'm really not looking forward to doing)? To provide scale, just about every part on this diagram is on top of the rockshaft valve, left side of the tractor, below the seat except for the control handle (7), which is on the right side of the seat and connected to everything on the left via part 13. Any additional expertise is greatly appreciated.
Thanks,
Ed
Tx Jim
New Member
Pulsing of 3 pt is caused from either a leaking 3 pt control valve or a leaking 3 pt rockshaft piston seal.
J_J
Super Star Member
- Joined
- Sep 6, 2003
- Messages
- 18,952
- Location
- JACKSONVILLE, FL
- Tractor
- Power-Trac 1445, KUBOTA B-9200HST
To check the leak on the 3pt cyl, raise the 3pt to max and turn the descent knob to close.
If the 3pt drops, it has to be the seals.
If the valve leaks, it seems like it would leak steady.
I would think something is trying to regulate the flow.
If the 3pt drops, it has to be the seals.
If the valve leaks, it seems like it would leak steady.
I would think something is trying to regulate the flow.
With the TPH fully raised and the ROD valve closed, the TPH maintains its height. With the TPH fully raise and the ROD open, the TPH drops from full height to ground in 4-6 seconds where it would normally maintain it's height when the tractor is turned off.
So, combining comments from J_J and TX Jim, I'd need to look at the seals in the control valve or rockshaft piston/control valve area. Sound about right? Looks like this might be delayed until I get the factory service manual in. There is no external hydraulic leak, so any busted seals must be internal to the system. I'll start looking for parts on the diagrams that could be the culprit.
Thanks for the inputs so far.
Ed
So, combining comments from J_J and TX Jim, I'd need to look at the seals in the control valve or rockshaft piston/control valve area. Sound about right? Looks like this might be delayed until I get the factory service manual in. There is no external hydraulic leak, so any busted seals must be internal to the system. I'll start looking for parts on the diagrams that could be the culprit.
Thanks for the inputs so far.
Ed
Tx Jim
New Member
If 3 pt stays up with R-O-D closed then RS piston seals should be fine. I'd suggest checking RS control valve for internal leakage.
New info. I creating a storage solution for the backhoe so I had to load it up today. Because of the problems with the pulsing, I closed the ROD completely when I lifted the BH. Upon lifting the backhoe to the highest position, with the ROD closed, it still pulsed, extremely slowly (maybe 1/4 Hz or once every four or five seconds). It didn't do this with lighter attachments. Makes me now suspect the ROD valve. Any thoughts on this additional info?
Thanks,
Ed
Thanks,
Ed
