Hi Jim. Chappell has a bunch of lights out front, but I didn't see any with the switch built in, maybe they are out back. Stop by and check out my installation. I will post pictures later. I did end up buying my lights from Chappel.
work light w/ switch
- Thread starter jimg
- Start date
- Views: 4644
Bob_Skurka
Super Member
- Joined
- Jul 1, 2003
- Messages
- 7,615
jimg & PineRidge . . . here is the link to my toolbox project for my TC24D. I have several pictures posted on the thread, look at the second and third postings, I believe you will see the light and the bracket. On the top of the light is the built in waterproof switch for the light. Sorry, but there is no view of the wiring.
Boomer Customer Toolbox with the NH rear Aux light mounted next to it.
Boomer Customer Toolbox with the NH rear Aux light mounted next to it.
Hi Jim, here is a link to a web site with some pictures of my setup.
Parts list:
1. Two Light switches
2. Lamp Cord, Black two line Home Depot
3. Black Zip Ties from Radio Shack
4. Black stick on Zip tie Hold Downs from Radio Shack
5. Angle iron
6. Two bolts/nuts Ace
7. Black Paint Chappel
8. Two lights
You can see the black zip tie hold downs holding the lamp cord to the ROPS in the pictures.
Lights on TC24d
Parts list:
1. Two Light switches
2. Lamp Cord, Black two line Home Depot
3. Black Zip Ties from Radio Shack
4. Black stick on Zip tie Hold Downs from Radio Shack
5. Angle iron
6. Two bolts/nuts Ace
7. Black Paint Chappel
8. Two lights
You can see the black zip tie hold downs holding the lamp cord to the ROPS in the pictures.
Lights on TC24d
PineRidge
Super Member
Hey pekabu thats a pretty nice looking project. Is that a TSC lamp?
Bob_Skurka
Super Member
- Joined
- Jul 1, 2003
- Messages
- 7,615
pekabu...on your switches, I have a couple of the same ones and will be using them for my ROPS lights, they have 3 contacts on the back of them, but they did not come with instructions on how to connect them. Can you tell me what wire you connected to which contact? Positive to ? Negative to ? Ground ? etc . . .
OP
jimg
Veteran Member
- Joined
- Jun 5, 2003
- Messages
- 2,039
Heres the postmortem on how it all worked out:
First, I really liked some of the DIY configurations presented in this thread but Im terribly pressed for time at the moment. So, I opted to go w/ the NH parts instead of rolling my own. Thank you very much to all who responded!
The parts you need are:
1) mounting bracket SBA355761281
My dealer doesnt stock this part and special ordered it. Oddly enough the brack is made in Japan! Dont we make anything here anymore????
2) Light w/ built in switch...made by Speaker. The label reads 900F-1/H9406-12
V AGRI-BRITE
1229985
Molded into the plastic case is PN 6342340.
Not sure which part of that the NH dealer uses as a part no. The light comes w/ a loop connector for ground, and male & female push connectors for the hot lead. Additonally the lamp is mounted on a bracket that allows horizontal and vertical movement.
How to wire it:
My tractor (TC24D) is prewired for a worklight on the left fender. First, strip and crimp the male push connect to one of the leads coming out of the work light. Strip and crimp the loop connector onto the other. The loop connector isnt big enough to let the ROPS bolt thru so I expanded it by making a cut in it then pulling the halves gently outward. Attach the mounting braket to the lamp and tighten. Undo the rear interior ROPS bolt on the left side of the tractor. Slip the bolt thru the mounting bracket, loop connector and then into the fender. Rethread the bolt/lock washer and tighten. Take the rubber guard off the prewired work light lead and push the connectors together. Youre done.
This light is nice and bright (as much as I could determine in full day light) and looks like its in a useful location. We're supposed to get snow again this w/e so Ill let you know how well it all works out if Im out after dark.
First, I really liked some of the DIY configurations presented in this thread but Im terribly pressed for time at the moment. So, I opted to go w/ the NH parts instead of rolling my own. Thank you very much to all who responded!
The parts you need are:
1) mounting bracket SBA355761281
My dealer doesnt stock this part and special ordered it. Oddly enough the brack is made in Japan! Dont we make anything here anymore????
2) Light w/ built in switch...made by Speaker. The label reads 900F-1/H9406-12
V AGRI-BRITE
1229985
Molded into the plastic case is PN 6342340.
Not sure which part of that the NH dealer uses as a part no. The light comes w/ a loop connector for ground, and male & female push connectors for the hot lead. Additonally the lamp is mounted on a bracket that allows horizontal and vertical movement.
How to wire it:
My tractor (TC24D) is prewired for a worklight on the left fender. First, strip and crimp the male push connect to one of the leads coming out of the work light. Strip and crimp the loop connector onto the other. The loop connector isnt big enough to let the ROPS bolt thru so I expanded it by making a cut in it then pulling the halves gently outward. Attach the mounting braket to the lamp and tighten. Undo the rear interior ROPS bolt on the left side of the tractor. Slip the bolt thru the mounting bracket, loop connector and then into the fender. Rethread the bolt/lock washer and tighten. Take the rubber guard off the prewired work light lead and push the connectors together. Youre done.
This light is nice and bright (as much as I could determine in full day light) and looks like its in a useful location. We're supposed to get snow again this w/e so Ill let you know how well it all works out if Im out after dark.
PineRidge
Super Member
Jimg if you can post a picture of your mounted work lamp we would like to see it. Thanks!
OP
jimg
Veteran Member
- Joined
- Jun 5, 2003
- Messages
- 2,039
One pt I forgot to make...I think the loop connector really was meant to be attached to the threaded barrel coming out of the lamp (the one w/ the wires running thru it). I opted to apttach it to the ROPS bolt. Anyplace would be fine just as long as its attached to ground. So, its not strictly necessary to expand the loop connector like I did.
OP
jimg
Veteran Member
- Joined
- Jun 5, 2003
- Messages
- 2,039

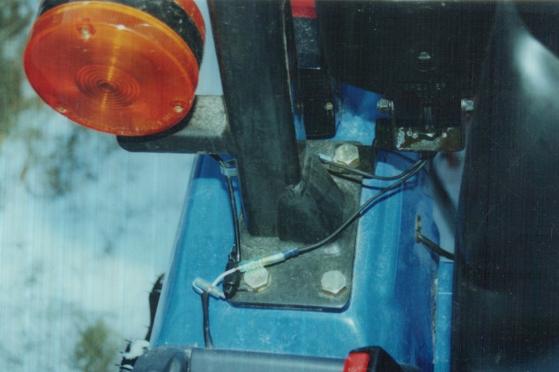

Heres a picture of the wiring. Im planning to reroute ground though to the threaded barrel on the lamp. Locating it there will keep it out of the way.
Tonight when I got home (after dark...in NE in the winter it always seems to be after dark) I tryed out the light. WOW!! Its nice and bright for sure.
