Grapple For BX23

   / Grapple For BX23 #21
Ok I got it installed on saturday and used it a couple of hours on sunday. Here is the grapple open.


Attachments

  • 770981-P1010304.jpg
    93.9 KB · Views: 541
   / Grapple For BX23 #22

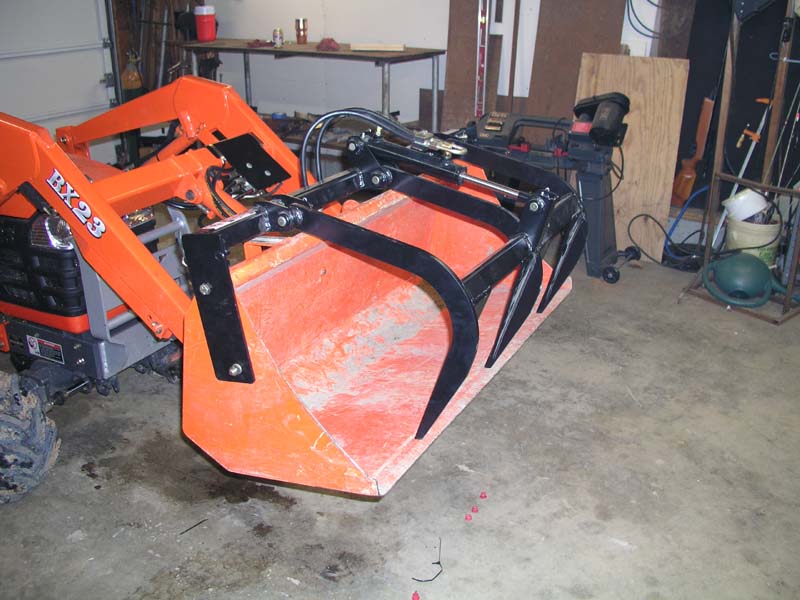

Here it is closed.
Don't pay any attention to the messy dirty shop. Or the dirty tractor.


Attachments

  • 770983-P1010305.jpg
    92.7 KB · Views: 509
   / Grapple For BX23 #23

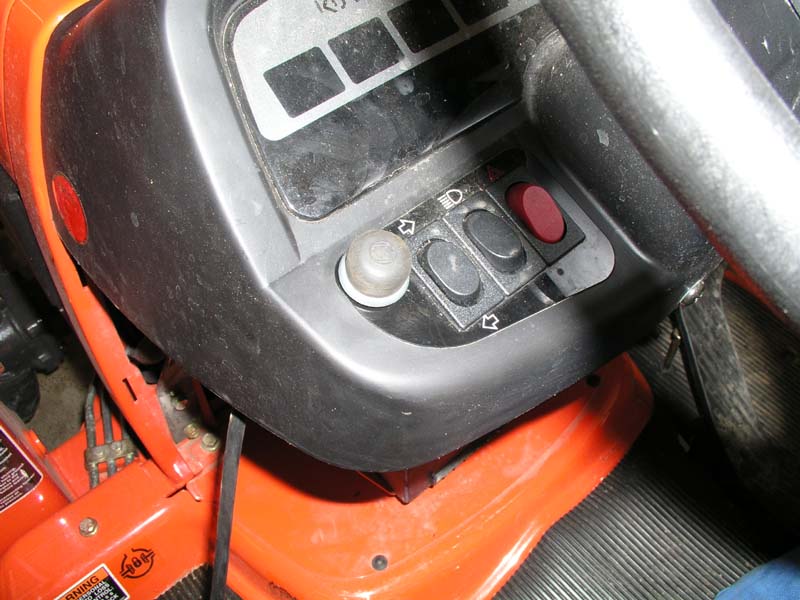

Here is the switch that actuates the diverter valves.
It works well but
I think I will make a bracket and mount a momentary switch on the control handle, I think I will be a little more proficient that way.


Attachments

  • 770987-P1010296.jpg
    90.6 KB · Views: 494
   / Grapple For BX23 #24
Cool grapple!!!
In the future, please use circles and arrows to point out the messy dirty shop and dirt tractor. I could not find them /forums/images/graemlins/wink.gif
Everything you've got is cleaner than anything in my dust bowl !!!
Cheers!

   / Grapple For BX23
  • Thread Starter
#25
Very nice.

   / Grapple For BX23 #26

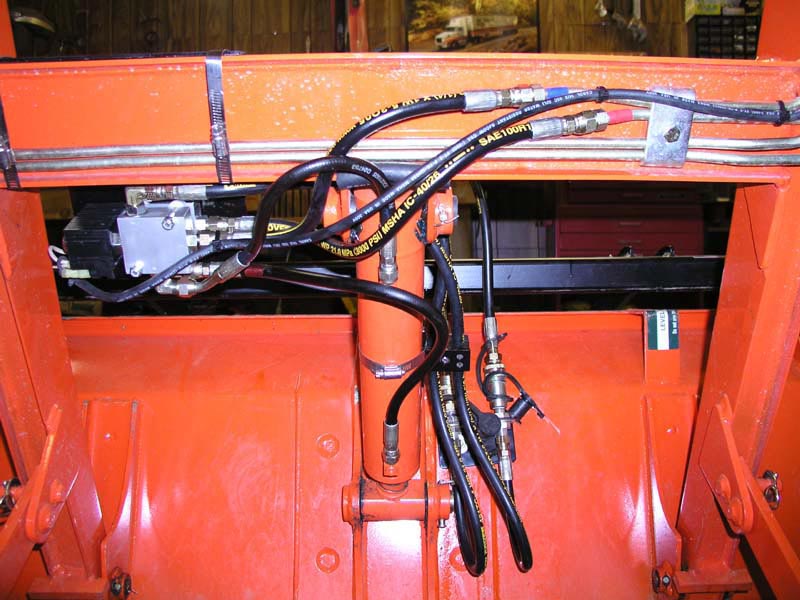

Here are the diverter valves and some of the plumbing.
I think I can play with them and get them to lay down better.
(got in a hurry to use it) /forums/images/graemlins/grin.gif /forums/images/graemlins/grin.gif


Attachments

  • 770994-P1010299.jpg
    85.8 KB · Views: 459
   / Grapple For BX23 #27
ok Now for the fun, er, uh, gotta go to work now.

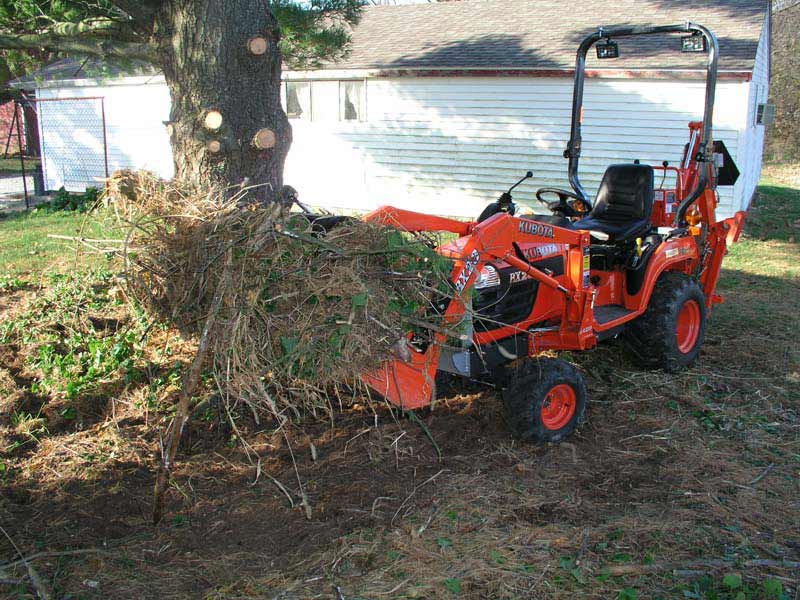

Big mouth full of suff from under a storm damaged pine tree.


Attachments

  • 771000-P1010315.jpg
    94.3 KB · Views: 485
   / Grapple For BX23 #28

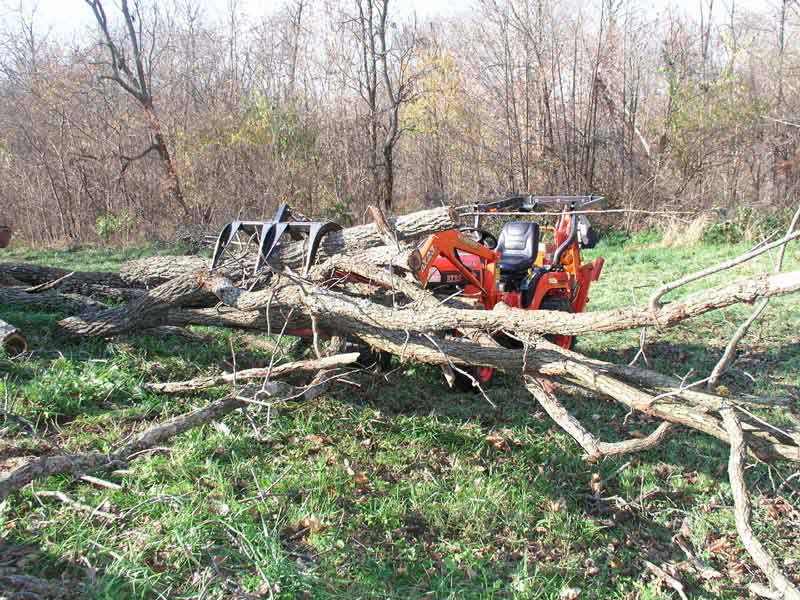

bunch of branches from tree that I cut down last week.


Attachments

  • 771001-P1010314.jpg
    86.5 KB · Views: 439
   / Grapple For BX23 #29

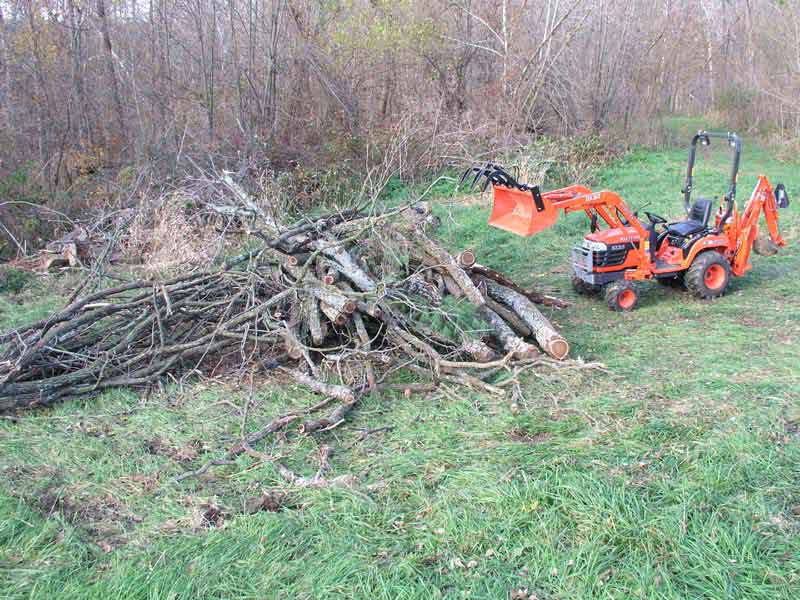

Pile that I made pretty fast considering I was stopping to take pictures all the time /forums/images/graemlins/grin.gif
Took about an hour


Attachments

  • 771005-P1010318.jpg
    74.5 KB · Views: 443
   / Grapple For BX23 #30

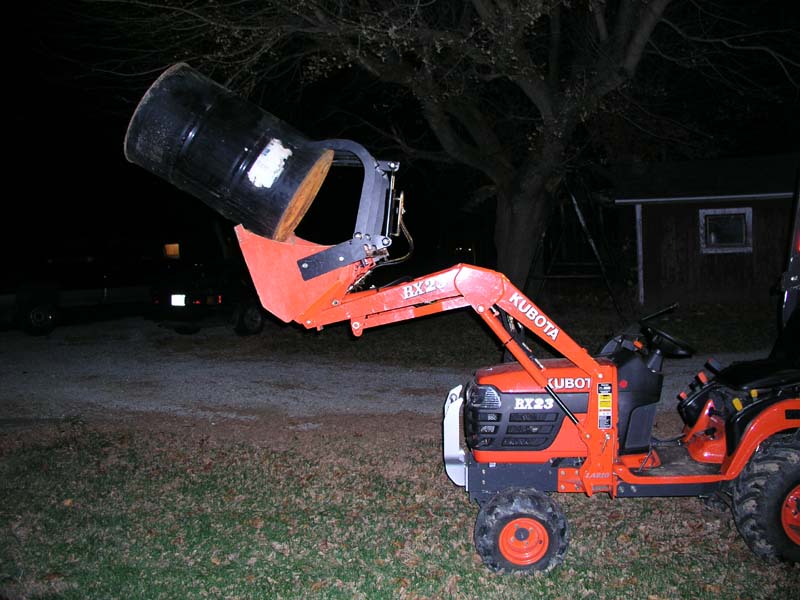

Last one for tonight.
Mini-Botasaurus is thirsty after a hard day at work.


Attachments

  • 771006-P1010308.jpg
    93.3 KB · Views: 471
