MODIFY BRUSH HOG SOME MORE

[3RRL]

Well, I've decided to end this thread with the final modifications to the brush hog as I started out to do. I know I deviated from the original idea to make these guage wheels Quick Attach onto other implements, so instead of adding all that in this thread, I feel a new thread is in order to tell all about the Quick Attach guage Wheels as a stand alone unit.

You can go here to follow the outcome of how they are used on both the Brush Hog and the Boxblade.

Hyd Quick Attach Guage Wheels

In the meantime, here are the final steps to complete the brush hog mods.

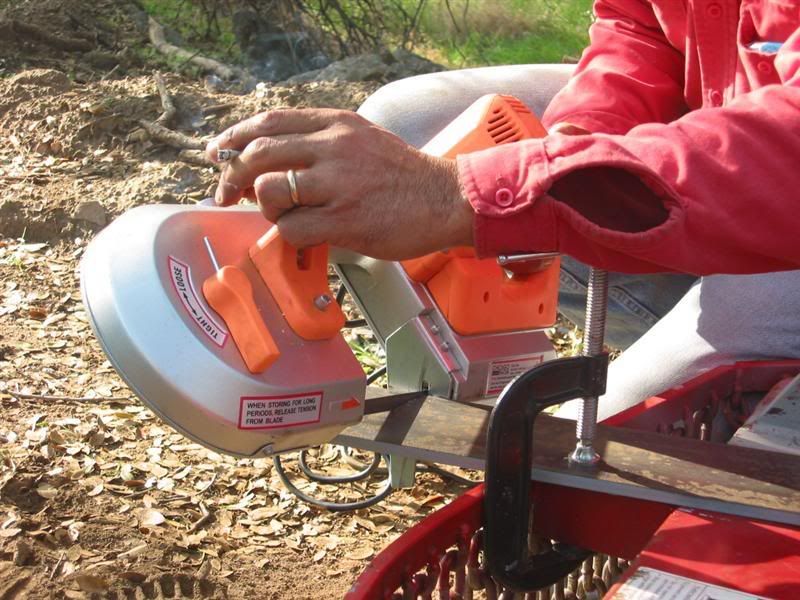

Last you saw was the addition of the extra tubing on the sides of the rotary cutter. In order to mount the receiver bars, I decided to weld them to 3/8" thick plates which will be welded to the rotary cutter body for even more strength. I had to do some fitting and welding first, and then space the receivers so the quick attach wheels would slide on and off them.



[3RRL]

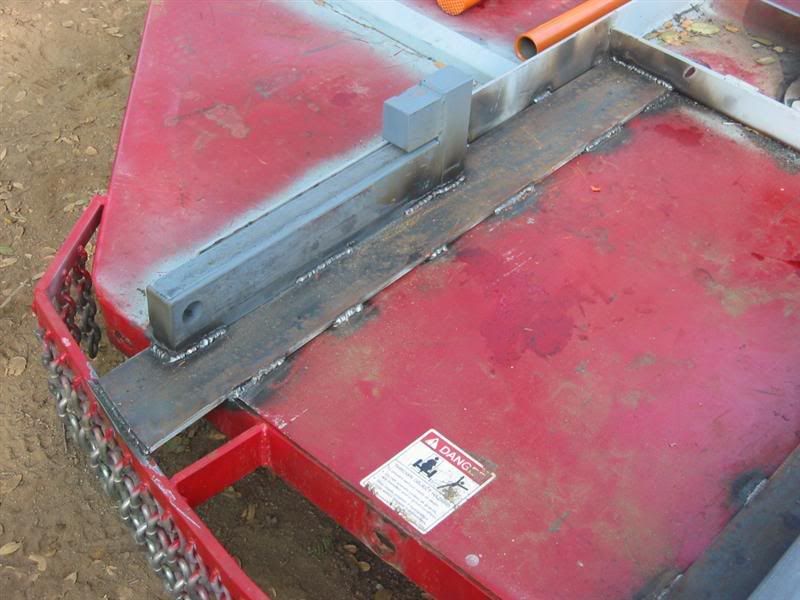

After Loretta and I spent a couple hours getting the rails perfectly straight, we had a chance to touch up the welds with a little paint. It was touch and go getting the rails straight enough for the gauge wheels to slide on and off without binding up. I left .050" clearance and thought it would be plenty, but I was wrong. I could have easily used .051" or .052"... just kidding. Anyway, we managed and they slid on and off easily once we got the position correct. Here are a couple pics showing the result and with the wheels on.



[3RRL]

I hooked up the cutter to the tractor so I could get the hose length for the hydraulics. This is the longest they have to be to and could be shorter for the other implements, but I will just roll them up for the others instead of having separate hose lengths for each. Quick disconnects are expensive.

Anyway, this first picture is with the wheels lifted up completely. They are off the ground and the brush hog body is sitting down. The wheels are up in the air enough to where I could lift the entire cutter up to back into shrubs and stuff. The other photos are of the wheels lifting the cutter at various positions and an end view.




The wheels lift the cutter about 14" off the ground and even a little more when I raise the 3pt up. It's a pretty good range of cut height.
The best part is I get to set it from the seat of my tractor or change it if I want.
That was the whole idea.



[3RRL]

Here is a short video of how it works.
I guess I will have to play around with setting the hydraulic top link so there is enough play in the slot for the cutter to follow the contours, but you get the idea.
