RTV - X1100C


  • Thread Starter
#81
OP
swampy6

swampy6

Gold Member
Joined
Oct 20, 2017
Messages
265
Location
Foothills of The Adirondacks, New York State
Tractor
Mahindra 4540 4WD
There is a cable that causes that lobe-shaped "cam" in your picture to pivot and push that plunger in when the brake pedal is pressed. You can adjust the cable so that you get the desired amount of motion of the plunger. I had to adjust mine -- I suspect the cable had stretched so it was no longer pushing in the plunger very far. Once adjusted it made a big difference. In the owner's manual they give some dimensions to check the plunger range -- the numbers were out of whack in my owners manual from the fall of 2015 (very obvious typo) and I wonder if they have corrected it by now. I had to work it out by trial and error.

Thanks, I'll take a look in the book today.


lloyd123

Silver Member
Joined
Mar 30, 2004
Messages
242
Location
Taxachusetts
Tractor
RTV-X1100C

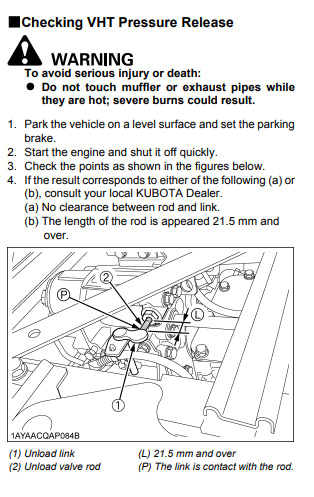

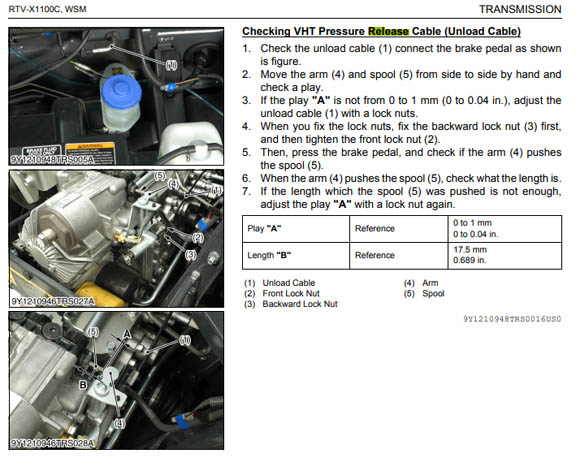

Looked at both the OM and the WSM for the RTV-X1100C about checking VHT release pressure.

The WSM seems to check if the "spool" length is at least 17.5 mm while the OM checks to see if the "spool" length is not over 21.5 mm.

Maybe I'm reading this all wrong.

Won't be checking today as it's single digits out there.


Attachments

  • release_om.jpg
    99.2 KB · Views: 67
  • release_wsm.jpg
    91.2 KB · Views: 82

s219

Super Member
Joined
Dec 7, 2011
Messages
8,426
Location
Virginia USA
Tractor
Kubota L3200, Deere X380, Kubota RTV-X
Looked at both the OM and the WSM for the RTV-X1100C about checking VHT release pressure.

The WSM seems to check if the "spool" length is at least 17.5 mm while the OM checks to see if the "spool" length is not over 21.5 mm.

Maybe I'm reading this all wrong.

Won't be checking today as it's single digits out there.

Yeah, I would ignore the owner's manual as that clearly looks like a bad translation and they only seem to be giving the spec to diagnose a problem. The WSM has the proper adjustment procedure.

   #84

wawajake

Platinum Member
Joined
Aug 25, 2008
Messages
879
Location
Canada
Tractor
Kubota BX2660 , Kubota RTV X1100C
I am trying to improve my shift response too on my 2016 x1100c , I see my rod is sticking out of control valve 21.4 mm when cold and not pressing brake. I am tempted to tighten cable so that lobe pushes in on rod a few more millimeters even without pressing brake , so that when brake is pressed it will push rod in further to release hydraulic pressure when shifting. I do not have a WSM so any suggestions from those that have a WSM much appreciated.

   #85

s219

Super Member
Joined
Dec 7, 2011
Messages
8,426
Location
Virginia USA
Tractor
Kubota L3200, Deere X380, Kubota RTV-X
I am trying to improve my shift response too on my 2016 x1100c , I see my rod is sticking out of control valve 21.4 mm when cold and not pressing brake. I am tempted to tighten cable so that lobe pushes in on rod a few more millimeters even without pressing brake , so that when brake is pressed it will push rod in further to release hydraulic pressure when shifting. I do not have a WSM so any suggestions from those that have a WSM much appreciated.

Well you definitely don't want any pressure on that plunger rod until you mash on the brake, since it will bleed pressure off and that would be bad while you're under power. There should be a very slight gap between the cam lobe and the plunger under normal conditions, then you need to get the rod length set to ~ 17.5mm when the brake pedal is mashed.

The left image up in post 82 is from the WSM so refer to that.

   #86

wawajake

Platinum Member
Joined
Aug 25, 2008
Messages
879
Location
Canada
Tractor
Kubota BX2660 , Kubota RTV X1100C
Thanks s219....The operator manual is useless in explaining what to aim towards...instead it tells you what not to have. .....that 17.5 mm when brake applied ....and a slight gap between lobe and rod when no brake applied is what I will aim towards. There seems to be a bit of slack in cable that I can reduce. Thks

   #87

lloyd123

Silver Member
Joined
Mar 30, 2004
Messages
242
Location
Taxachusetts
Tractor
RTV-X1100C
Well you definitely don't want any pressure on that plunger rod until you mash on the brake, since it will bleed pressure off and that would be bad while you're under power. There should be a very slight gap between the cam lobe and the plunger under normal conditions, then you need to get the rod length set to ~ 17.5mm when the brake pedal is mashed.

The left image up in post 82 is from the WSM so refer to that.

I checked today and with the foot off the brake the length looked to be over 21.5 mm so I tightened up the cable to 21.5 mm - or as close as what appeared to be that as not that easy to get my hands with a digital caliper under there - and after adjustment with the brake pedal pushed the rod length was 17.5 mm - or pretty close for reason already mentioned.

I assume the cable will stretch with time so will need adjustment in the future.

Seems to shift better but still on occasion - not as often - it will seem to stick in a gear and will require a small blip of the accelerator to move the gear a small fraction to free up to shift.

Last edited:
   #88

wawajake

Platinum Member
Joined
Aug 25, 2008
Messages
879
Location
Canada
Tractor
Kubota BX2660 , Kubota RTV X1100C
That is the same thing I did yesterday lloyd123, although I had some calipers. It seemed to slightly improve shifting, but maybe that's in my hopeful mind. At least I know it is adjusted to specs and probably will continue to require the few times where I feather the gas pedal while gently find sweet spot to click it into gear, sadly that is a slow process when in middle of plowing or on a rocky hill. It is the only downside to this rig that I love otherwise. I have learned to NEVER turn off ignition without putting in neutral, because getting it out of gear to start it is a bear ! ( shake and push rig to loosen )

   #89

lloyd123

Silver Member
Joined
Mar 30, 2004
Messages
242
Location
Taxachusetts
Tractor
RTV-X1100C
Cooling system question from a new RTV-X1100C owner - me.

My old 2004 RTV-900W had a very simple cooling system - easy to understand and I changed the coolant every two years.

The RTV-X1100C has a much more complicated system - probably due to a larger engine and AC.

Is there just the one system that has two radiators - that's my impression. Draining the whole system done is from a single location and refilling the whole system all done at the radiator with the overflow container under the front hood. No reason to ever remove the cap on the side radiator behind the battery?

   #90

coobie

Super Member
Joined
Sep 19, 2004
Messages
5,933
Location
S.Michigan
Tractor
Kubota RTV 1100c, JD 740,Kioti DK 40 with KL401 loader .
After 17 years with a RTV900W I traded it in today for a RTV-X1100C. The RTV900W only had 500 hours but has been acting up lately with four wheel drive engagement and the locking differential. The RTV900 had the hard cab option plus a 72" Curtis plow with the angle kit. The new RTV-1100C will have the V5295A K-Connect Hydraulic V-Plow. Gave me $8,000 trade so difference is about $21,500 plus tax. Should be good for another 17 years which will make me almost 90 so probably my widow will be selling this at some point or using it herself.
I have a 2006 RTV 900 with Curtis cab/curtis plow has 970 hours been pretty much flawless.Thinking about upgrading to RTV X11000c.How is your new unit verses your RTV 900?How the 2 speed tranny verses the 3 speed tranny in the RTV 900?Thanks,Frank.
