V417 Max Lift

   #1

Xfaxman

Super Star Member
Joined
Feb 8, 2013
Messages
11,629
Location
Guthrie, OK
Tractor
Toolcat 5610 G Bobcat V417 TORO+Loader
Bobcat is very conservative with their specs, Rated Lift Capacity is 4400 lbs.

So I thought I would check my V417 using these crane scales chained to a tree stump.

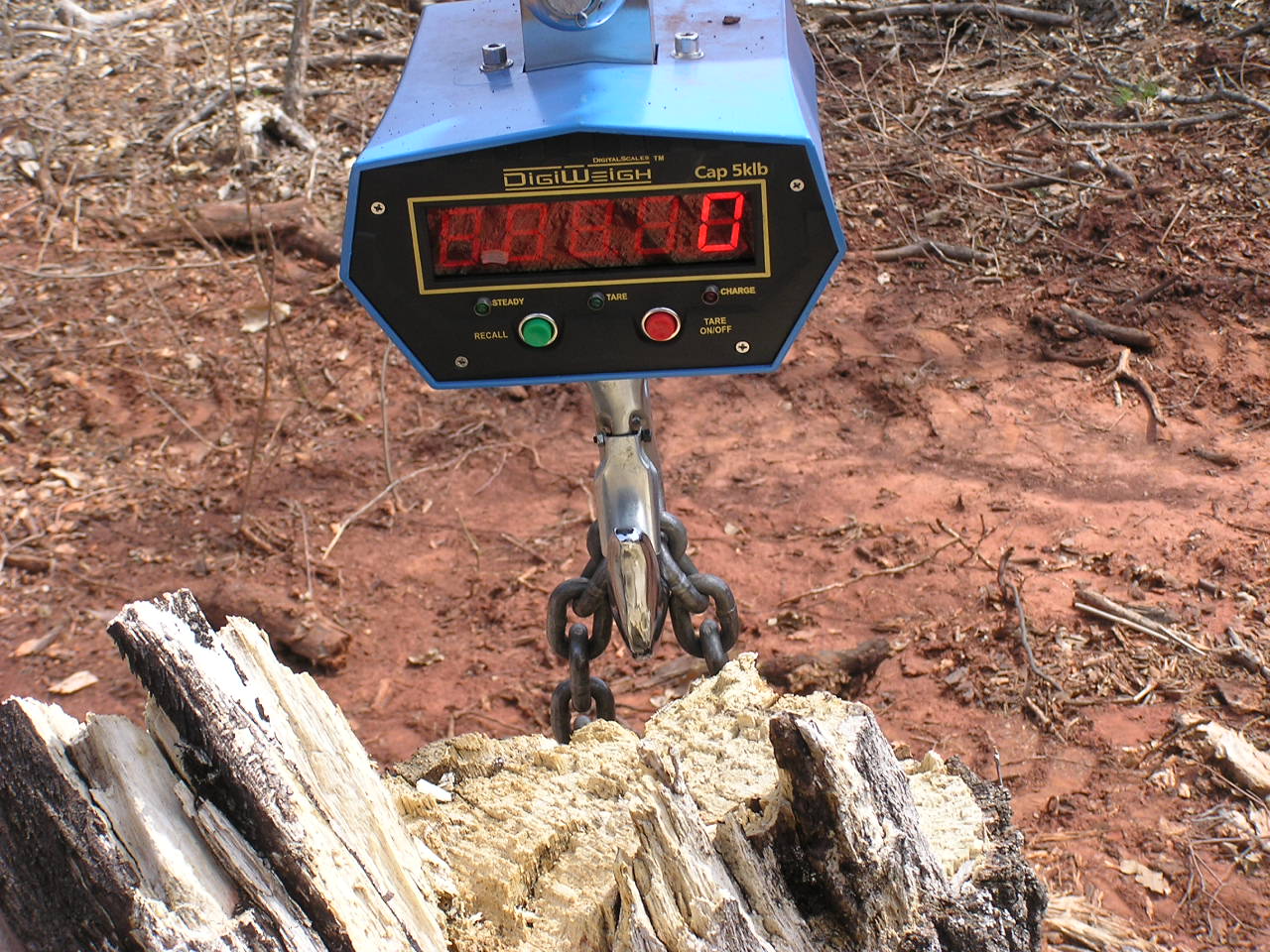

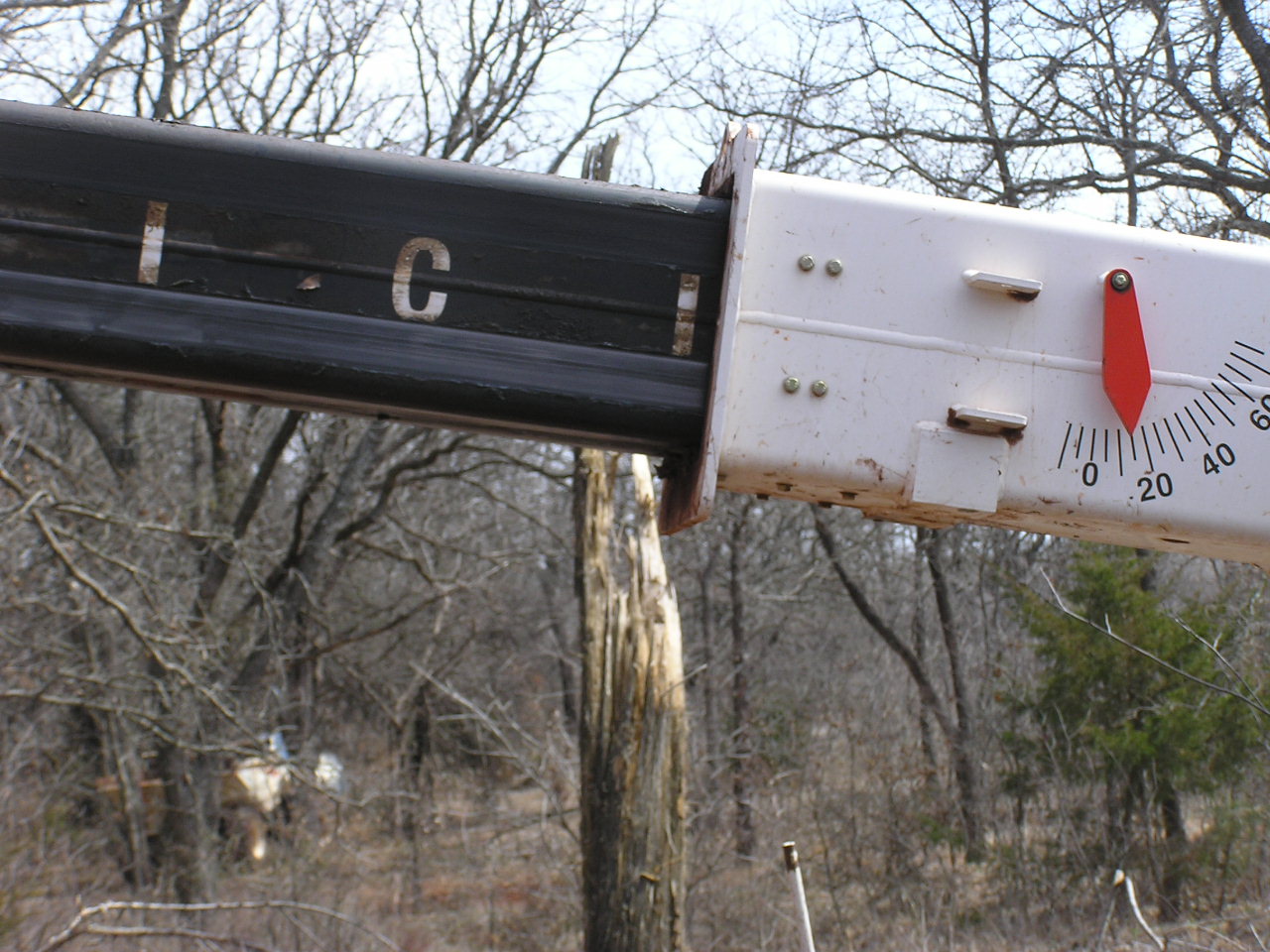

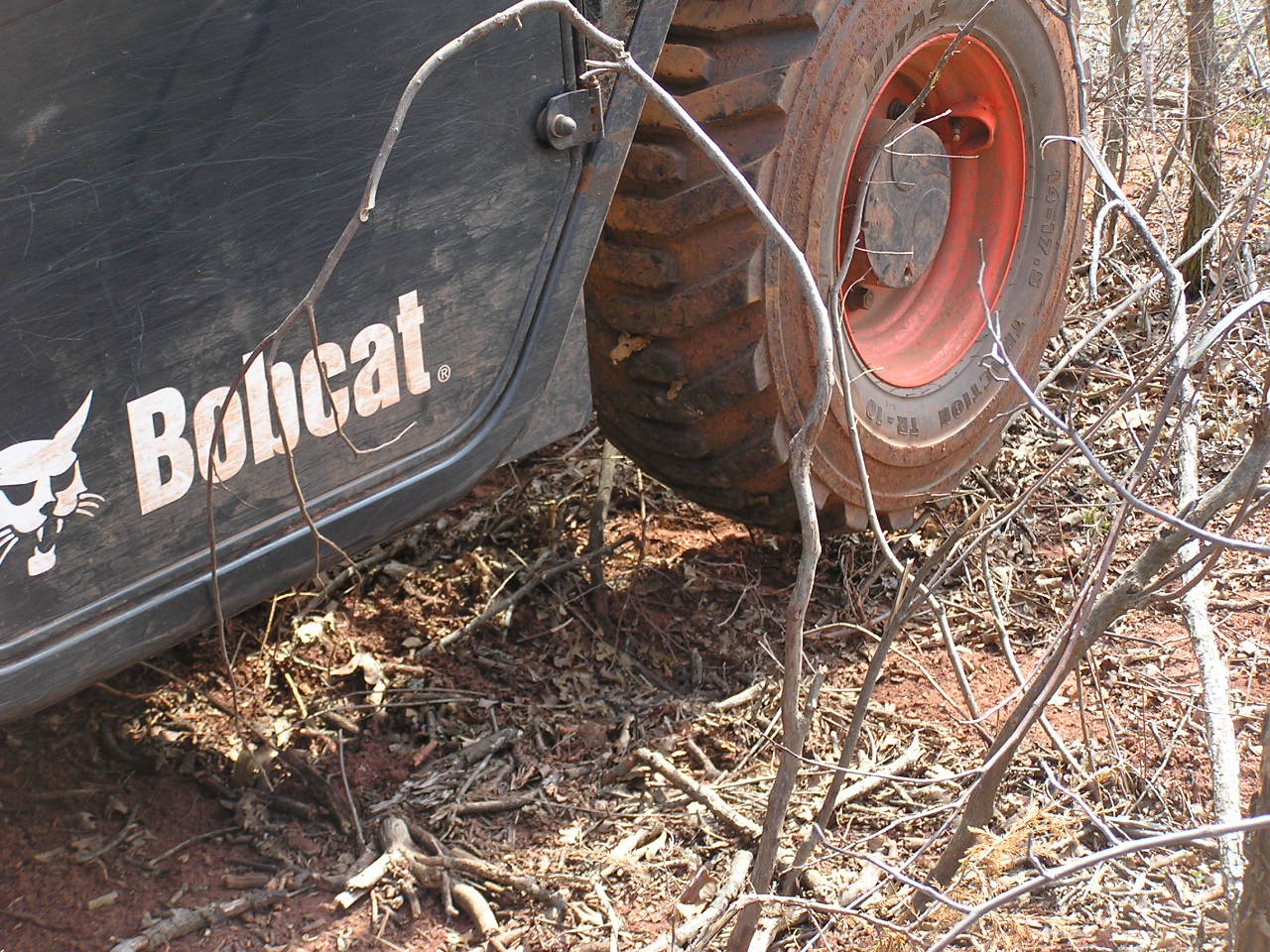

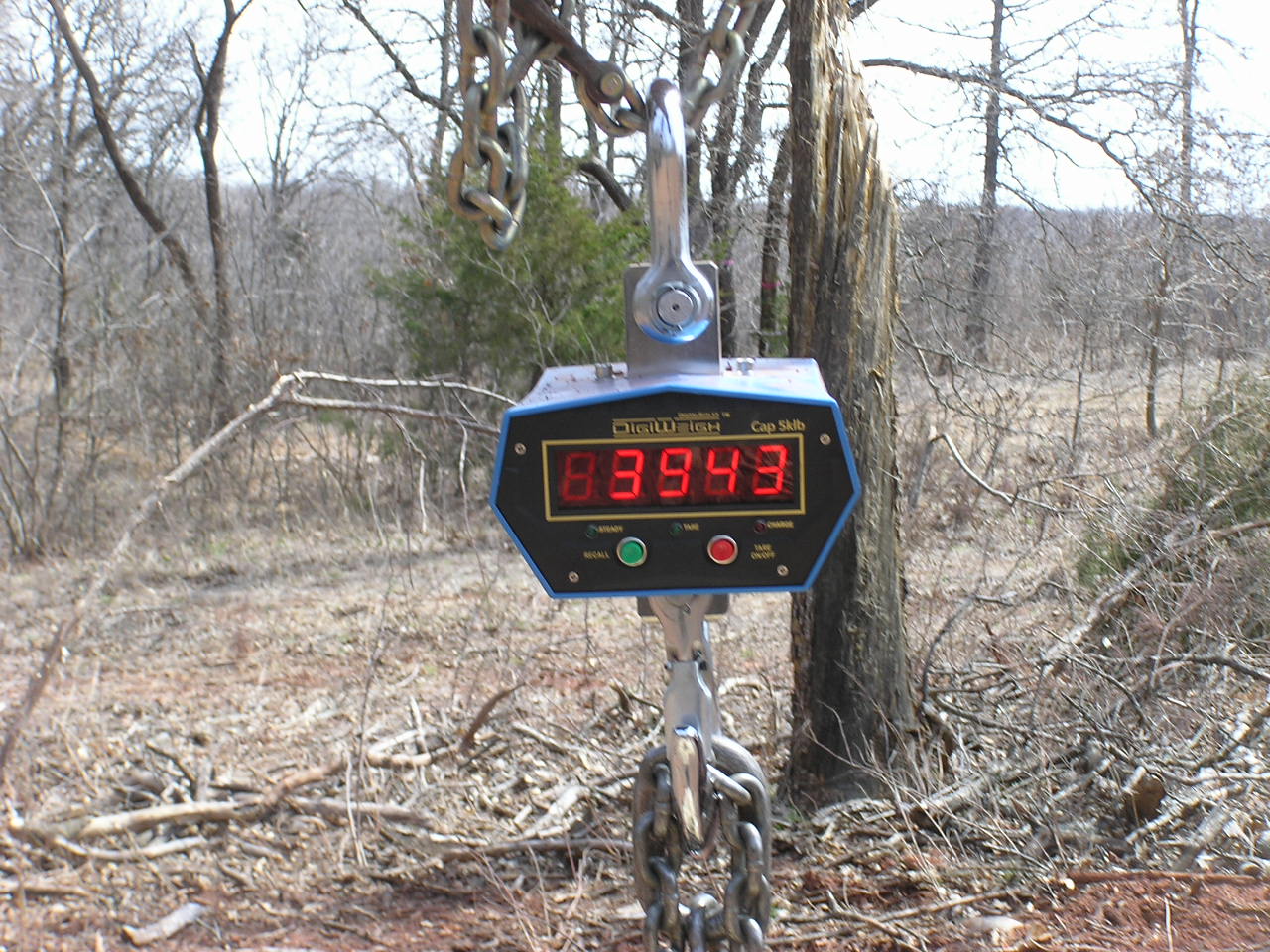

Without the bucket and the boom fully extended, at 15 degrees, it took 3940 lbs to raise the back wheels off the ground.
P3280014.JPG P3280012.JPG P3280015.JPG

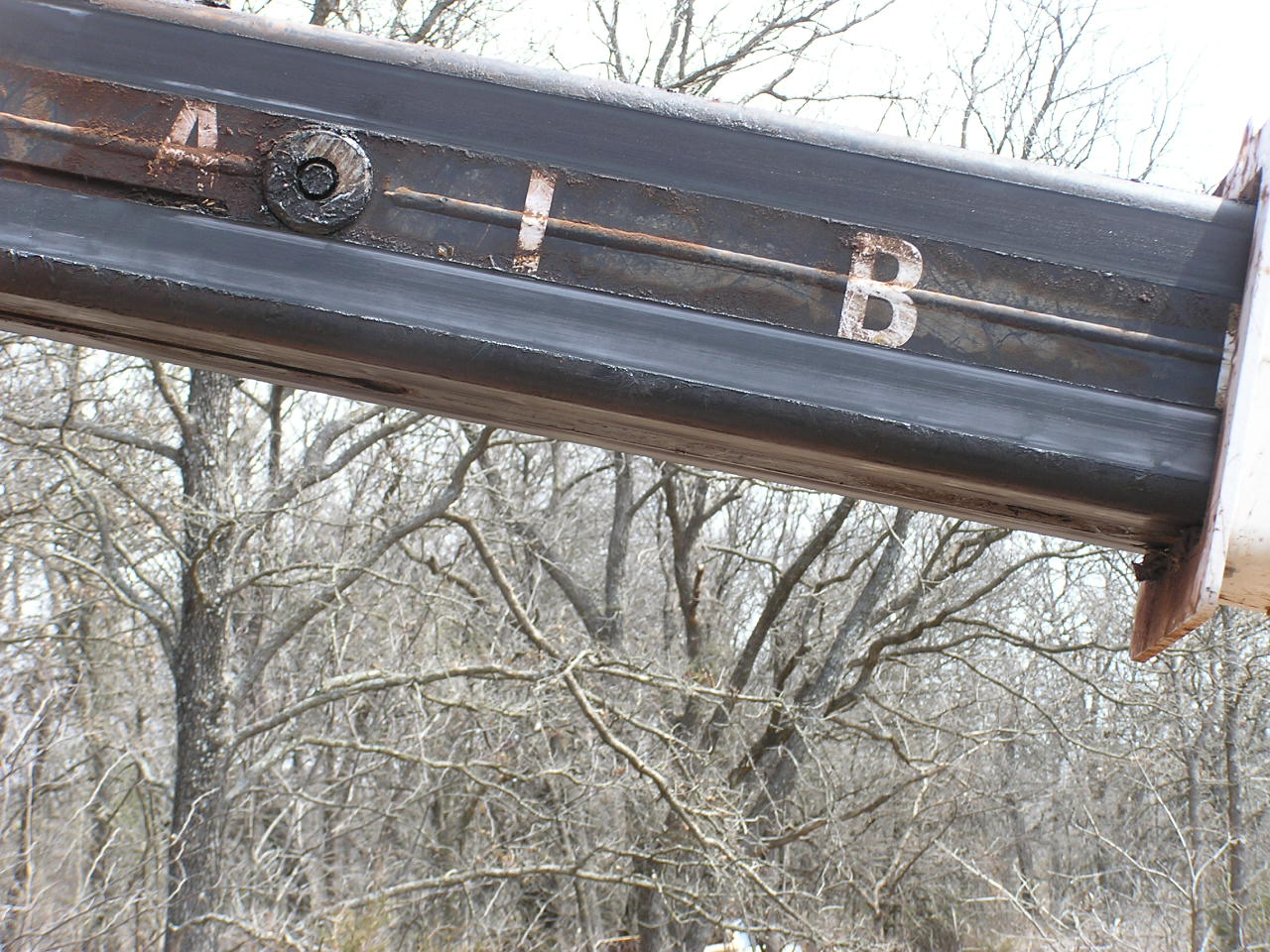

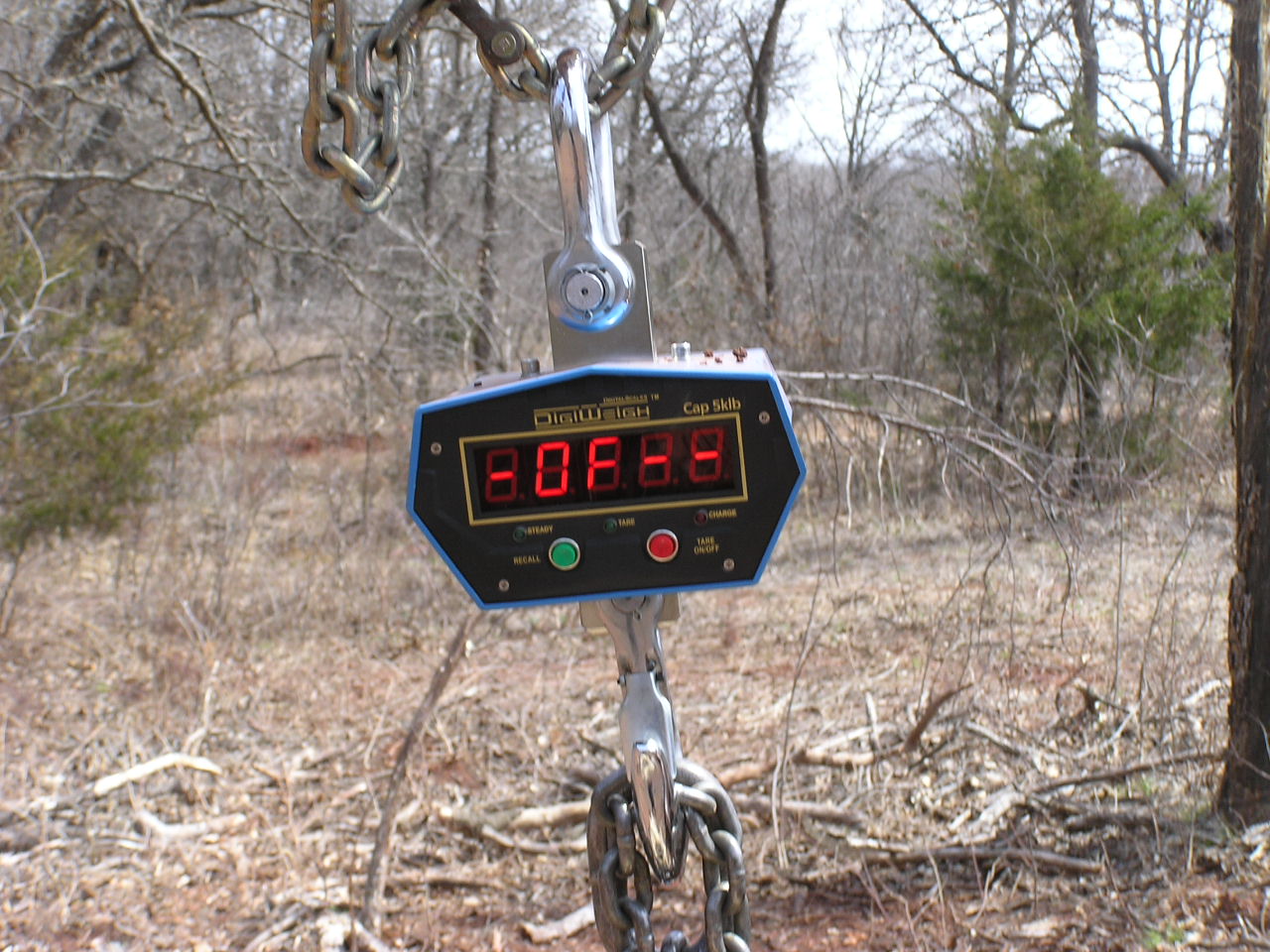

I lowered and retracted the boom a little, the scale showed zero, then lifted again. I saw 5005 then it showed Over Flow.
P3280016.JPG P3280018.JPG

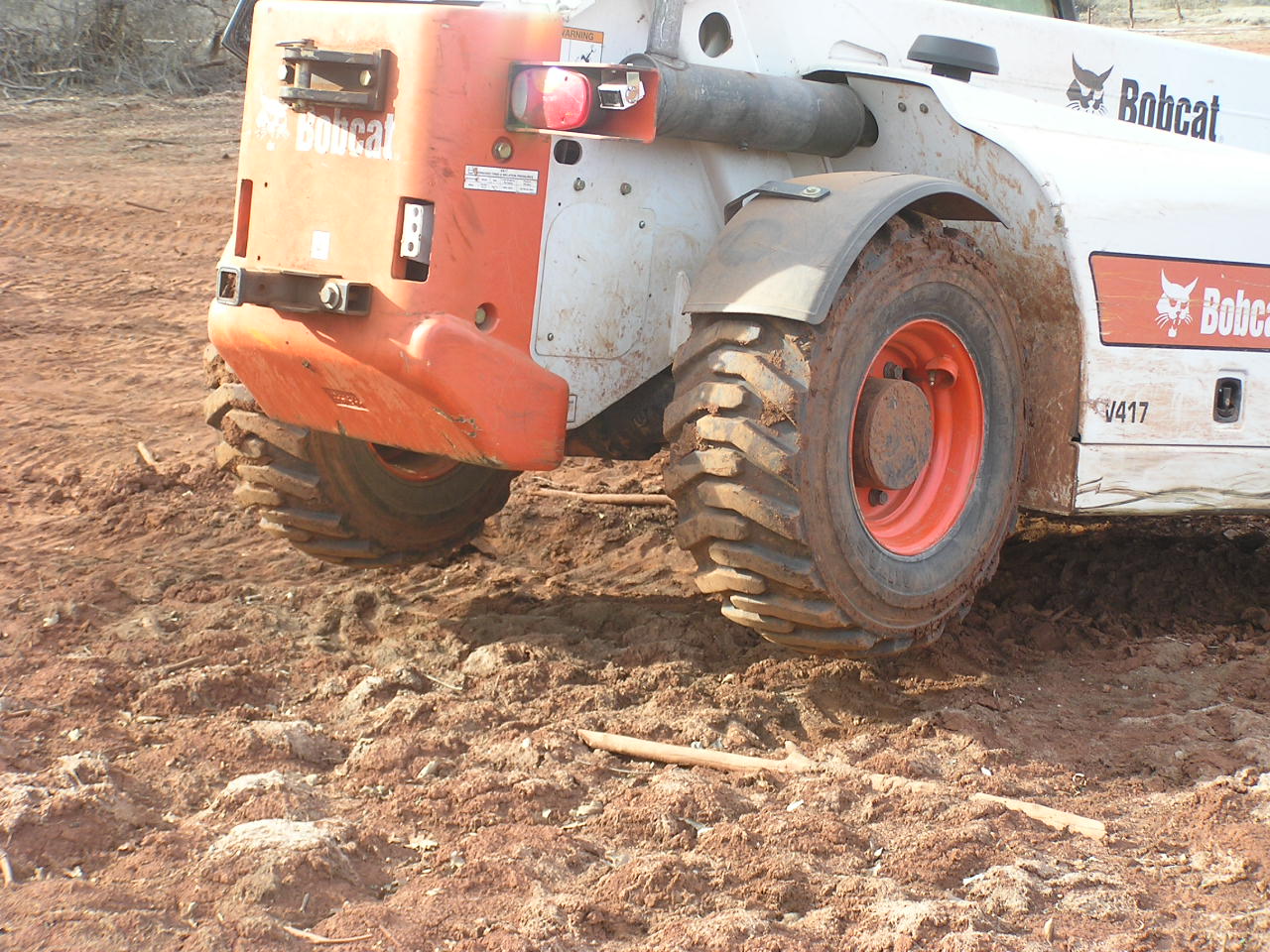

There would be about 3200 lbs of dirt in this bucket!
P3200004.JPG P3200007.JPG P3200009.JPG

Since I can't measure the maximum lift fully retracted, I will weigh the bucket and add known weights in the bucket, until I can open the lift relief valve with the scale hooked on.

   #2

Piston

Elite Member
Joined
Sep 28, 2008
Messages
3,839
Location
Lakes Region NH
Tractor
Kubota L4610 Hitachi UH083LC
I'm surprised there weren't any replies to this thread, I finally found it from a link you posted from another thread. I'm always impressed with the pics you post of that V417. I never knew about those until you started posting about it.

That is surely some impressive lift capacity, it's nice to be able to extend and retract the bucket like that.

How is the visibility compared to a tractor? It seems that it could be tough to see whats to the right of you with the boom in the way?

I would be very interested in one of those if they only had a PTO! Do you have enough hydraulic capacity to use a mulcher with that? That would be impressive!


I'd love to see some more action photos with the 7' rotary mower you have for it. Do you use that for heavy duty cutting?


  • Thread Starter
#3
OP
Xfaxman

Xfaxman

Super Star Member
Joined
Feb 8, 2013
Messages
11,629
Location
Guthrie, OK
Tractor
Toolcat 5610 G Bobcat V417 TORO+Loader
I'm surprised there weren't any replies to this thread, I finally found it from a link you posted from another thread. I'm always impressed with the pics you post of that V417. I never knew about those until you started posting about it.

That is surely some impressive lift capacity, it's nice to be able to extend and retract the bucket like that.

Especially when stuck in the mud.

How is the visibility compared to a tractor? It seems that it could be tough to see whats to the right of you with the boom in the way?

See post #5 here: http://www.tractorbynet.com/forums/toolcat/183057-toolcat-vs-v417.html

I would be very interested in one of those if they only had a PTO! Do you have enough hydraulic capacity to use a mulcher with that? That would be impressive!

It is rated at 22 gpm.


I'd love to see some more action photos with the 7' rotary mower you have for it. Do you use that for heavy duty cutting?

I try not to go over 2" brush, it is rated for bigger, but that puts a lot of stress on it. I will pull the bigger ones with this, just ordered, will get here next week.

Buckthorn long.jpg
Buckthorn Puller

Mowing some giant ragweed.
PA010010.JPG PA010016.JPG PA010023.JPG

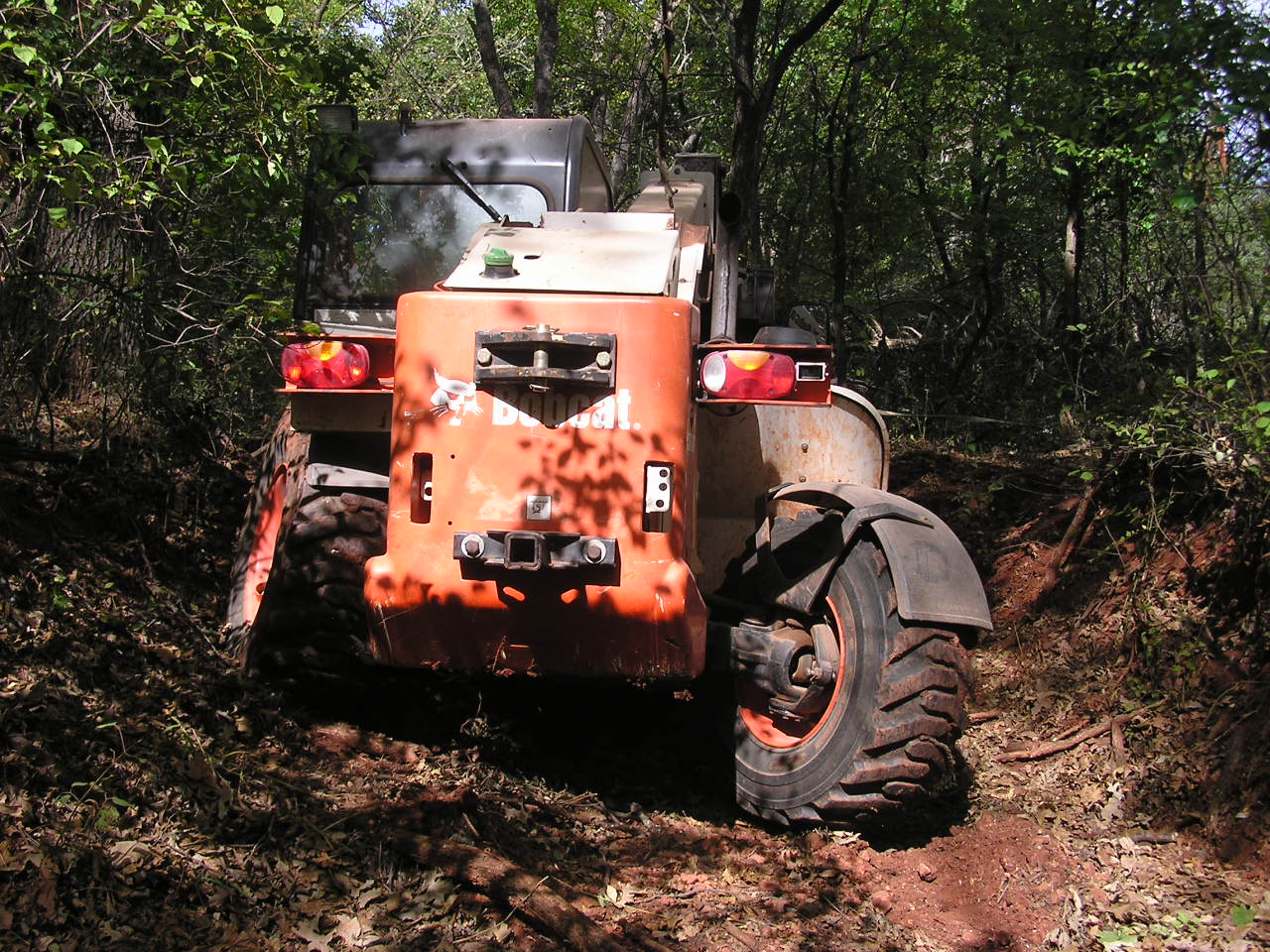

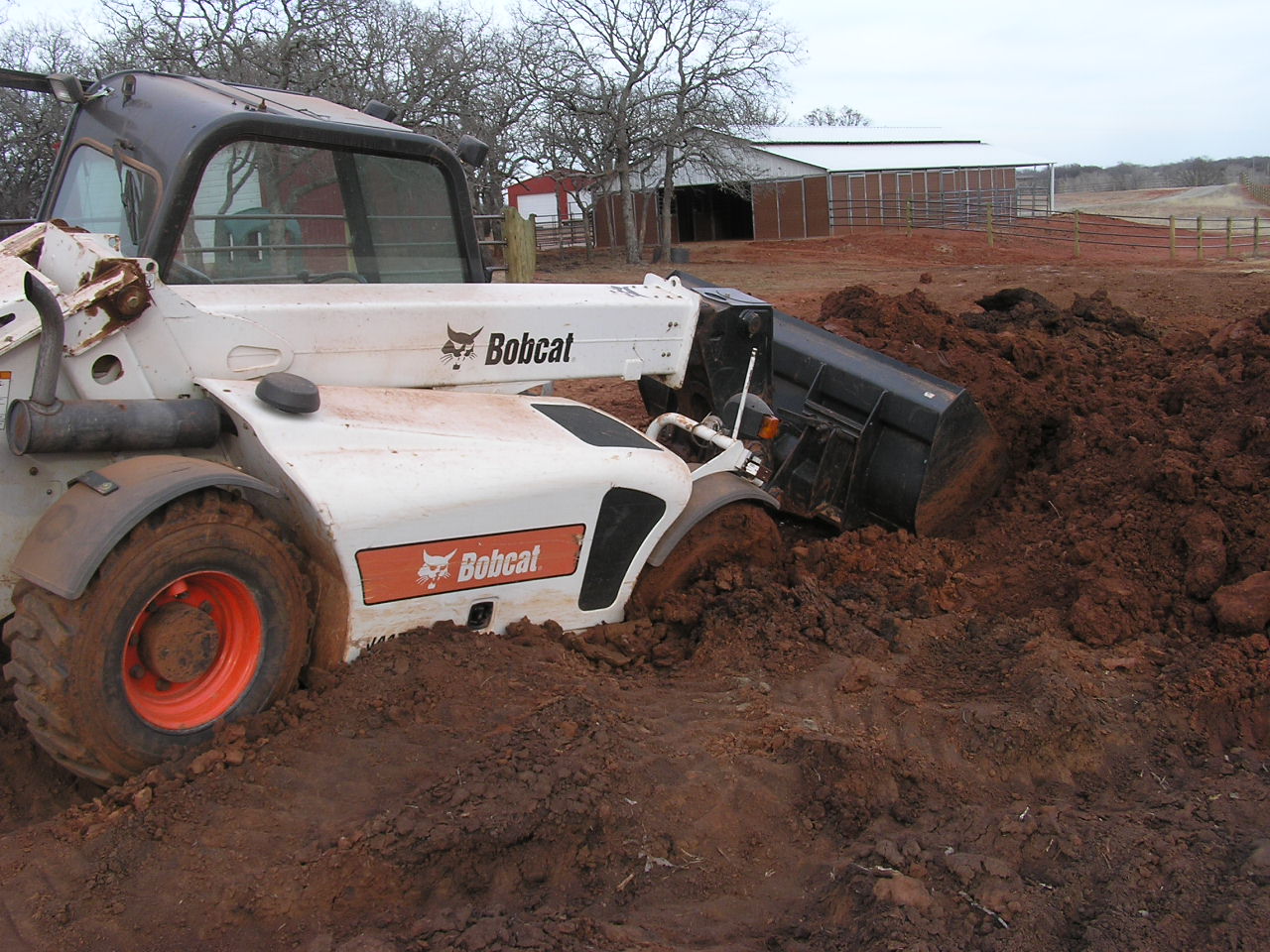

Stuck in the mud.

Lower the boom, raises the front end.

Extend the boom while spinning the wheels in reverse.

Not stuck now!:D

   #4

Villengineer

Gold Member
Joined
Dec 18, 2003
Messages
371
Location
OH
Tractor
Ford 861/ JD 770 MFWD
Bobcat is very conservative with their specs, Rated Lift Capacity is 4400 lbs.


Since I can't measure the maximum lift fully retracted, I will weigh the bucket and add known weights in the bucket, until I can open the lift relief valve with the scale hooked on.

The lift capacity is not based solely on the hydraulics. It is actually a stability value and is based on tests specified by ASME/SAE/ISO.


  • Thread Starter
#5
OP
Xfaxman

Xfaxman

Super Star Member
Joined
Feb 8, 2013
Messages
11,629
Location
Guthrie, OK
Tractor
Toolcat 5610 G Bobcat V417 TORO+Loader
The lift capacity is not based solely on the hydraulics. It is actually a stability value and is based on tests specified by ASME/SAE/ISO.
Yep, stability, that is why I didn't extend the boom when I took this picture that was in the first post. The ground was a little soft and not level.

attachment.php



The front axle does not pivot like a tractor, but the rear axle does. :thumbsup:

attachment.php

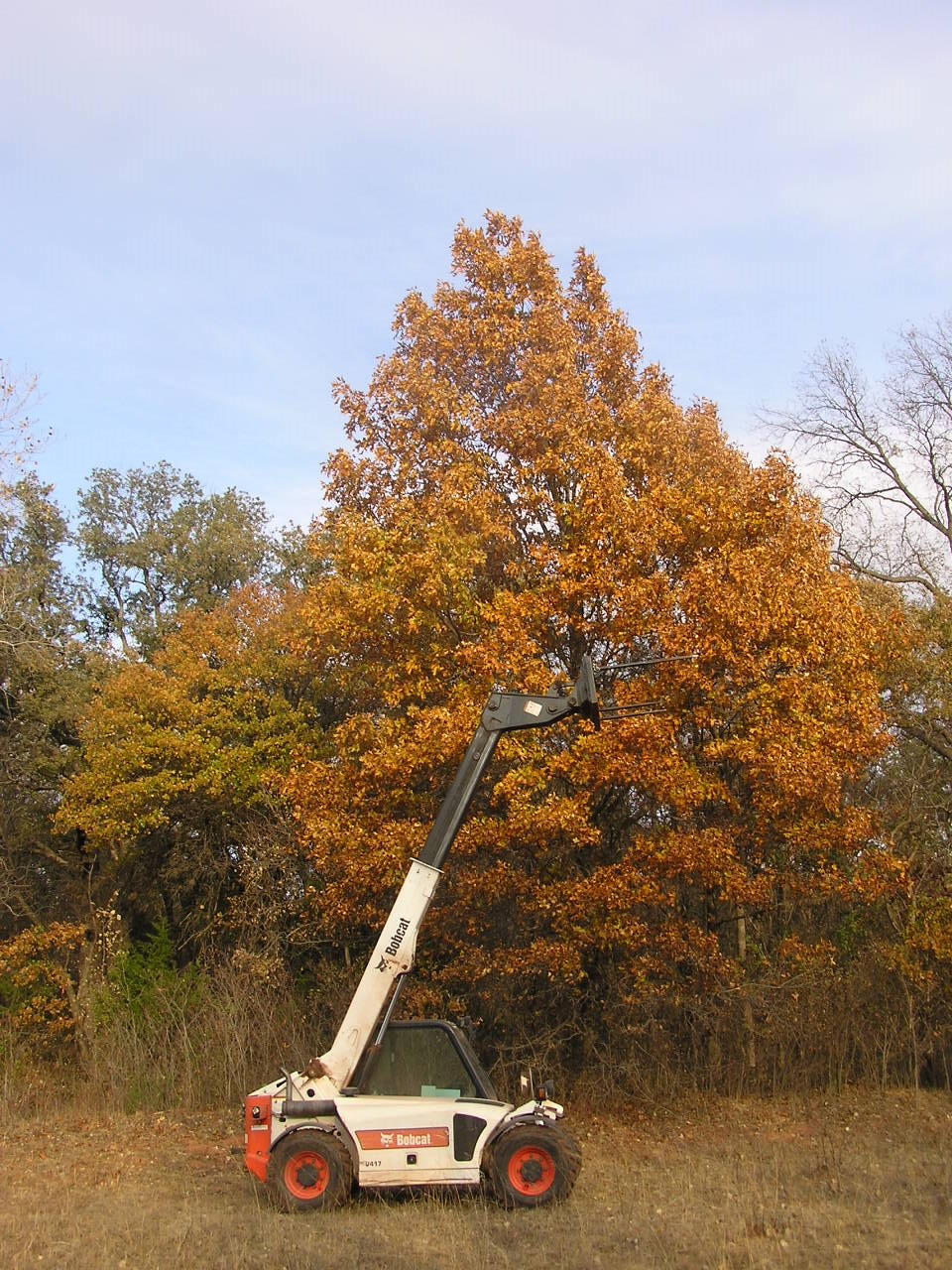

Here it is with the boom extended.

attachment.php


attachment.php


Attachments

  • P3200009.JPG
    255.5 KB · Views: 1,169
  • PA160021.JPG
    293.2 KB · Views: 780
  • P5050019.JPG
    275.5 KB · Views: 882
  • P6230013.JPG
    289 KB · Views: 713

  • Thread Starter
#6
OP
Xfaxman

Xfaxman

Super Star Member
Joined
Feb 8, 2013
Messages
11,629
Location
Guthrie, OK
Tractor
Toolcat 5610 G Bobcat V417 TORO+Loader
Yep, stability, that is why I didn't extend the boom when I took this picture that was in the first post. The ground was a little soft and not level.

425406-v417-max-lift-p3200009-jpg

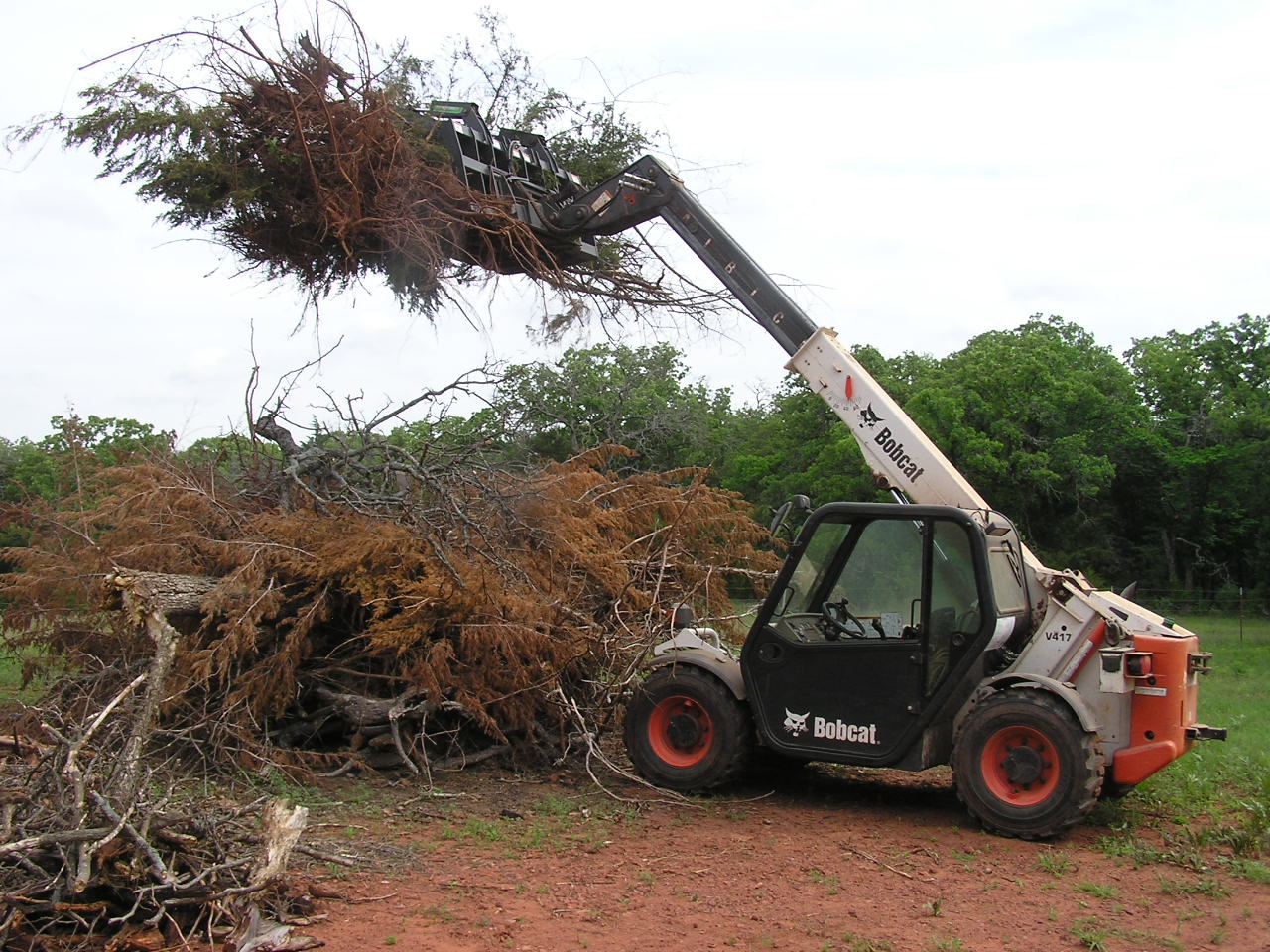

Found a picture of the boom extended and all the way up with an empty bucket:





And a picture of the boom extended and all the way up with the bale spear:
