DIY Ratchet Rake

[High Compression]

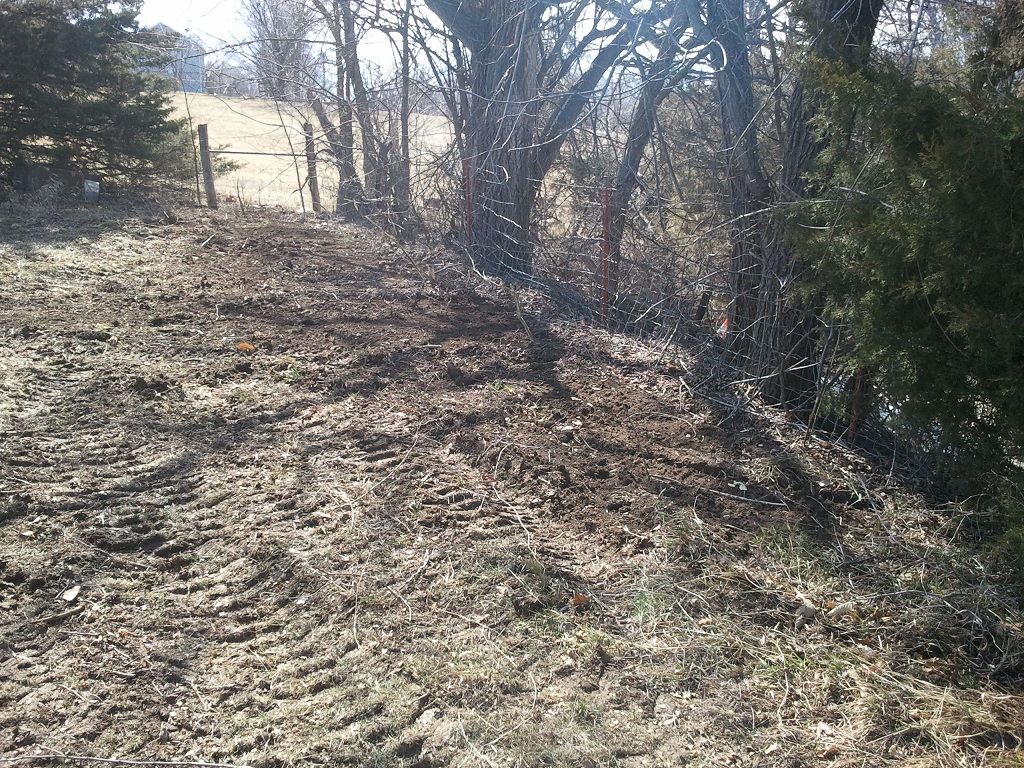

Well gang. The results are in. It has done a fantastic job. I'm really amazed at how something so simple works so well.
Before



After

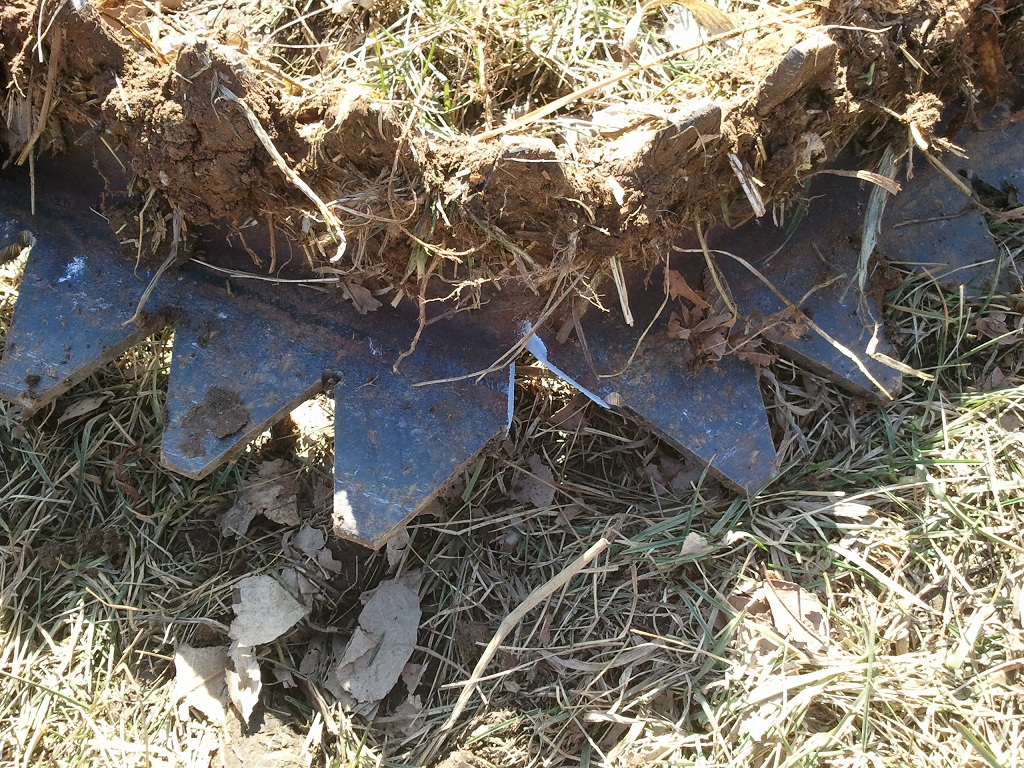

But it's back to the drawing board. The prototype now to be known as DIY RR Alpha, has met it's limit. I figured that 5/16" wouldn't last as well as 5/8" especially on a 60hp tractor:confused3:,(5/8" is what the Real RR 72" is made of. 68" and 55" are 1/2". ) but I didn't have any 5/8" laying around, and my plasma won't like it anyway. I got a little too aggressive with a stump and this happened. Again 5/16" + L5740 + me liking to test(break) stuff=


:laughing::drink:
I learned 2 things here. One: as was admired by another TBN'r, my cutouts came to a point. Well that creates a weak spot. The reason the real RR has a radius is to prevent cracking and tearing. Two: as previously noted my bucket hooks were not strong enough either.
An additional mod I am going to make is a backward facing notch protruding on each side of the bucket to grab hanging vines in the trees and pull them out. Sooooo.......
DIY RR Bravo is in the works. If I can get my hands on 5/8" today it will be game on, if not I might have to settle for 1/2" and just beef it up. I have a buddy with a CNC plasma table, that will cut it out perfect for me. We'll see what I get done today and I'll try to post progress and pix later.:thumbsup:



[J_J]

Bend it back straight and lay down some 2 x 1/2 bar and reinforce the full length.

Your statement below would look good on the Ratchet Rake web site.

" How something so simple works so well "

I had cut out a toothed rake like the Ratchet Rake around August, and was trying to add a grader blade to it for scraping.

I will probably have to beef mine up also.

I have the 72 in Ratchet Rake, and I am thinking of trying it on the scraper/grader blade.



[hydro2]

Let us know how that works.



[High Compression]

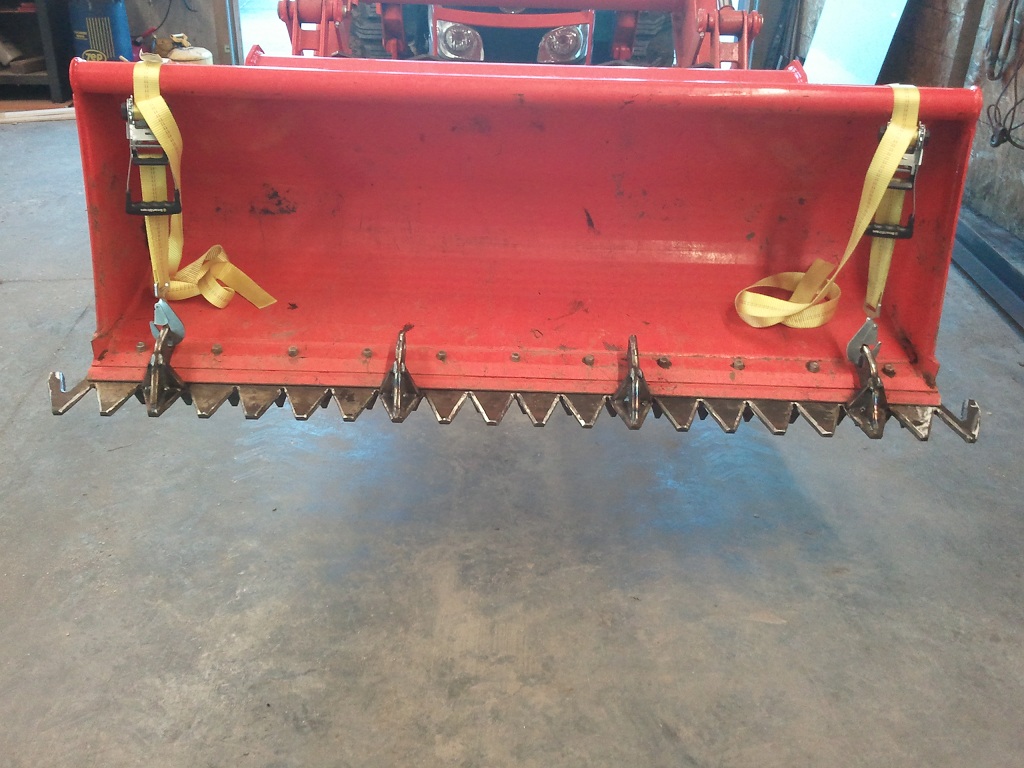

Ok gang. DIY RR Bravo complete! (Minus paint) I'll take suggestions on paint color. I have lot's of black. Kubota orange isn't out. Expensive, but not out.

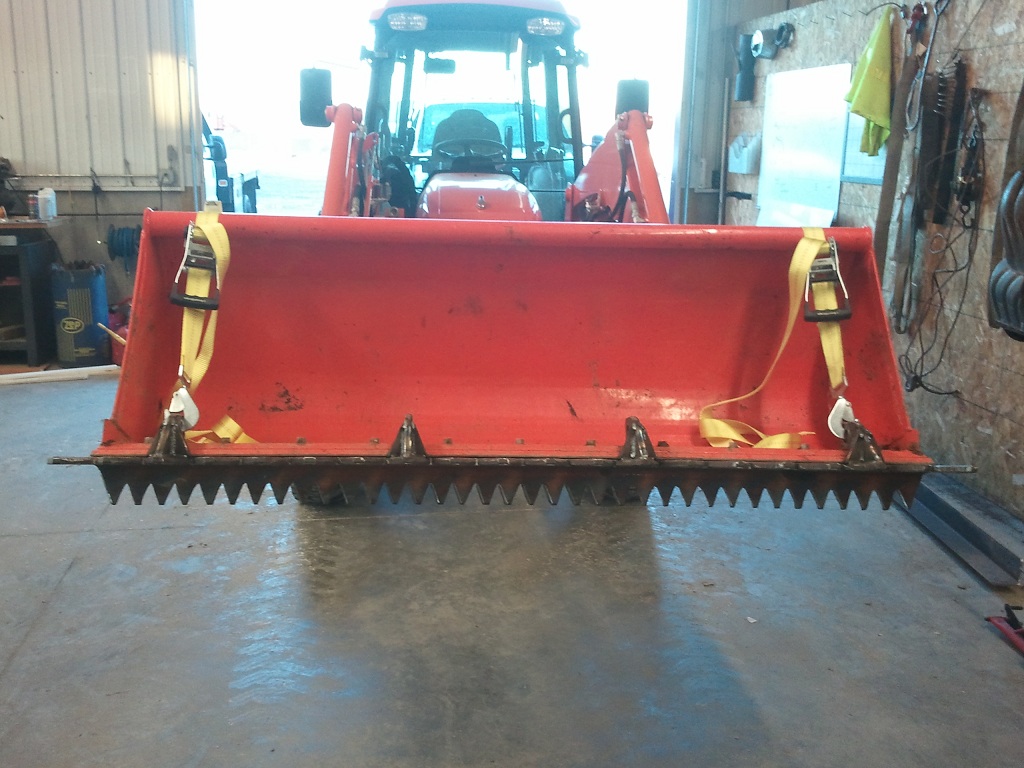

So here are the pix of the new one. I think if I break this, I've got bigger problems.:laughing:

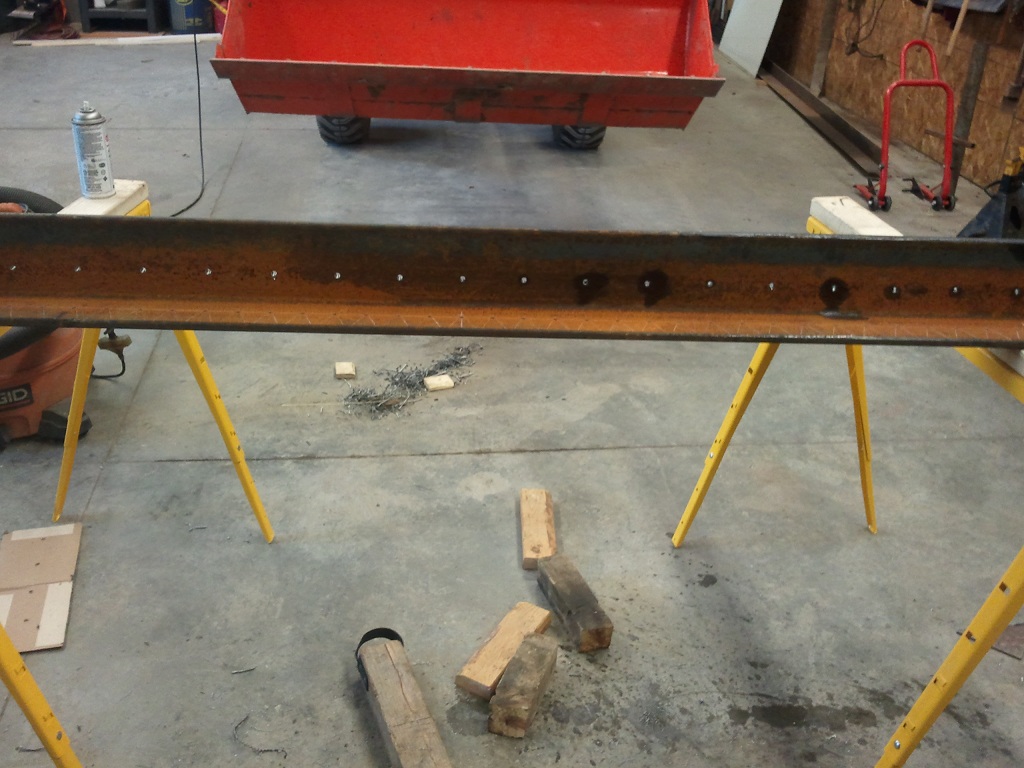

Here's what I started with. 6"x4"x5/8"

Drilled the inside point to prevent tearing or cracking.

Templates

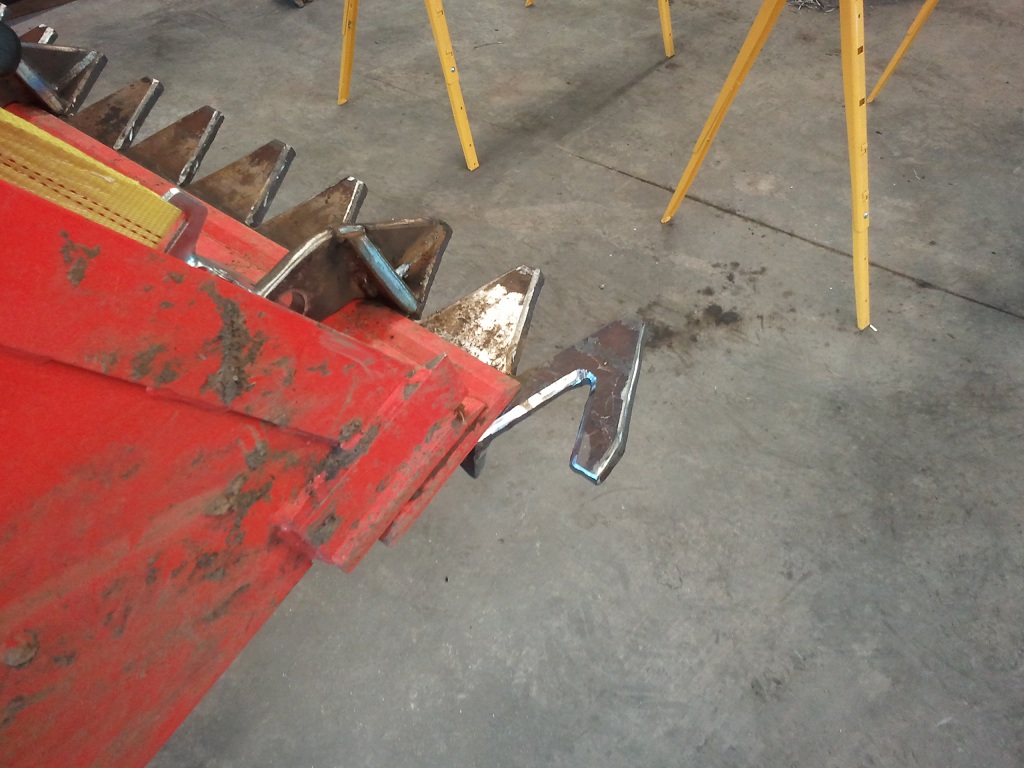

Side hooks for vines etc.

Ditto

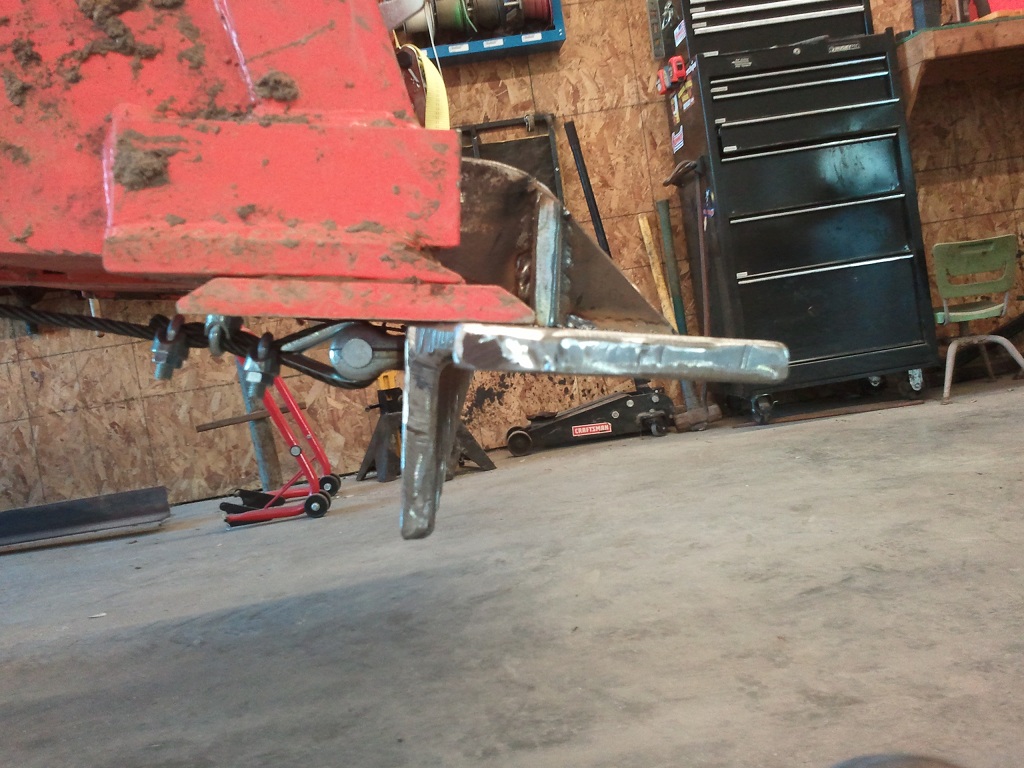

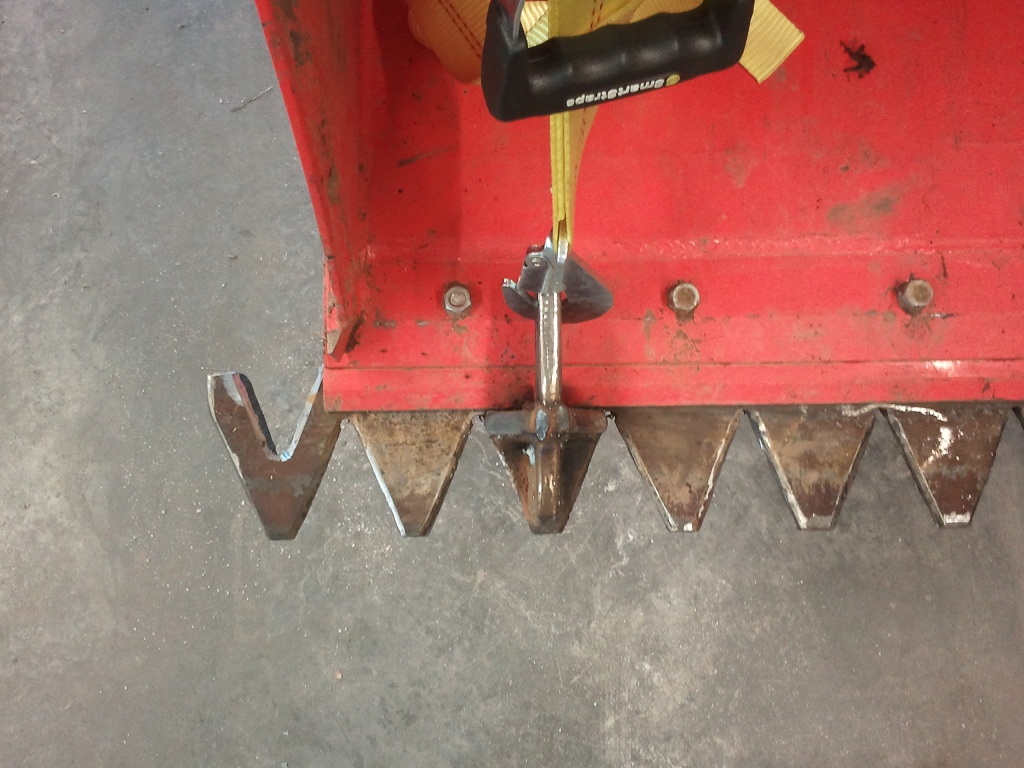

Attachment points.


Hopefully the weakest link is the 3333# rated straps. We'll see.:thumbsup:



[rekees4300]

:thumbsup: I like the side vine hooks. Just be aware of the possibility of dead limbs falling when pulling the vines out of trees.



[High Compression]

:thumbsup: I like the side vine hooks. Just be aware of the possibility of dead limbs falling when pulling the vines out of trees.

Very true! You gotta get out and scope out those "Widow Makers" before you start jerkin stuff outta trees.:thumbsup:
