Looks good so far.

Have you got an unassembled pic of how the pin connects to the cyl rod? I don't quite follow your description on that part

   / Hydraulic Quick Attach
  • Thread Starter
#42

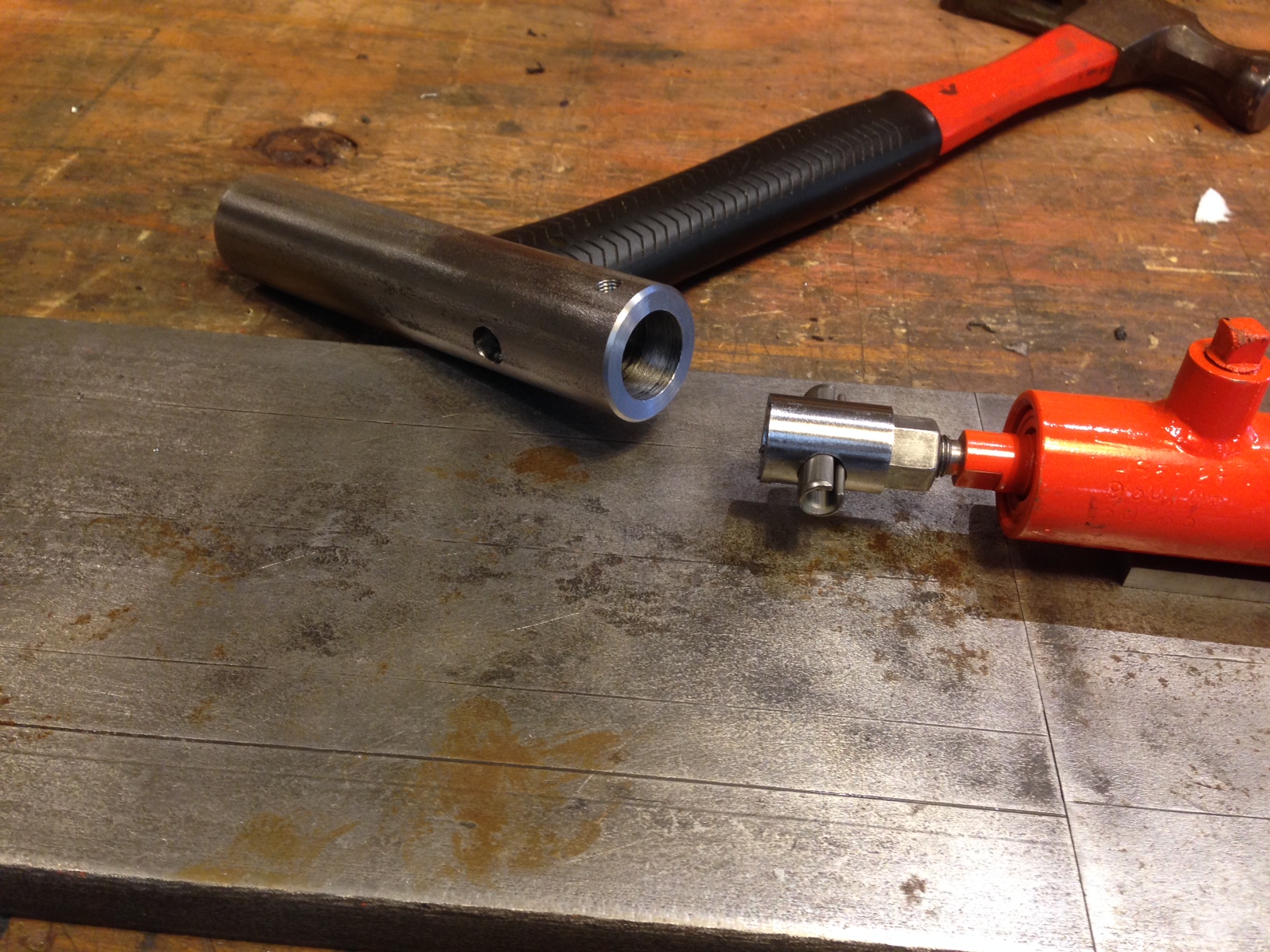

Here is a disassembled photo showing clevis screwed onto cylinder rod, and in relation to the hole drilled in the pin.


Attachments

  • mockup2.jpg
    743.2 KB · Views: 685
   / Hydraulic Quick Attach #44
Nice project. You will never regret the decision to use the SS QA... I built my own also, a little different in design than what you typically see but it works! (link in my signature). Some day I will get round to making mine remotely latched - I need a rotary actuator.

   / Hydraulic Quick Attach
  • Thread Starter
#45
mwb many thanks for the link. I am still studying your photos, tons of good ideas there. Very nice job.

   / Hydraulic Quick Attach
  • Thread Starter
#46

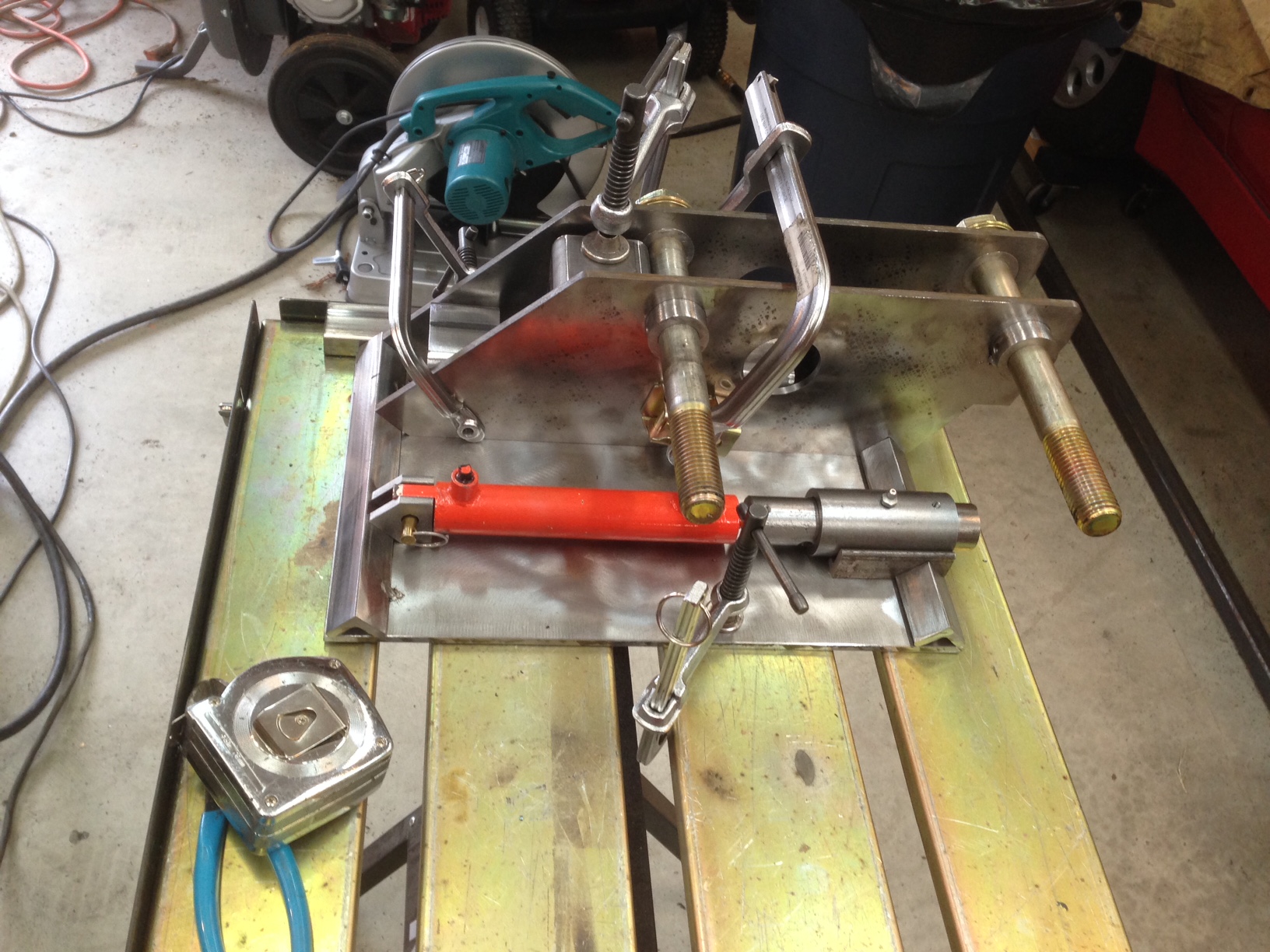

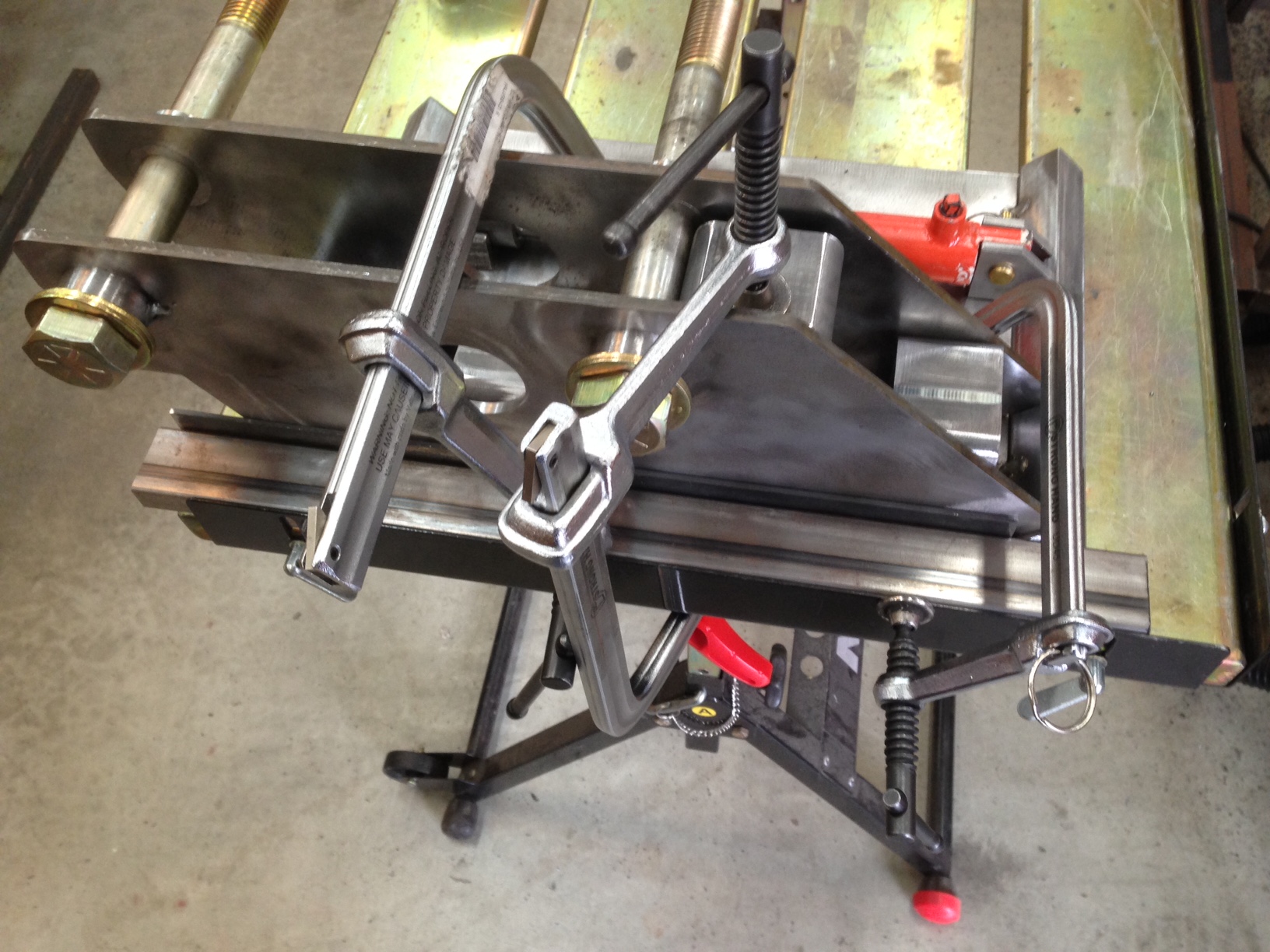

Got a day free to clean, tack and test fit the quick attach components. Should be able to finish it up after the weekend.


Attachments

  • foot2.jpg
    557.5 KB · Views: 476
  • foot3.jpg
    610.2 KB · Views: 543
   / Hydraulic Quick Attach
  • Thread Starter
#47
Got the main parts welded today.

Photo 1 - Showing the shoes/paddles/feet and torque tube (2"x.25" DOM).

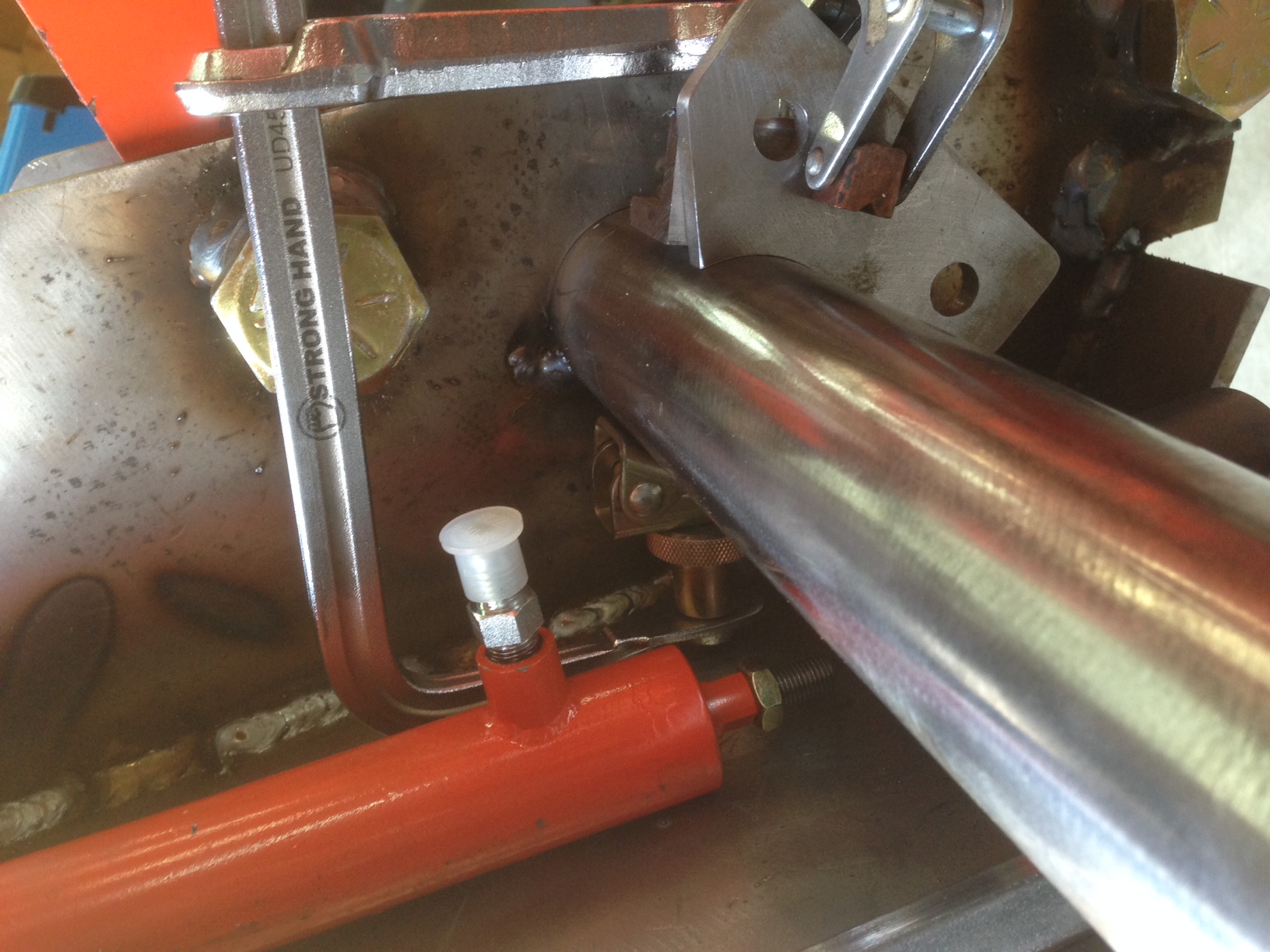

Photo 2 - The other side. Torque tube goes through all 4 side plates adding stiffness.
Photo 3 - Trying to figure best placement for hose brackets.

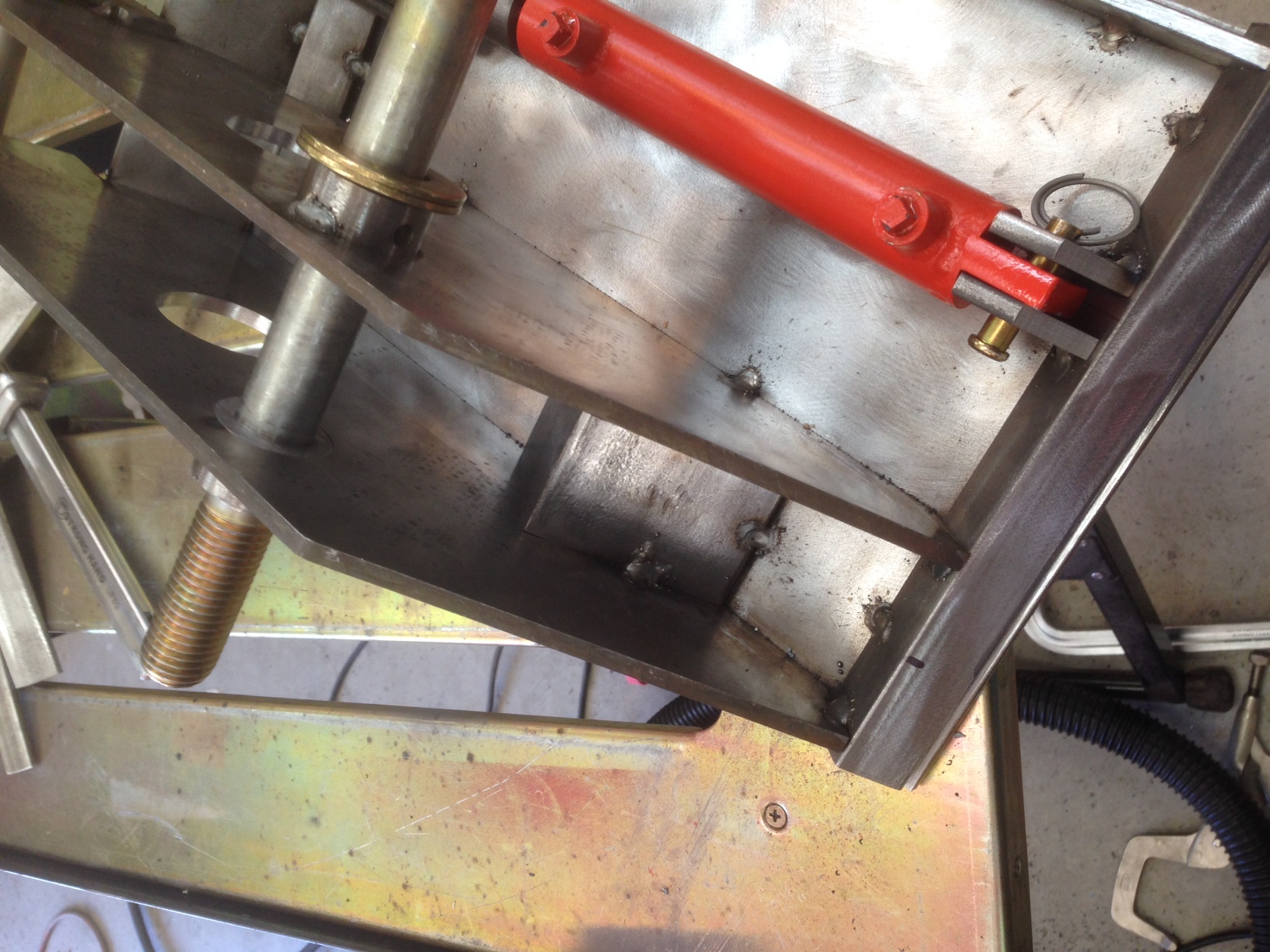

Photo 4 - A piece of 3"x.25" angle inside the ears ties together front plate and two side plates adding stiffness.

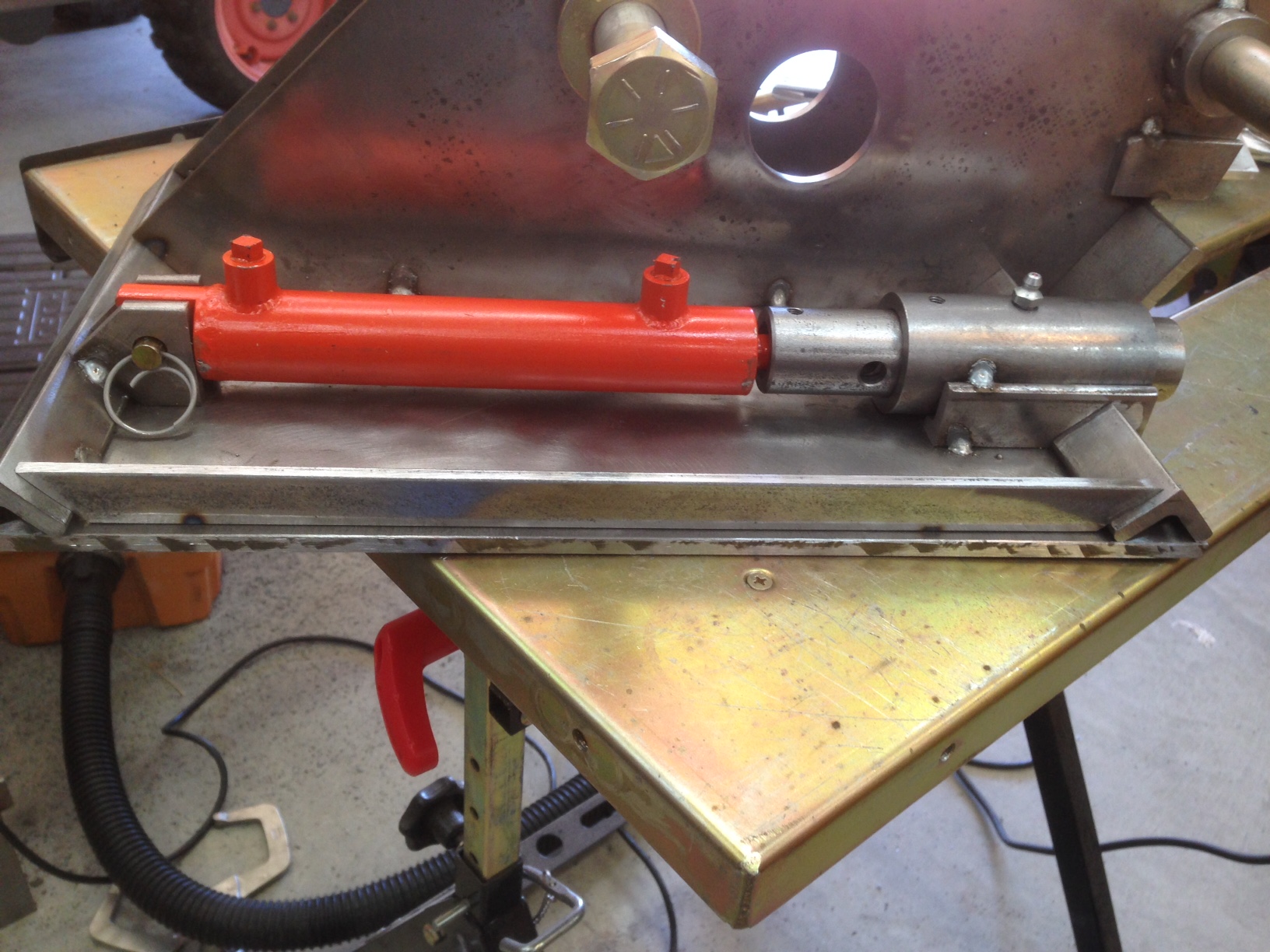

Photo 5 - Flat bar .75"x.25" adds stiffness.


Attachments

  • qa1.jpg
    469 KB · Views: 352
  • qa2.jpg
    665.4 KB · Views: 812
  • qa3.jpg
    534.8 KB · Views: 335
  • qa5.jpg
    614.7 KB · Views: 331
  • qa4.jpg
    551.7 KB · Views: 465
   / Hydraulic Quick Attach #48
How far is it from the pivot pins to the mounting plate? Perhaps it is just the perspective of the photos but it looks like you could have brought the bucket an inch or two closer.

   / Hydraulic Quick Attach #49
Looks like a gooder-un. :thumbsup:

   / Hydraulic Quick Attach
  • Thread Starter
#50
I have read that ssqa designs give up 4"-6" compared to pin-on designs. When I was doing the euro style quick attach, the distance from front plate to pin centerline was 3.5". That is about the minimum possible, given need to accommodate rotation of the loader arm tip behind the front plate. On this ssqa, that distance is 4.25". It is more because of the ssqa lower lip design. There is about 1/8" clearance between the loader arm tip and the lower lip as the mechanism rotates. I could have got back down to 3.5" by lowering the bucket in relation to the loader pin, making the lower ssqa lip below the loader arm. But, the vertical location is dictated by bucket design. There is about 5.25" between lower pin centerline and bottom of bucket, at ground level, on the factory bucket, and I wanted to have the same distance on the ssqa.
