Oil tank atv dump trailer

   / Oil tank atv dump trailer
  • Thread Starter
#41
So, I could see that the rear "lip" was going to need some support, so I added a little piece of angle iron




I didn't like how the tank would slam back and forth when opening and closing, so I dug a couple of old jeep shocks out from the shed to see what I could come up with. Idealy I'd have one mounted under the center... but with having lowered the frame it doesn't give me alot of room. This was just for mock up as they need new bushings and proper sized bolts.




Two problems became obvious right away; I wanted the shock to limit the dump once fully compressed... the shock body contacts the axle before this happens. That and the shock is difficult to extend, and easy to retract. The opposite of what I'd like it to do. Now, perhaps these are just wore... not sure if it's worth spending $100 on a new pair to find out. A shorter pair could move one of the mounting points and avoid contact with the axle.... hmmm.

   / Oil tank atv dump trailer #42
Hey, just stumbled on your newest project. Looking good!

   / Oil tank atv dump trailer #43
How about a piece of rubber where the frames come together?

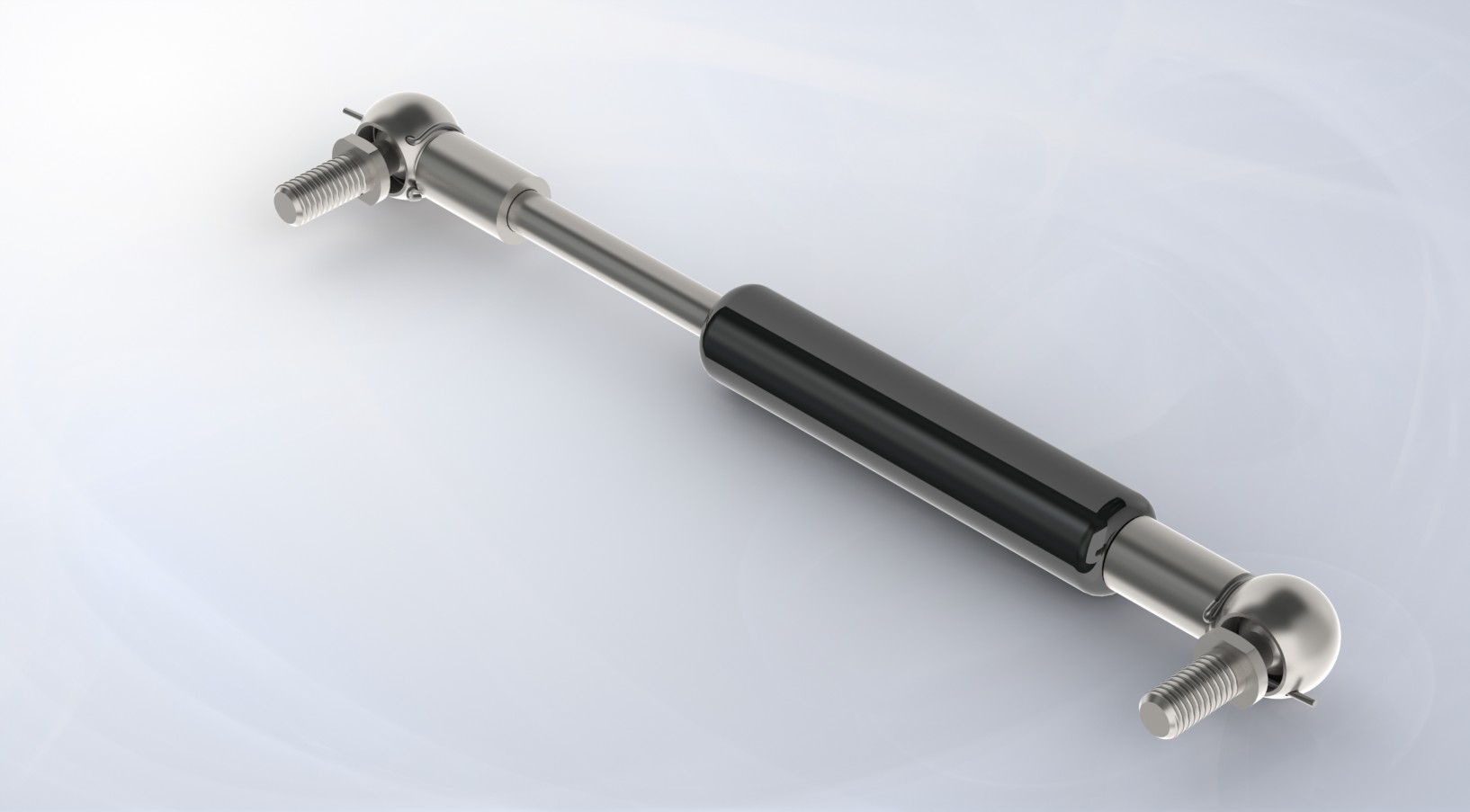

The geometry doesn't look good for the shocks. My Polaris Ranger uses a gas strut on the dump bed.

   / Oil tank atv dump trailer
  • Thread Starter
#44
I've thought about using truck bump stops at the back to stop it going passed 65deg or so... or using limit straps at the front. I think the bump stops would stress the hinges alot once they made contact... so that's out. I did buy the straps, just never mocked them up yet. They'd also take alot of force once taught. The though of the shocks is just to take the jarring out of slamming open and closed.

I know the geometry sucks. Ideal would be upright at the front... which could be a possibility if I want to mount the tops of the shocks on the tank... suppose that wouldn't be so bad. They look much cooler this way though ;)

   / Oil tank atv dump trailer
  • Thread Starter
#45
Ok, so I've kind of slacked off this passed week or so... had yet another flue... ah the joys of having a child in daycare.

Spent a whopping $30 on new shock bushings and galvanized (bad choice I realized after the fact) hardware.


Figured out a decent way to mount the shock(s)


test fit went well




Final (hopefully) disasembly


...and got as far as I could with the primer I had. LOL

   / Oil tank atv dump trailer #46
Looking good! Are you only going to have a shock on one side?

   / Oil tank atv dump trailer
  • Thread Starter
#47
Looking good! Are you only going to have a shock on one side?


Thanks! At first I planned to put both... but the one provides plenty of resistance... and I put it on that side because with the SXS I'll be getting out and dumping on that side. I'm a little worried using it as the dump stop may be bad... especially with a full load swinging back... but I've got the other as a spare... and I may scrounge up a couple more hinges so the twisting force isn't an issue. This kind of axes the idea that I'd be able to dump from the driver's seat. It does require a fair amount of force to get it started.

   / Oil tank atv dump trailer
  • Thread Starter
#48
Well this is my least favorite part of my projects, just because it takes forever... prime, dry for a day, flip, prime, dry for a day, paint, dry for a day.... well you get the idea.

My little helper made it a little more fun... and she seemed to enjoy it alot.


she only got a little on her forearms. :)

   / Oil tank atv dump trailer #49
Clever painting smock. :thumbsup:

   / Oil tank atv dump trailer #50
Hmmm. If it takes a lot of force to get it started up, then I guess my thought that the cylinder could eventually be replaced with a hydraulic or electric dump cylinder wouldn't work.
