Anyone using sketchup?

[Rustyiron]

I sure would like to learn some type of cad, but Me & computers........

more my speed :laughing:, "wireless" as well.



[brokenknee]

Their is a big learning curve. The plug-ins, while nice, won稚 be your limiter for some time. Get into the program and figure out how to do the basics. Then you can start to customize the layout of the toolbar etc. IE someone who is doing lighting will have it setup totally different than someone who is building cabinets. Once you get all of that figured out then you can start to add plug-ins as need for a specific need or task.
My wife痴 architecture firm is all CAD. Each of her drafters has theirs set up different- it just depends on how they like it.

I agree about the learning curve. I think I have about 20+ hours into it now and just getting the basics down. I read somewhere were the guy said he was able to MASTER it in about 40 hours. I guess i am just not that quick of learner. I started with my nephews deck and I learned a lot from that. He has yet to bring it to the permit office so will have to see what if anything I need to change.

The thing about the deck I wish I would have assigned layers to it so I could have printed out the different views. What I did was just copy the drawing and saved it as its own file. While this worked anything that I changed of one file I had to remember to go back to the other file and change it so it matched. Still trying to figure out the layer thing but slowly getting it down.

U-tube is great but you need to watch from more than one channel as others have there own way of doing things so you pick which works the best for you. I connected a second monitor to my laptop and would follow along, pause and rewind as needed (which was a lot). This worked for me. I did get frustrating at times as some times I could just not figure out what I was doing wrong. It usually turned out I was grabbing the component at the wrong location, grabbed the wrong tool or was on the wrong plan. My biggest mistake in the beginning was just clicking on the item without selecting it all.

I do believe this will be a great tool and worth the time to learn. Although frustrating at times, once you get the basics down and are able to see the tip of what it is capable of doing I think it will be time well spent learning it.



[brokenknee]

I use sketchup for every large project, as well as some small ones. I laid out some picture frames quickly for some custom prints my wife ordered. It made cutting and sizing the stock very easy.

I agree with learning to use components...it is a great tool. You will learn the shortcut keys quickly too so you can go from moving an object, to orbiting around, to drawing, etc, very quickly.

Some of the larger projects I planned in sketchup

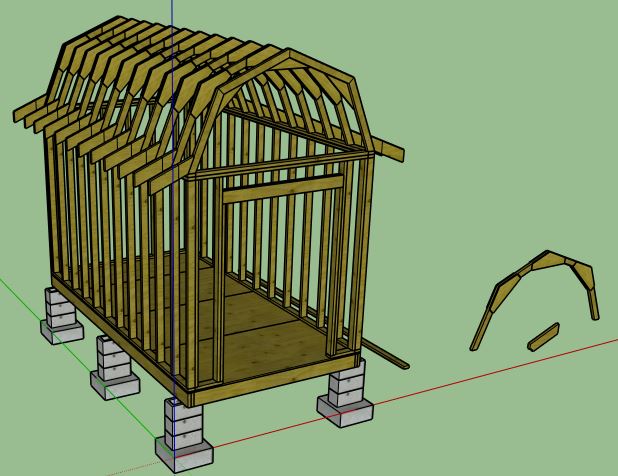

Shed plans:
View attachment 526725

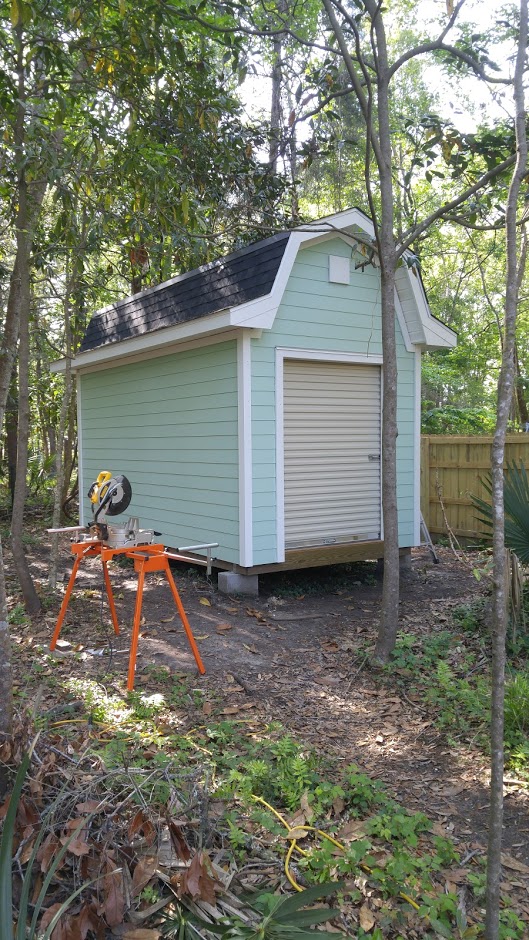

Complete shed:
View attachment 526726

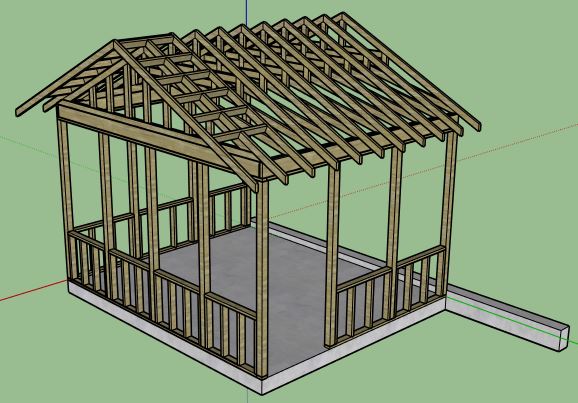

Porch Plans:
View attachment 526724

-Joe

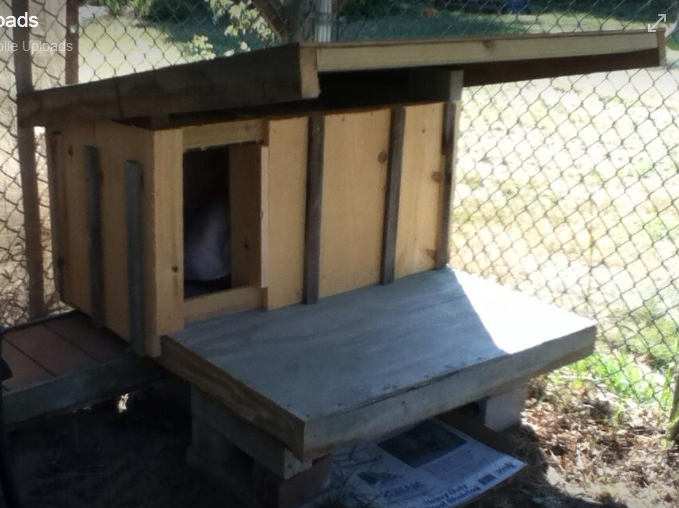

For small projects from just a quick sketch to build:

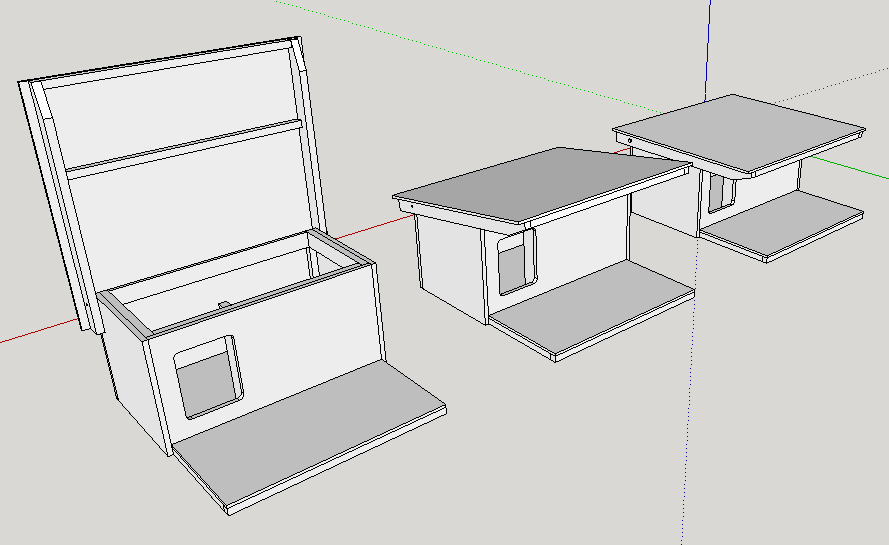

View attachment 526801 View attachment 526800

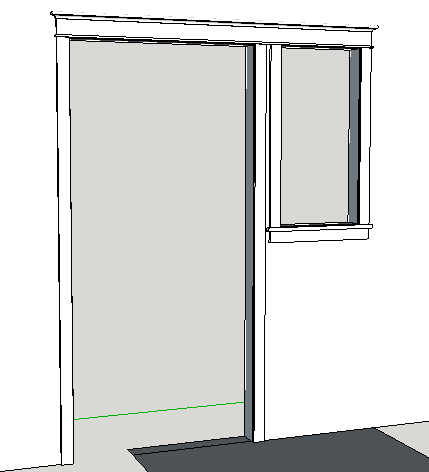

View attachment 526803 View attachment 526802

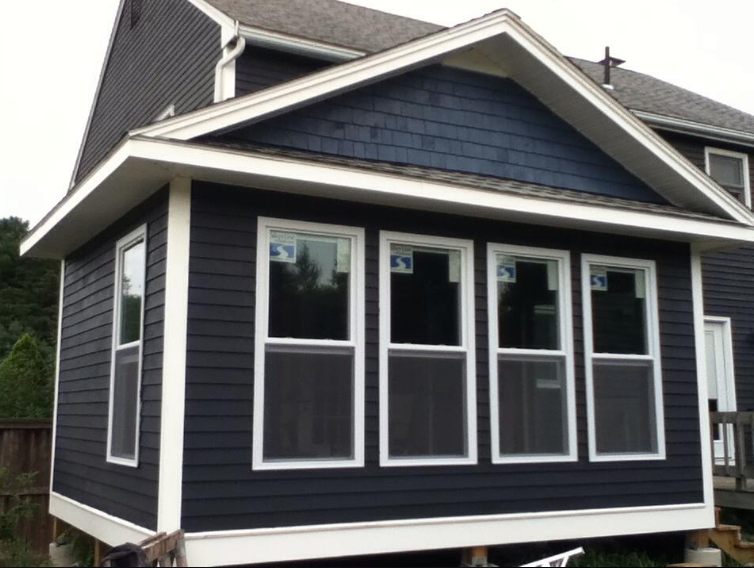

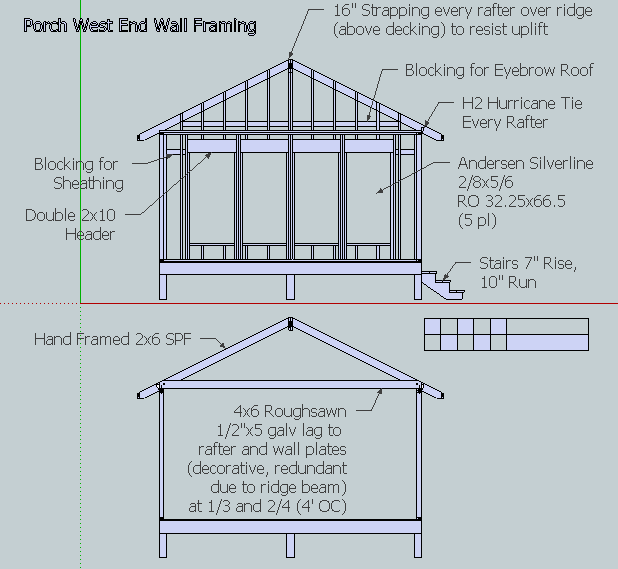

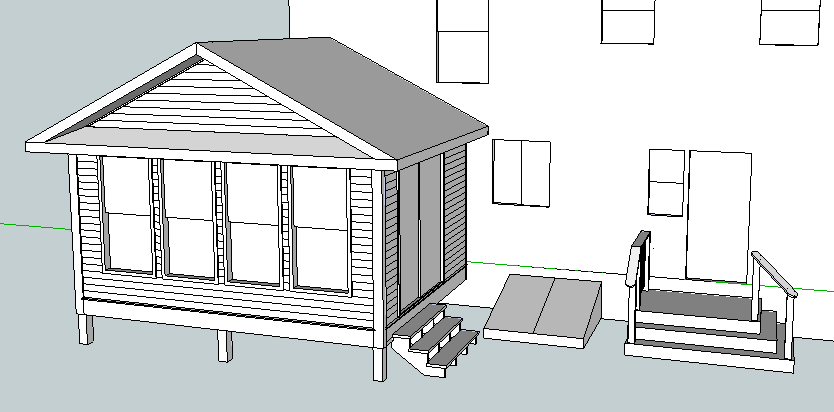

...to bigger ones, after countless hours of fussing, including making all the plan sketches for permits:

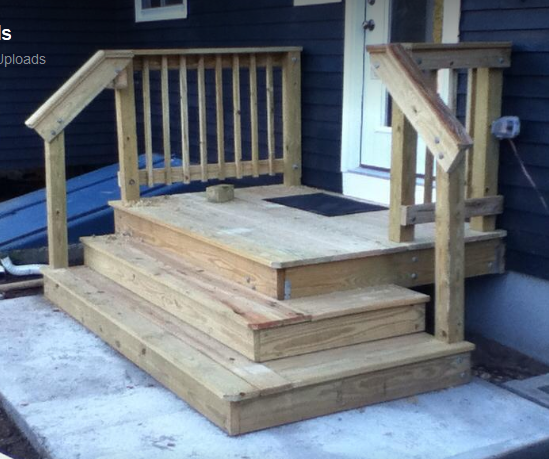

View attachment 526805 View attachment 526810 View attachment 526809 View attachment 526804

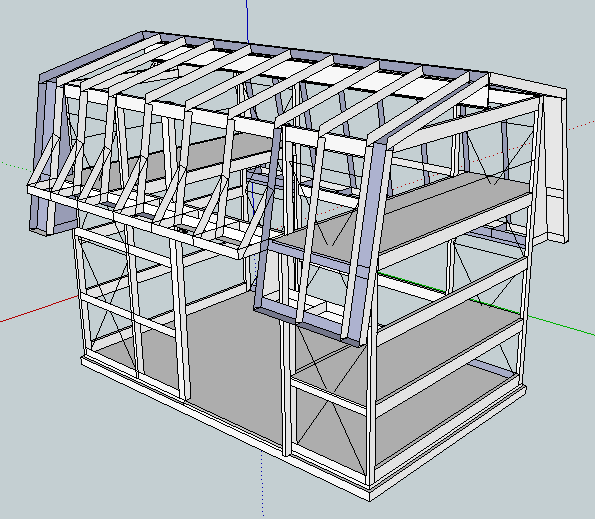

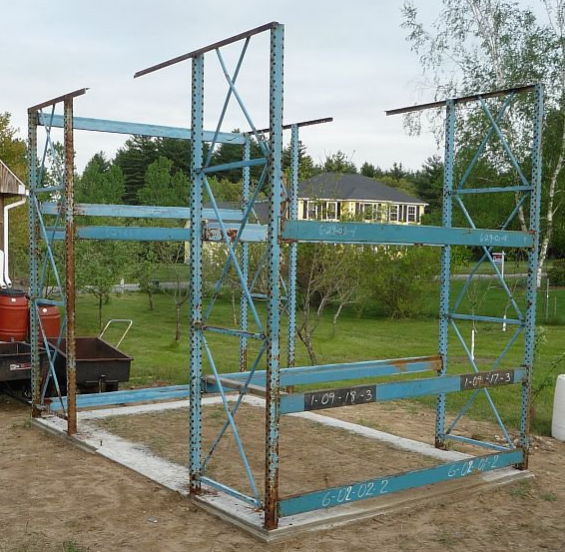

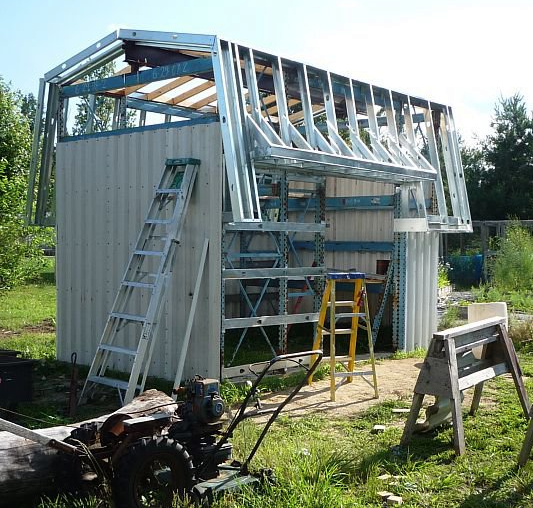

View attachment 526808 View attachment 526806 View attachment 526807

Thanks to both of you for posting your sketches and the finished product. You can really get an idea what it is going to look like from the sketch.

The permit process is what brought me into this software to begin with (for my nephew). When I lived in Clear-water county I put an addition on my house similar to your sketch, no permits required, now from what i understand I will need a permit to put up a chicken coop, go figure.



[paulsharvey]

I have messed with SketchUp free version somewhat and for me the most convenient thing is it's easy to import Google Earth images and draw on top of them



[RNeumann]

40 hours to master.....the bs meter is pinging off the scale!! Don’t feel bad. It’s going to take some time.
The wife hires folks with at least a few years under their belts and no one comes to the table as a master. They are all learning new things all the time. Her last few assistants have gradually gotten into the program. After a few months of tinkering every week (say 5 hours or so) plus the tutorials they could do the basic red lines (changes to notes etc) and make prints. That’s with other folks in the office to ask questions of as needed. She is on Vectorworks but most CAD programs are similar- including sketchup.



[ProjectKing]

Sketchup is good for woodworking projects and some house design stuff. But it is very lacking when doing machine design solid modeling. I prefer Inventor, Solid Works, Fusion 360, etc etc.



[prichard]

Curious how many of you using it are running free vs paid version? I have only worked a little with the free version. Any real differences in the paid version that would make you suggest paying before learning?



[GLyford]

I use the free version and have not felt the need to upgrade yet.

I also am in the middle of learning FreeCAD because it is supposed to be better at converting to CNC. Haven't finished the router, so I don't know how true that is.

For some reason I find Fusion 360 annoying. Haven't used Autocad/autodesk much since about R14.



[brokenknee]

Here is PDFs of my first project. I think I must have about 12 to 15 hours into it. This is the first time I ever used it. I would love to "master it" but I know that will never happen. For my uses I don't think I will ever need that level of expertise. It is satisfying to see the project on paper before the actual build. I is also nice to have all measurements and the minor details worked out a head of time.View attachment Sams deck front view Legal paper.pdfView attachment Sams deck load calculations.pdfView attachment Sams deck top view Legal.pdf



[brokenknee]

I just realized I forgot to add the floor joist bracing in the plans. Not sure if my nephew brought these in yet to be reviewed by the city but from what I understand they will most likely make me add them to the plan. I know they told him they will not except any plans without the grid. The grid i found in the extension library so it was easy to add once I downloaded the extension.

@prichard, I would not be the one to ask about the free verses paid version. I figure it will be a long time before I learn the free version well enough to advance to the paid version. I think the basic projects that I will be doing the free version will be fine. I have seen this question asked before on other forums and most respond by saying the free version is all they feel they need.
