Yanmar 186D broken shaft
- Thread starter ajaukema
- Start date
- Views: 18736
-
- Tags
- yanmar 186d
Green!
California
Super Star Member
- Joined
- Jan 22, 2004
- Messages
- 14,951
- Location
- An hour north of San Francisco
- Tractor
- Yanmar YM240 Yanmar YM186D
Whew, glad I asked.
See attached. and especially sections 15 to about 20.
Wish there was something better. It's all I have on this hard to get info machine. :2cents:
Green??? I didn't know there ever was a green YM186. That 'Old" manual shows only red hood and fenders.
Mid 70's YM1500 came in Green (Early) or Red(late) versions and there are differences, stamped vs cast bell housing for example.
OP, is that really a YM186D with original factory green hood and fenders? Maybe its a rare collectible!
rScotty
Super Member
- Joined
- Apr 21, 2001
- Messages
- 9,565
- Location
- Rural mountains - Colorado
- Tractor
- Kubota M59, JD530, JD310SG. Restoring Yanmar YM165D
There's what looks to be part of a YM186/D shop manual for your tractor in the preferred red plastic cover version for sale right now on ebay. But I doubt it is a complete copy. I say incomplete because it just isn't thick enough. I have several of those in my library and the entire manual is a good 3" or 4" thick. The one on ebay looks to be only an inch or less. So be careful. These are not bound, they are loose-leaf binders so that they can be updated.
Yanmar USA was a real good company. Everything top notch....that's probably why JD bought them out.
YM186, YM186D YANMAR Shop Service Manual | eBay
Like all these OEM US manuals, this one should have extensive pages (in section 40 and 240) on trouble-shooting the electrics. Plus a dozen schematics showing electrical flow in all of the various voltage regulator/alternator configurations as it regulates the charging voltage.
The condition doesn't look all that good. The price is what I have paid over the last few decades for these red plastic OEM Yanmar shop manuals - though in far better condition, thick and complete. In fact, I think they cost pretty close to $100 back when you could buy a YM186D new at the dealers.

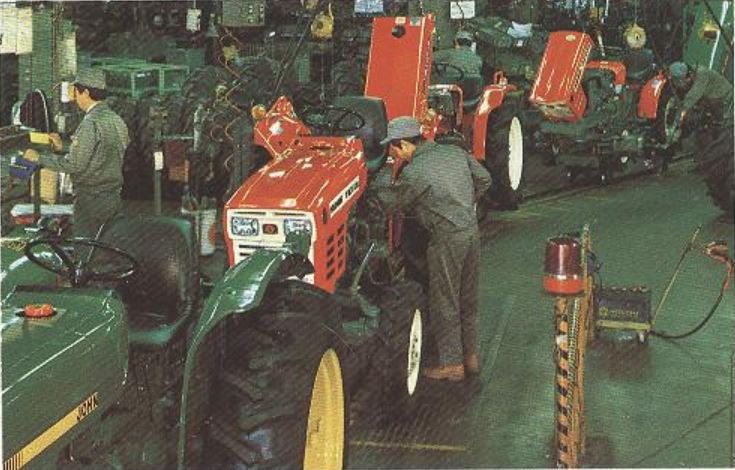

No, I've never seen a green 186. In fact, I've never seen a powershift green Yanmar. Not sure they were made that way. I have seen photos of JD and Yanmars being built on the same assembly line.
rScotty
Yanmar USA was a real good company. Everything top notch....that's probably why JD bought them out.
YM186, YM186D YANMAR Shop Service Manual | eBay
Like all these OEM US manuals, this one should have extensive pages (in section 40 and 240) on trouble-shooting the electrics. Plus a dozen schematics showing electrical flow in all of the various voltage regulator/alternator configurations as it regulates the charging voltage.
The condition doesn't look all that good. The price is what I have paid over the last few decades for these red plastic OEM Yanmar shop manuals - though in far better condition, thick and complete. In fact, I think they cost pretty close to $100 back when you could buy a YM186D new at the dealers.
No, I've never seen a green 186. In fact, I've never seen a powershift green Yanmar. Not sure they were made that way. I have seen photos of JD and Yanmars being built on the same assembly line.
rScotty
rScotty
Super Member
- Joined
- Apr 21, 2001
- Messages
- 9,565
- Location
- Rural mountains - Colorado
- Tractor
- Kubota M59, JD530, JD310SG. Restoring Yanmar YM165D

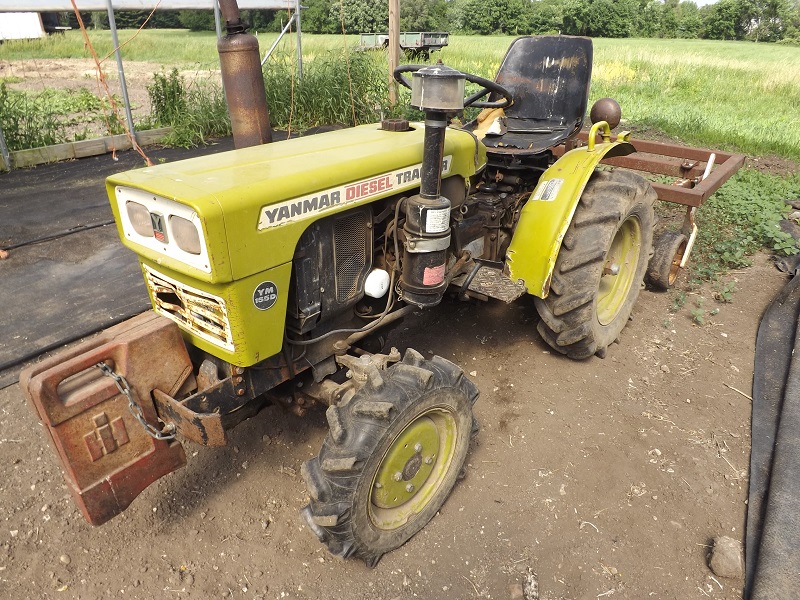

Yes, that's the famous lime green of the early Yanmars. As far as I know all the Ym155s were green. I lot of folks don't know that the YM155 became the YM165 when the models changed to Red.
What I was saying is that Yanmar made their early line of green Hi/Low range sliding gear tractors from the YM135 right up to the YM330s. But none of those was a powershift, and as far as I know, ALL of the YM186 were powershifts - 3 fwd+1 Rev. with a sliding gear range selector.
rScotty
rScotty
Super Member
- Joined
- Apr 21, 2001
- Messages
- 9,565
- Location
- Rural mountains - Colorado
- Tractor
- Kubota M59, JD530, JD310SG. Restoring Yanmar YM165D
When that photo originally came out it was in a Yanmar company in-house journal. It was a big deal back then, and made for quite a lot of chatter at the time. JD especially didn't like the publicity - it was seen as arrogance - and may even have been part of what led to the demise of the US Yanmar dealer franchises. Those were simpler times, and the fact that JD was selling Japanese built tractors re-badged as John Deeres was not popular with tradtional JD supporters. In fact, there were some who flatly denied it.....probably still are.
So that simple picture had a big impact.
rScotty
California
Super Star Member
- Joined
- Jan 22, 2004
- Messages
- 14,951
- Location
- An hour north of San Francisco
- Tractor
- Yanmar YM240 Yanmar YM186D
I recently bought on Ebay a CD/download that is a truncated version of that excellent YM186D Service Manual. The CD turned out to be 'YM186 Tractor Workshop Overhaul Manual.pdf' and it seems to be the same as the engine and driveline portions of the Service Manual but missing the hydraulics or electric chapters. Worth the $10 if you don't need those topics. It's 308 pdf pages.The index in the left margin is bogus, it covers the Powershift internals, then up to page 45 for the engine (piston rings), ends there. But the subsequent manual pages seem to be all there despite the truncated index.
I have the Hoye reprint of the real Service manual. For the limited topics that it covers, the pages in this CD appear to be identical.
Did Yanmar ever issue separate repair manuals for 1) Engine/driveline, 2) Hydraulics, 3) Electric, for YM186? This Ebay CD seems to be an authentic copy of the first, then with a poorly researched index. Now today I see another vendor offers the same CD. Caveat Emptor.
rScotty
Super Member
- Joined
- Apr 21, 2001
- Messages
- 9,565
- Location
- Rural mountains - Colorado
- Tractor
- Kubota M59, JD530, JD310SG. Restoring Yanmar YM165D
Not separate ones that I know of. But they did produce some general booklets on electronicals and hydraulics. Similar to what JD was publishing as their FOS - Fundamentals Of Service - series. But the Yanmar was more techincal.
And along about the same time they did produce an early soft bound version of a shop manual for the YM186 - if I remember right, it had a sort of greenish gold two-tone cover. I'll look tomorrow to see if I have one. It was not nearly so complete as the later red plastic binder that they settled on using with the loose leaf format. Some of those have really excellent artwork in the exploded diagrams. Up until Yanmar (and JD) The older type shop manuals were kind of afterthoughts. Most were hard to make out and featured rather poor quality photos instead of hand drawings.
I've often thought that one of the things that makes parts manuals so useful to the mechanic is the hand drawings.
rScotty
