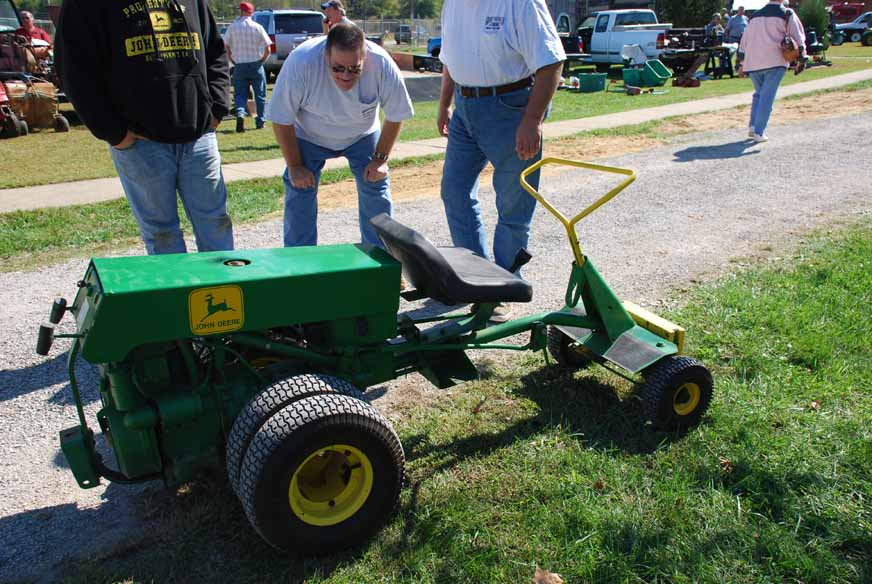

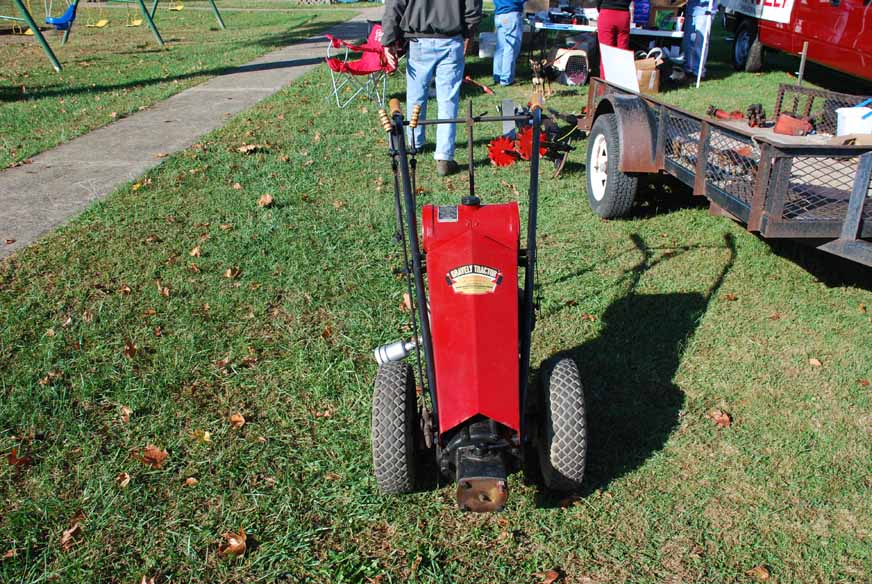

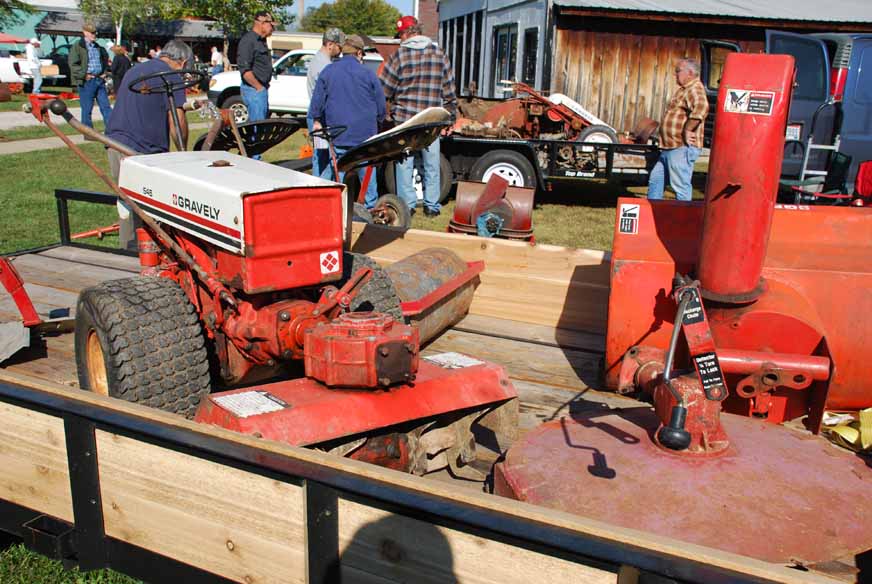

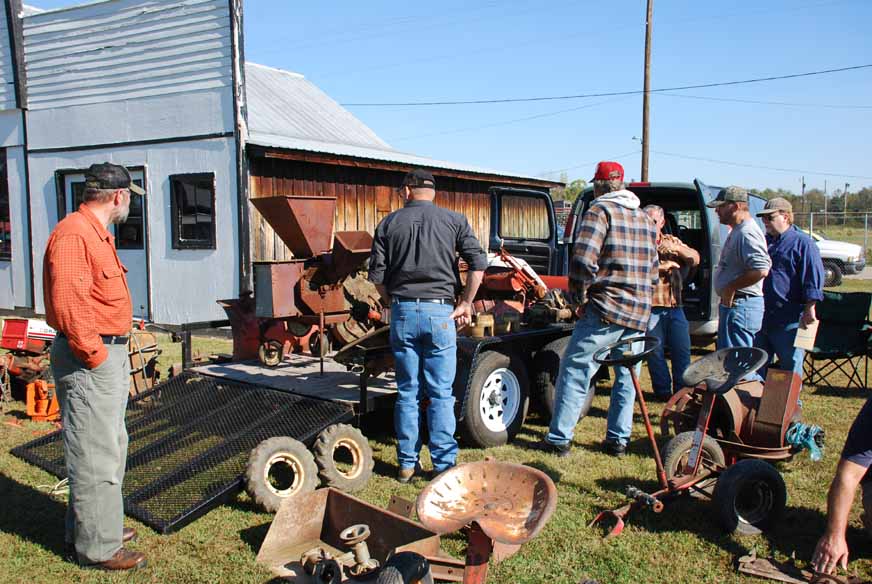

Here is some pic from Richards


Attachments

  • DSC_3045e.jpg
    72.6 KB · Views: 195
  • DSC_3058e.jpg
    84.5 KB · Views: 224
  • DSC_3057e.jpg
    87.4 KB · Views: 191
  • DSC_3064e.jpg
    78.1 KB · Views: 189
  • DSC_3068e.jpg
    100 KB · Views: 202
  • DSC_3073e.jpg
    92.4 KB · Views: 219
  • DSC_3077e.jpg
    80.4 KB · Views: 205
  • DSC_3042e.jpg
    124.2 KB · Views: 201
  • DSC_3088e.jpg
    74.8 KB · Views: 194
  • DSC_3082e.jpg
    80.5 KB · Views: 198
   / Engine ideas #262
The Weather looks Good this week end.:thumbsup:


Well Hope to see you all Sat Oct 9 Th or Sunday Oct 10


The HIWASSEE VALLEY ANTIQUE TRACTOR meet the second week end of Oct .

So this year look like 9 and 10 Oct 2010.

We meet at Charleston TN city Park

Charleston is about 70 Miles south of Knoxville

Exit 33 on I 75.

From Chattanooga Tn is about 30 miles

There is a trailer park

at exit 33

The motels are about 5 to 10 miles at Exit 27 At I 75

   / Engine ideas #263

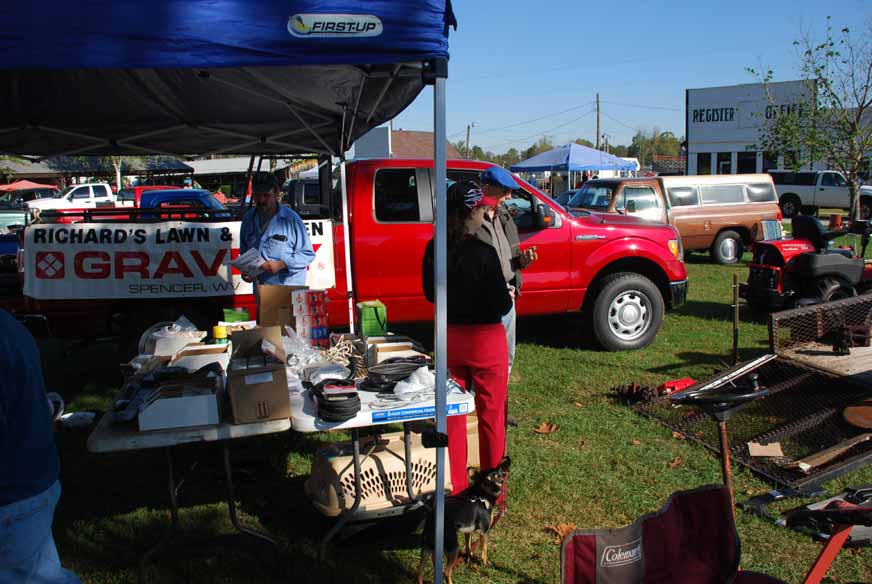

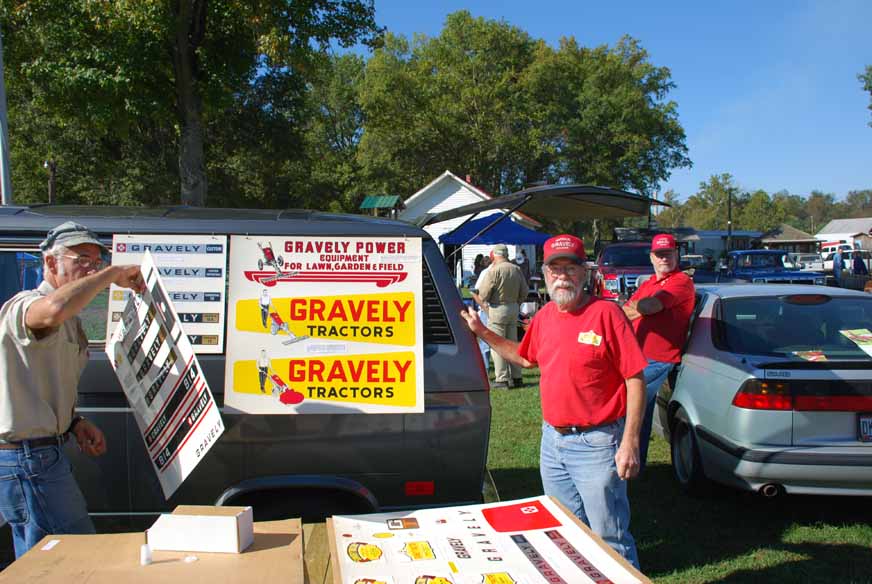

Nice pictures Bruce. The first one is Richards 'booth'. Just to the right is a trailer where he had a large circular saw blade (used) he was trying to sell along with a log splitter attachment. Another guy there had a stump grinder attachment for sale. For those of you who have never seen the log splitter or stump grinder in action there are videos of them on you-tube. Dont have links but type in Gravely and search. The videos are amazing - the Gravely makes quick work of logs and stumps!

   / Engine ideas #265
what time did you get there?
I got about 10: 30 to 2:30.
Did I get any Pic of you?

Got there at 1:15. Kept asking people if you were there. Everyone told me you were there in the morning. They looked around but didn't see you. I was wearing an organge Tennessee football t-shirt. Next time will have to get your cell number and call when I get there. I stayed a couple of hours.

   / Engine ideas #266

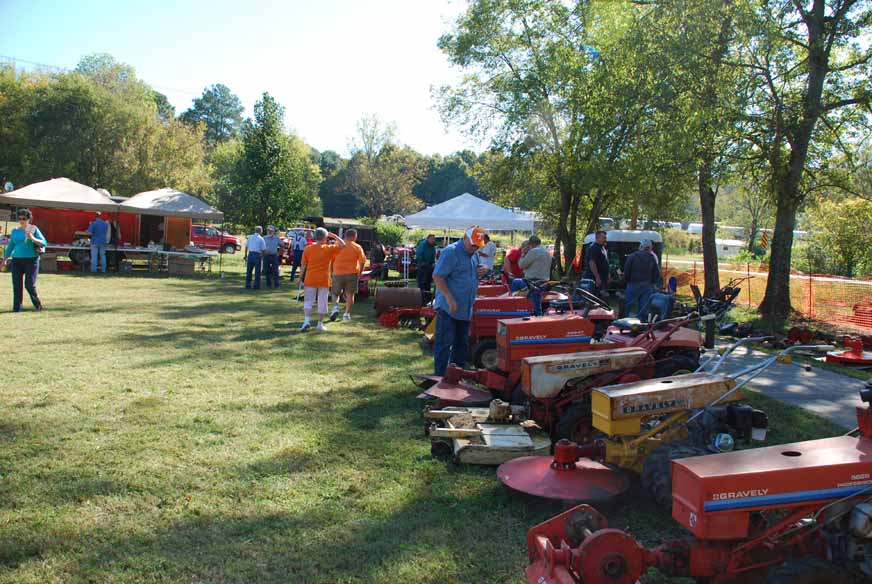

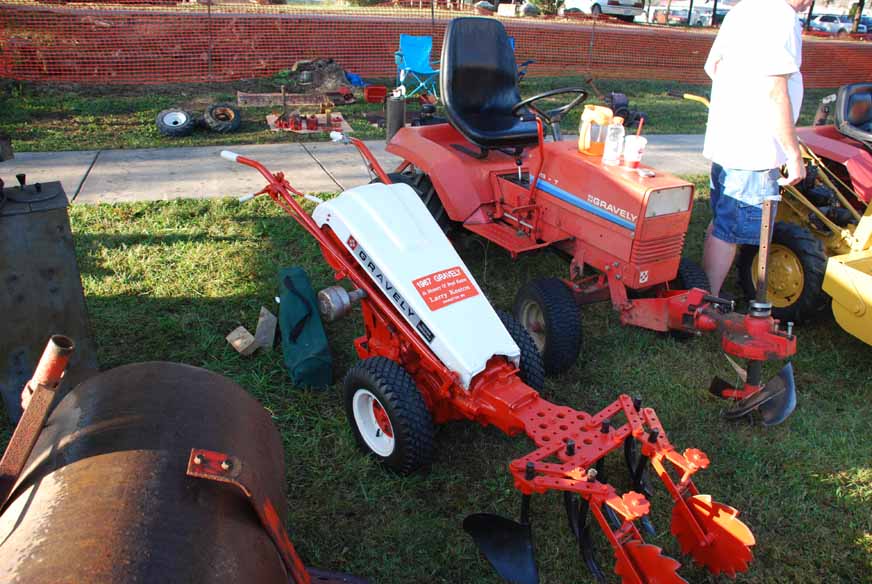

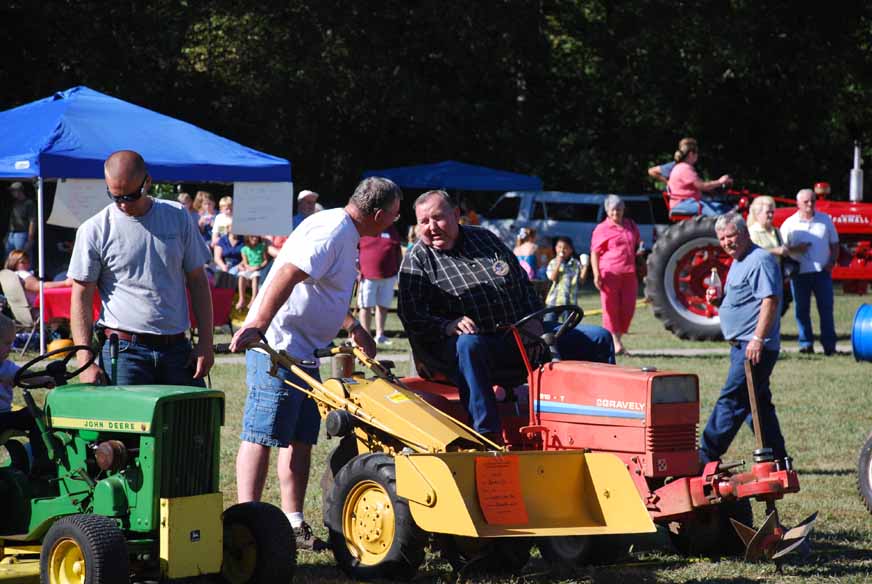

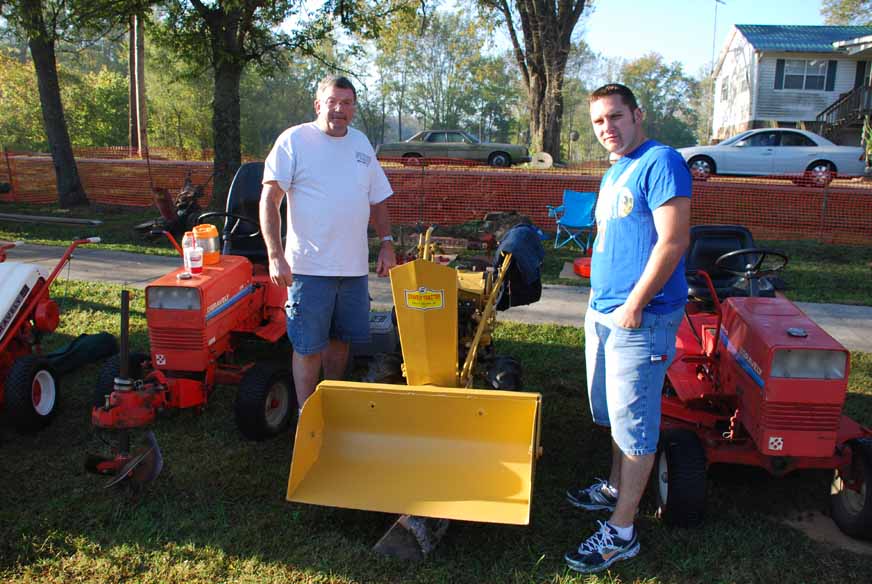

We Had a great week end at the Southern get together.
Here is some pictures


Attachments

  • DSC_3218e.jpg
    81.5 KB · Views: 206
  • DSC_3216e.jpg
    78.5 KB · Views: 190
  • DSC_3232e.jpg
    72.4 KB · Views: 174
  • DSC_3241e.jpg
    93.4 KB · Views: 204
  • DSC_3293e.jpg
    75.8 KB · Views: 185
  • DSC_3308e.jpg
    71.6 KB · Views: 201
   / Engine ideas #267
Hi Guys
I finally got a gear done for the L model that I think will work.
I will use a top hat or bushing on the end like Gravely uses
on the late model.
I took a gear Martin S1015
and a 1 inch coupling bored the coupling out left about .002 small.
Pressed the gear hub into the coupling with a key all ready in coupling .
Welded them together.
Bored the gear end out so engine crank shaft can go all way through.
Also machined a pocket in the gear end for the top hat to fit.
Machined off to fit on the engine shaft length.
Now all I like is having it harden.
and make the top hat and have it harden. :thumbsup:

Well finally I got my print done and have been trying to get prices.

Last edited:
   / Engine ideas #268
I finally got the print done so now to get prices
I am getting made out of 4140 steel 1 piece no welding
Hardened and ground inside and out
Looks like it will run about 125. to 150.


Attachments

  • 045 GRAVELY MODEL L & C10 INPUT GEAR.pdf
    146.3 KB · Views: 411
Last edited:
   / Engine ideas #269
I finally got the print done so now to get prices
I am getting made out of 4140 steel 1 piece no welding
Hardened and ground inside and out
Looks like it will run about 125. to 150.

Hey Bruce - would you still need the 'top hat' with this or is it all one piece?

   / Engine ideas #270
Yes there are 4 pieces.
1. Top Hat
2.Gear is 3.00 inches long
3. Spacer 1.590 thick
For $250.00 plus it was higher then I hoped for.
4 . Kohler adapter .500 thick
I am suppose to have 10 each gears Friday week.
Made whole from 4140 steel hardened and ground
